ITC T-6207S Public Address System Stereo 8*8 Audio Matrixs with RCA

* 8 dual RCA input and 8 dual RCA output

* Each output volume control on front panel or through remote panel

* Memory of previous setting

* Mic input with VOX priority

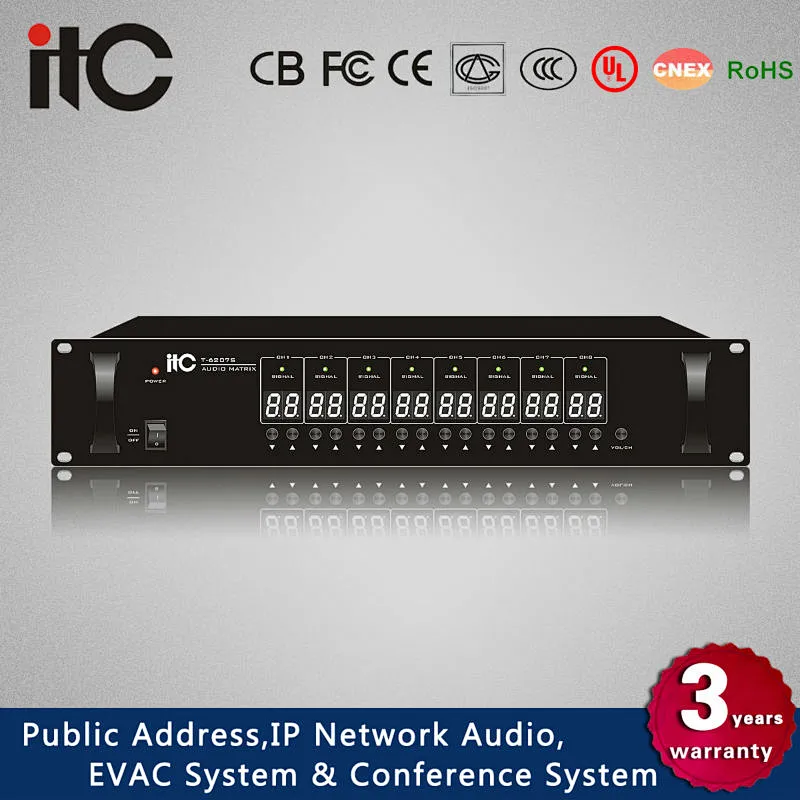

ITC T-6207S Public Address System Stereo 8*8 Audio Matrixs with RCA

The T-6207S is a versatile 8 inputs by 8 outputs stereo audio matrix system. It is suitable for high level sound quality needed applications like in office, hotel, conference room and theme bar. This matrix makes it possible to play 8 sources into 8 zones simultaneously. The matrix with 8 channel dual-bit digital LCD display the sources number and 0-31 volume level. Each channel is designed to be with LED indicators. Up and down function buttons are equipped for each 8 channel, the volume and source swtich is placed on the front panel. Memory function of source and volume setting after power off make it easier for repeatable operation. Mic input on rear panel by 1/4"phone jack type with VOX over other inputs, a volume control for the mic is also available. There are 8 dual RCA inputs and 8 dual RCA outputs. The RJ45 control port communicates with the remote control panel through CAT 5 cable. The ground lifter helps to avoid noise when connection with ground line. The matrix could work together with one main remote control panel and 8 user panels. Each 8 panel could easily select and broadcast different sources in its own zone. The T-6207 stereo audio matrix works together with T-6240S (8 channel stereo mixer) and

4 channel power amplifier as a complete stereo matrix music system for commercial and industrial use.
