- Place of Origin:CN;GUA
- Model Number:T-6247
- Brand Name:ITC
- Certification:CE, RoHS, CCC, IEC, EMC, ISO9001, ISO14001
- Output Level:0dBm(775mV)
- THD:0.05%
- Frequency Response:100Hz~18KHz
- Power Supply:~110V/60Hz or~230V/50Hz & DC 24V
- Power Consumption:15W
T-6247

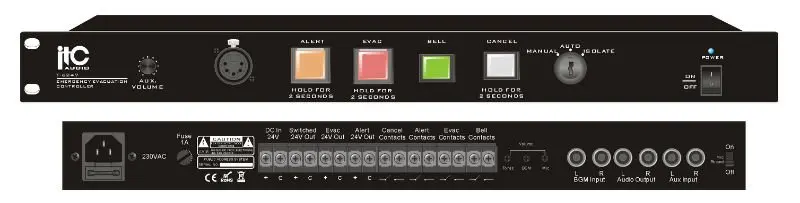

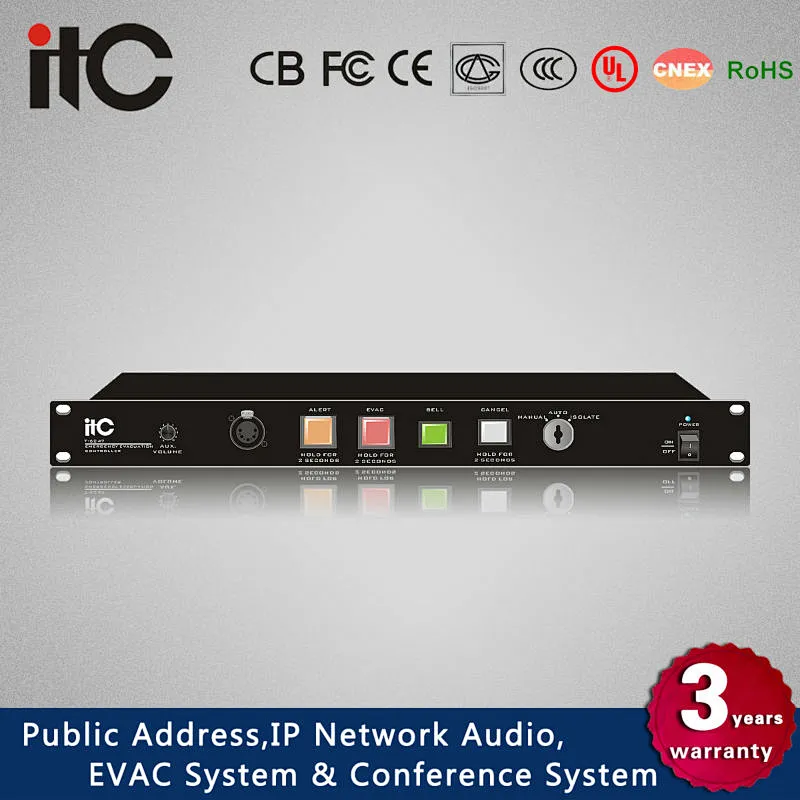

Emergency Evacuation Controller for PA System T-6247
Description
This easy to install controller features Auto, Manual, and Isolate modes, selectable via the
key switch. When selected to the Auto position the panel will respond to any signal received
from the buildings Fire Indicator Board(FIB), This signal then activates the alert tone. If,
after a pre-set time this condition has not been attended to, the panel will change to the
evacuation mode. The evacuation tone will continue to sound until the panel has been reset.
In the manual position any of the functions may be initiated from the front panel controls.
This isolates the unit so that the alert, evacuation and bell tones will not function.
Provisions have been made for BGM source to be played through the controller. BGM is
automatically muted when any other function is operated.
A microphone input has been included on the front panel. This can be used for either general
or emergency paging. The Voice Over Message can be recorded by setting the rear panel
Mic Record switch to ON, the message can be any length from 1 to 20 seconds.
Feature
* Stand alone control unit.
* Interfaces with Fire Indicator Boards.
* Remote operation of Alert, Evac, Chime & Cancel tones.
* Auto / Manual / Isolate keyswitch.
* Local operation of Alert, Evac and PA.
* Provision for voice over message.
* Microphone socket for PA use.
* Provision for BGM.
* Switched DC 24V output for override relays on volume controls.
* Switched DC 24V output for strobe operation for Alert mode.
* Switched DC 24V output for strobe operation Evac mode.
* On-board timer for remote alert activation adjustable from 30secs to 7.5min in 30second
increments.
* Auxiliary level output.
* Suitable for any amplifier with an auxiliary input.
* Can be used as a standard PA system.
Specification
Model | T-6247 |
Output Level | 0dBm(775mV) |
THD | 0.05% |
Frequency Response | 100Hz~18KHz |
S/N Ratio | Aux/Music Input -85dB Alert/Evac/Chime -70dB |
Input Sensitivity | MIC 5mV Balanced BGM/Aux Input 350mV Unbalanced |
Power Supply | ~110V/60Hz or~230V/50Hz & DC 24V |
Power Consumption | 15W |
Weight | 2.5Kg |
Dimensions | 484x209x44mm |
