- Place of Origin:CN;GUA
- Model Number:T-774/T-775/T-776
- Brand Name:ITC
- Type:Passive
- Channels:2 (2.0)
- Use:Public Address
- Rated Input Power:10W/15W/25W
- Max Input Power:15W/20W/30W
- Line Input:100V & 70V
- Connection:Red/Black Screw Terminal
- Frequency Response:120-15kHz/130-15KHz/130-15KHz
- Sensitivity:92dB/94dB/95dB
- Enclosure:ABS, Waterproof
- Grill & Bracket:Stainless Mental
- IP Degree:IP54
- G.W.:4.7kg/5.6kg/7.6kg

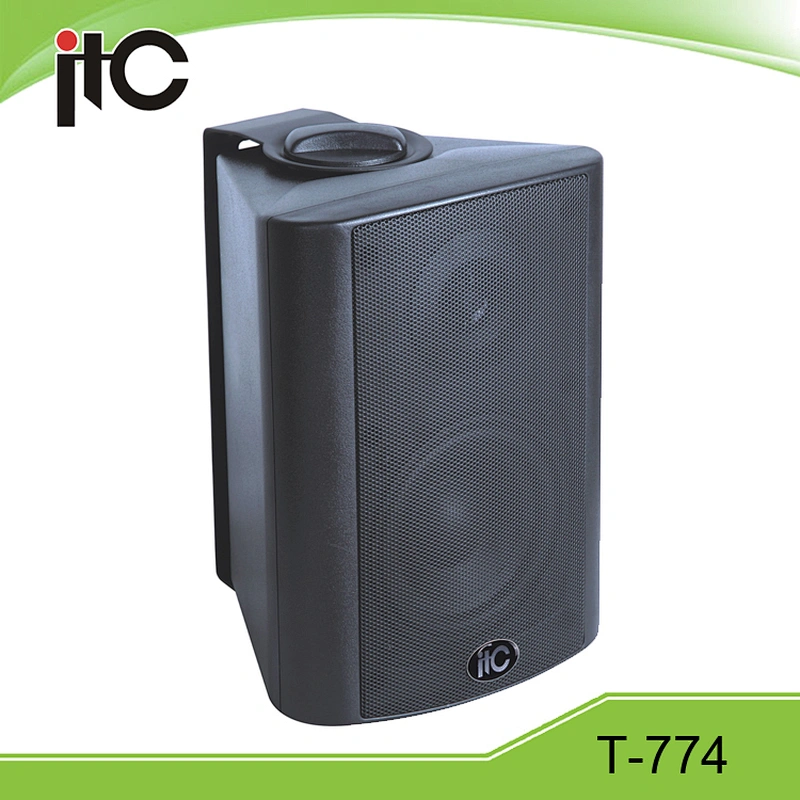

ITC T-774 Series Classical 10W/15W/25W 2.0 Stereo IP56 Waterproof PA Speaker Wall Mount
- Built-in 100V/70V audio transformer
- Wall mount pa speaker
- 5"+1.5"2.0 speaker unit
- RMS 30W @100V
- Metal grille, ABS enclosure and stainless mounting bracket
* The speaker's smoothly curved surface permits it to blend in with virtually all modern buildings
* A built-in matching transformer permits the speaker to be used for high-impedance application
* A splash-proof design enables the speaker to even be installed outdoors, in a location not directly exposed to the elements, such as under eaves
* Mountable to wall surfaces directly or using with supplied or optional mounting brackets
* 2.0 coaxial speaker
* Fashion wall mount pa speaker for architecture design speaker
* 100V/70V and low impedance 8ohm power tap is supplied
* Aluminum grill, ABS body and stainless mounting bracket
* Waterproof IP54 finish for outdoor background music system and paging system use
* PA system, public address system loudspeaker, commercial audio system speaker

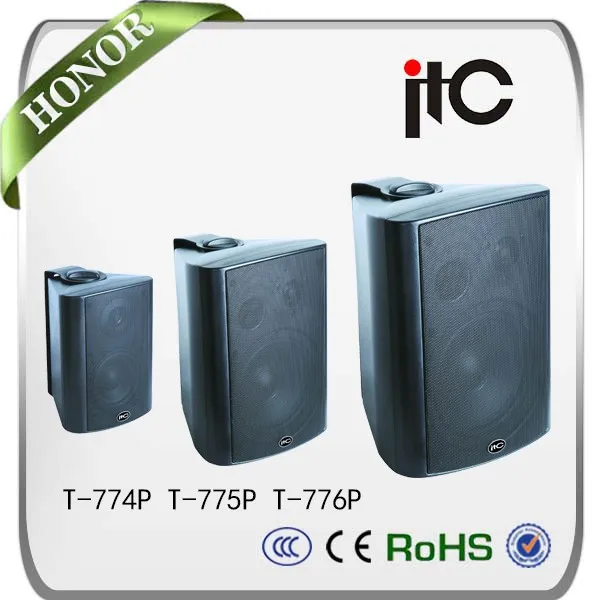

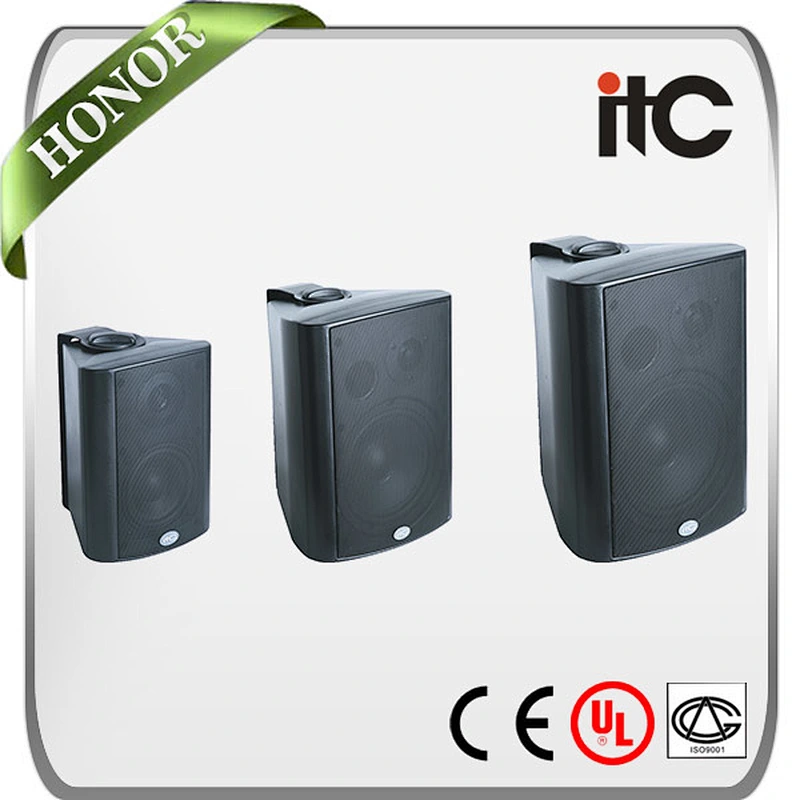

| Model | T-774 | T-775 | T-776 |
| Name | 2.0 Wall Mount PA Speaker | ||
| Installation | Wall Mount with Bracket | ||
| Rated Input Power | 10W | 15W | 25W |
| Max Input Power | 15W | 20W | 30W |
| Line Input | 100V & 70V | 100V & 70V | 100V & 70V |
| Speaker Unit | 4"Coaxial Poly PP+2"Tweeter | 5"Coaxial Poly PP+2"Tweeter | 6"Coaxial Poly PP+2"Tweeter |

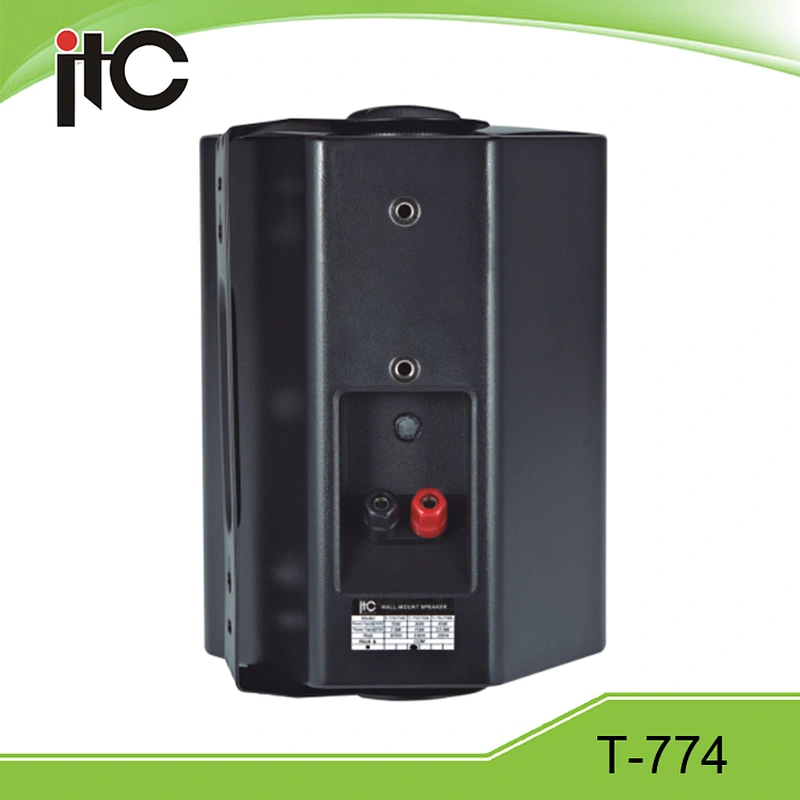

| Connection | Red/Black Screw Terminal | ||
| Frequency Response | 120-15kHz | 130-15KHz | 130-15KHz |
| Sensitivity | 92dB | 94dB | 95dB |
| Enclosure | ABS, Waterproof | ||
| Grill & Bracket | Stainless Mental | Stainless Mental | Stainless Mental |
| Finish | Black | Black | Black |
| IP Degree | IP54 | IP54 | IP54 |
| Operation Degree | (-)10 to (+)50 degrees | (-)10 to (+)50 degrees | (-)10 to (+)50 degrees |
| RoHS | RoHS Applicant | RoHS Applicant | RoHS Applicant |
| Dimensions | 165*158*220mm | 185*190*241mm | 219*300*297mm |
| Weight | 2.2kg | 3kg | 3.5kg |
| Packing Qty | 2 | 2 | 2 |
| G.W. | 4.7kg | 5.6kg | 7.6kg |
| Packing Meas | 315*170*250mm | 350*190*270mm | 410*215*320mm |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
