- Place of Origin:CN;GUA
- Model Number:TF-700
- Brand Name:ITC
- Power Taps @100V:0.75W, 1.5W, 3W, 6W
- Power Taps @70V:0.37W, 0.75W, 1.5W, 3W
- Impedance:Com/13.3KΩ/6.7KΩ/3.3KΩ/1.7KΩ
- SPL(1W/1M):91dB±3 dB
- Max. SPL (Rated W/1M):99dB
- Frequency Response (-10dB):100-16KHz
- Finish:Baffle: Steel, White Grille: Steel, White
- Speaker Driver:5"* 1
- Dimension:245 * 212 * 95mm
- Weight:1.9Kg

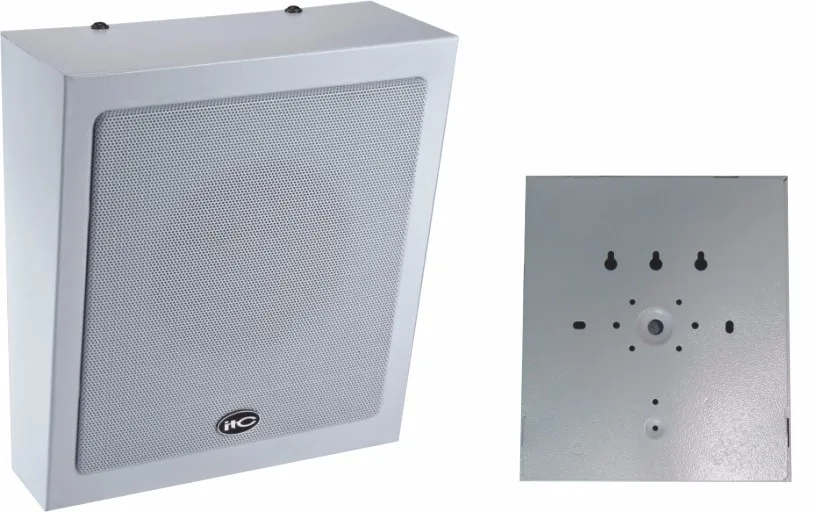

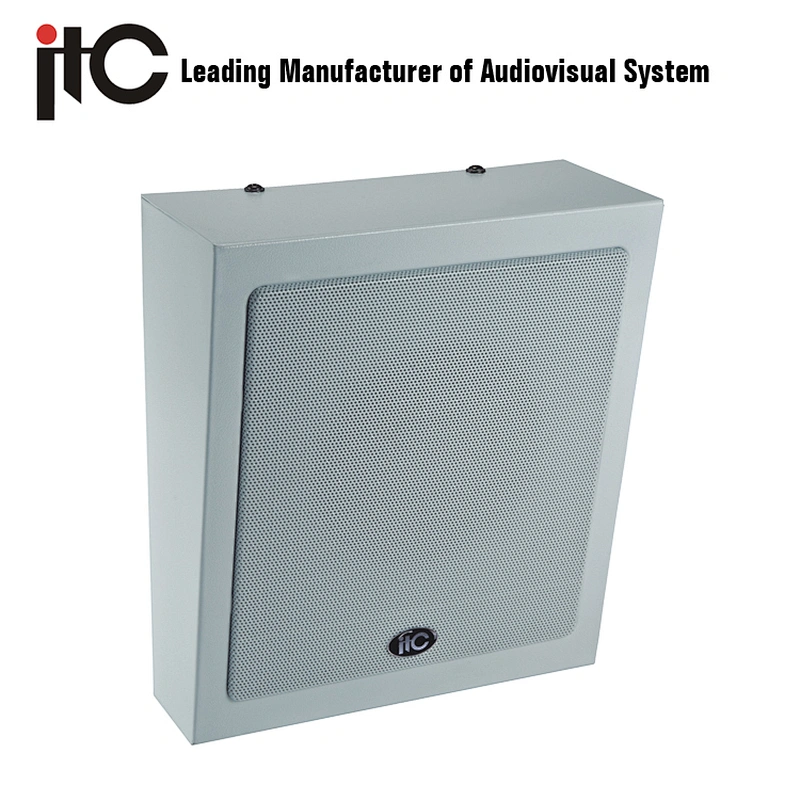

ITC TF-700 Practical 6W 5 inch Full Range Fireproof Speaker Wall
- Built-in 100V/70V transformer
- Wall mount fireproof speaker
- Ceramic connector, thermal fuse and fire-resistant cable
- 5 inch full range speaker unit
- Power taps 0.75W-1.5W-3W-6W @100V
- Metal grille and metal back cover
- Painted in white color

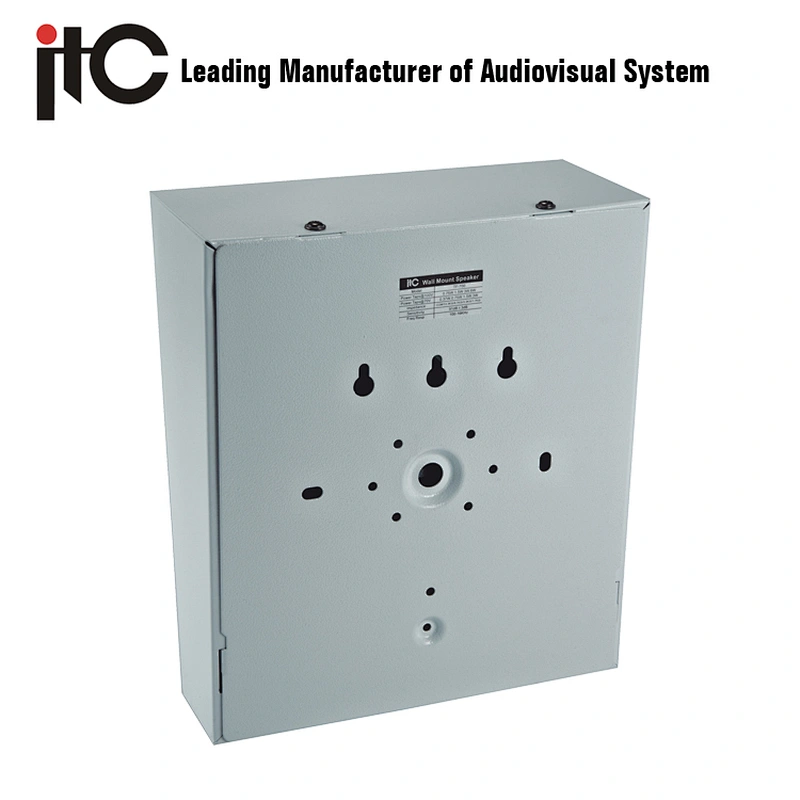

- Easy & secure wall mount hook installation
The TF-700 is a wall mount fireproof speaker built-in 70V/100V transformer.
The built-in 5"full range speaker driver is designed of wide frequency response 100-16kHz, the multiple power taps 0.75W, 1.5W, 3W & 6W are helpful for different applications varies from room size and ambient noise surroundings.
This wall mount fireproof speaker is specially designed for fire alarm and voice evacuation system, which is designed and manufactured according to EN54-24 standard. It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
Model | TF-700 |
Power Taps @100V | 0.75W, 1.5W, 3W, 6W |
Power Taps @70V | 0.37W, 0.75W, 1.5W, 3W |
Impedance | Com/13.3KΩ/6.7KΩ/3.3KΩ/1.7KΩ |
SPL(1W/1M) | 91dB±3 dB |
Max. SPL (Rated W/1M) | 99dB |

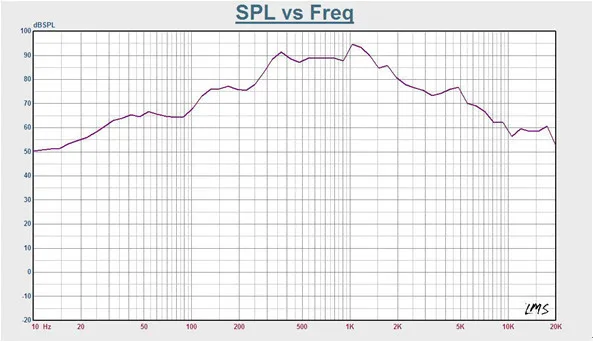

Frequency Response (-10dB) | 100-16KHz |
Finish | Baffle: Steel, White Grille: Steel, White |
Speaker Driver | 5"x1 |
Dimension | 245x212x95mm |
Weight | 1.9Kg |
Mounting | Hook |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
