- Place of Origin:CN;GUA
- Simultaneous Interpretation:Yes
- Function:translation
- Model Number:TS-0604M
- Brand Name:ITC
- Type:Audio Conference System
- Power Supply:AC 100 or 240V; 50 to 60Hz
- Static Power Consumption:10W
- Max. of Power Consumption:350W
- Output Power:≤110W/24V per channel
- Aux Output:2V, 100 ohm, unbalanced
- Frequency Response:60-16KHz
- S/N Ratio:>80dB
- Total Harmonic Distortion:<0.5%
- Over Carrier Distortion:<1%
- Crosstalk Attenuation:>50dB

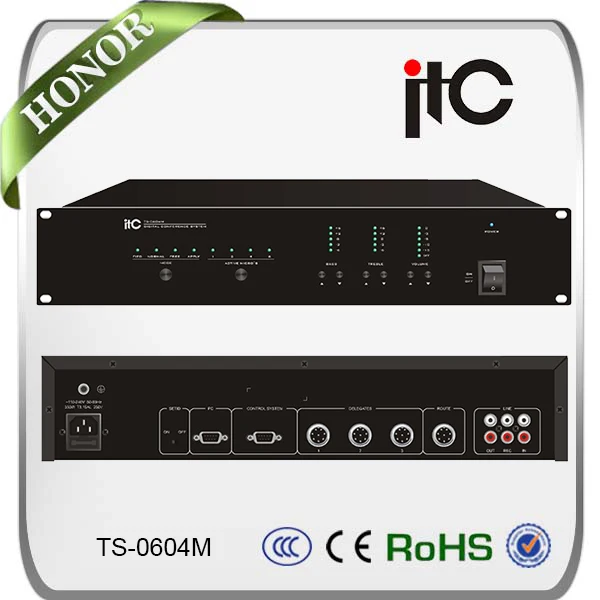

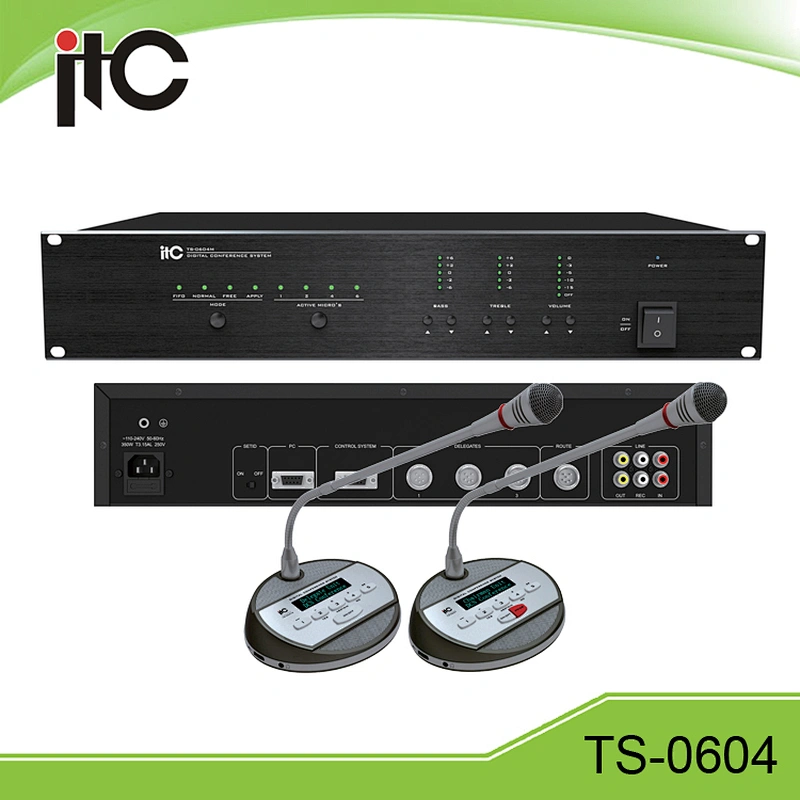

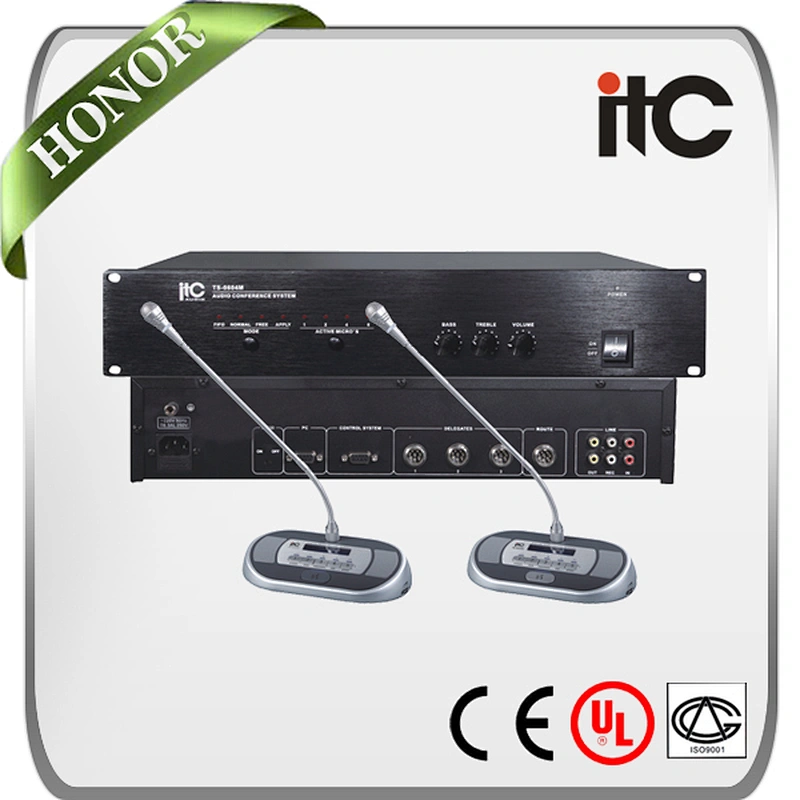

ITC TS-0604M Up to 4096 Unit Camera Tracking Audio Conference System
Product List
1)TS-0604M Intelligent Conference System Controller
2)TS-0602/TS-0602A Chairman/Delegate Conference Microphone
3)TS-16P-4 Series Audio Mixer
4) TS-200PI Precise Series Professional Amplifier
5) TS-8A Series Professional Speaker
Function
1) When participants want to speaker, they just need to press the button named “MIC”
2) Chairman unit has the highest priority
3) 4 modes of conference management: First-in-first-out (FIFO)/Normal/Free/Apply
4) The host is with audio output for sound reinforce devices
5) Up to 128 speaking units are allowed, and if users want more, just add a expansion host so that the capacity of speaking units is up to 4096
- To adopt unified 8-core air plug.
- With functional buttons to adjust total volume, treble and bass.
- 4 kinds of conference modes: Fist-in-first-out/Normal/ Free/ Application.
- With the function of speaking units limit: Optional limit quantity 1/2/4/6, and the chairman unit is unlimited.
- Powerful Expansibility: 1 host could control up to 128 units and when working with expansibility host, the quantity is up to 4096.
- Connection method between units is “Hand in hand”, which is easy to be installed and maintained.
- With 2 channel soundtrack output, which could be used to do sound reinforce and recording.
- With the function of voting and data management; It could work with PC installed matching software, other conference system of ITC™, multimedia central control system, etc to achieve modern high-tech conference.
- To work with telephone coupler to achieve phone conference.
- Passing the high voltage test at 3500V
- The case is in the material of metal; Circuit and the outer case are connected to ground line rationally to ensure antistatic ability of 8000V.
- The host could be installed in chassis of 19”, which is easy to be placed and maintained.
Model | TS-0604M |
Power Supply | AC 100 or 240V; 50 to 60Hz |
Static Power Consumption | 10W |
Max. of Power Consumption | 350W |
Output Power | ≤110W/24V per channel |
Aux Output | 2V, 100 ohm, unbalanced |
Frequency Response | 60-16KHz |
S/N Ratio | >80dB |
Total Harmonic Distortion | <0.5% |
Over Carrier Distortion | <1% |
Crosstalk Attenuation | >50dB |
Connector | 8-core air plug x5 & Mains 3-core plug |
Dimension | 484(L) x 305(W) x 88(H)mm |
Weight | 4.78kg |
color | Black |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
