- Place of Origin:CN;GUA
- Simultaneous Interpretation:No
- Function:voting
- Model Number:TS-0691
- Brand Name:ITC
- Type:Audio Conference System
- Horizontal Turning:0°~300°/s
- Vertical Rotation:0°~120°/s
- Level Angle:360°Infinite place
- Vertically Angle:90°(180°automatic rolling-over)
- Pre-points:128 Pieces (max)
- Control method multi protocol:RS485
- Relative Humidity:90%
- Working Temperature:0°C~50°C
- Power:AC 24V
- Power Consumption:20VA

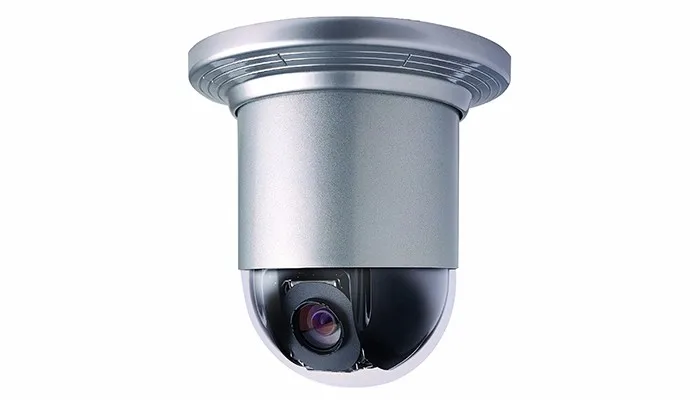

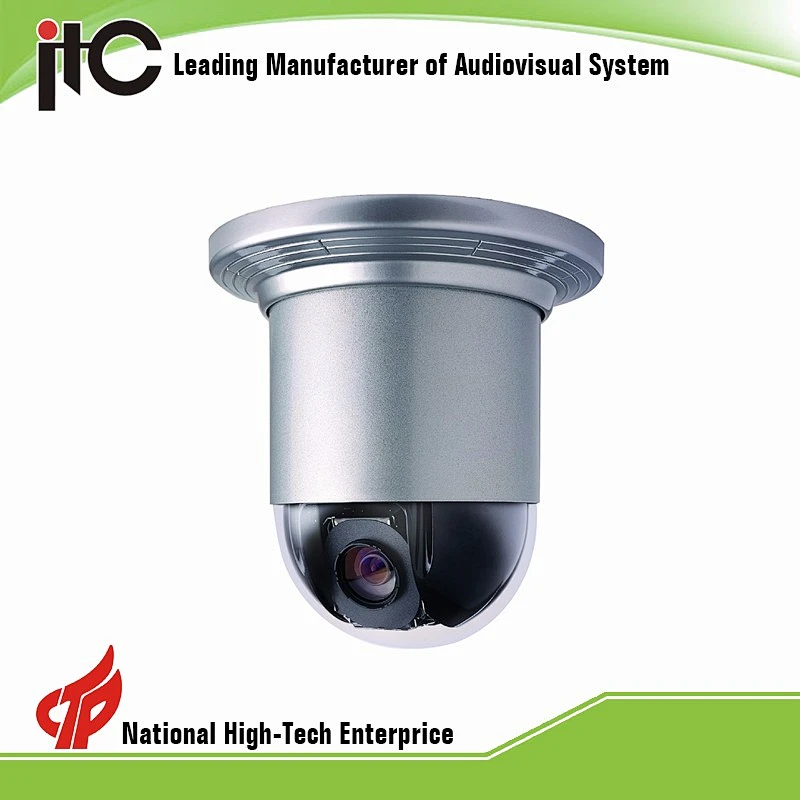

ITC TS-0691 High Performance PTZ Video Conference Camera
1) 1/4"SONY SUPER HAD CCD.
2) 18 times optical zoom, f=4.1mm(wide)-73.8mm(tele),F=1.4-F3.0.
3) 480TVL.
4)High strength double glazed aluminium lunkerite bottom canopy, high temperature resistance and resistant to corrosion.
5) 360°continuous rotation, the max speed 300°/s.
6) 4 roads alarm input and one road alarm output.
7) 6 roads programmable tour check, 128 pre-points, with self-learning function.
8) OSD display English menu, pre-point title and camera address, etc. displayable.
9) Integrated multi protocols, baud rate optional, multi-cameras self-adaptation and standard RS-485 control.
10) Packed ports, with hot plug function, convenient for aloft working.
11) Zone hidden selection function (max 8 programmable hidden zones).
12) Built in 3KV lightning protection, surge protection and instant over voltage protection.
13) Adopt all-weather shield, built in automatic thermostatic apparatus.
14) Adopt AC24V power and line lock available.
15) About forty four hundred thousand pixel, 12 times digital zoom.
16) Lowest illumination: 1.0LX(standard) (F1.4,5OIRE).
Model | TS-0691 |
Horizontal Turning | 0°~300°/s |
Vertical Rotation | 0°~120°/s |
Level Angle | 360°Infinite place |
Vertically Angle | 90°(180°automatic rolling-over) |
Pre-points | 128 Pieces (max) |
Control method multi protocol | RS485 |
Relative Humidity | 90% |
Working Temperature | 0°C~50°C |
Power | AC 24V |
Power Consumption | 20VA |
Dimensions | 205x195mm |
Weight | 2kg |

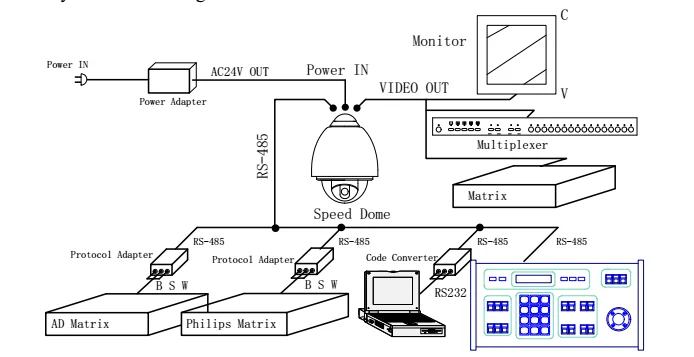

Connection Diagram
Various Installation Style
