- Place of Origin:CN;GUA
- Use:Conference Microphone
- Model Number:TS-0622 TS-0622A
- Brand Name:ITC
- Style:Gooseneck Microphone
- Communication:WIRED
- Power:DC 24V (By the Host)
- Interface:8-core air plug
- Power Consumption:3W
- Headset Ouput:9dBu, 8 to 32 ohm, 3.5mm micro plug
- Speaker Power:≤2W
- Microphone Type:High directivity clumnar electrode
- Direction Feature:Cardiods
- S/N Rate:>80dB
- Crosstalk Antenuation:>80dB
- Distortion:<0.10%

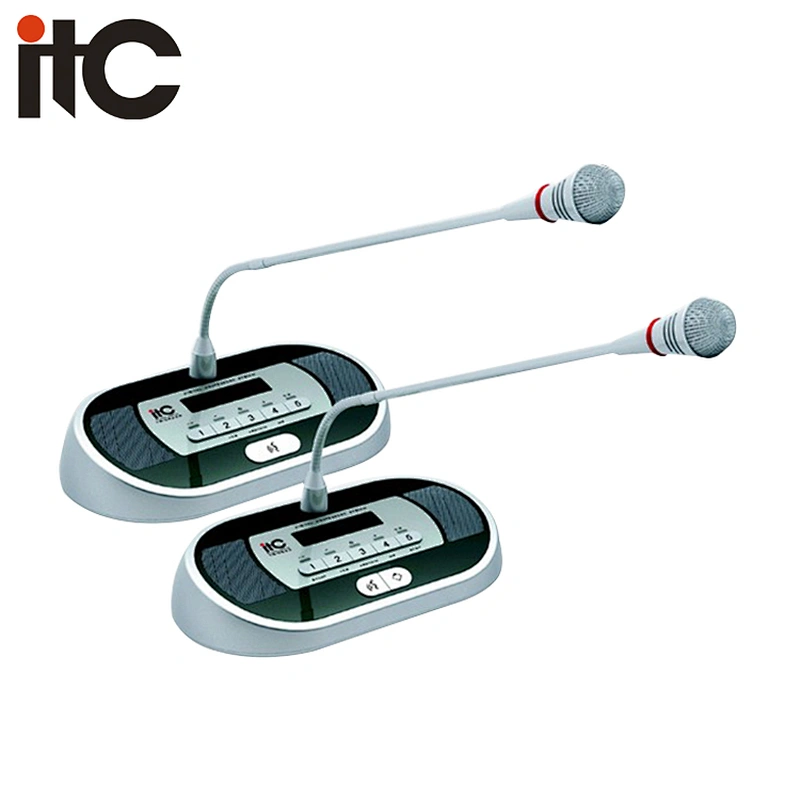

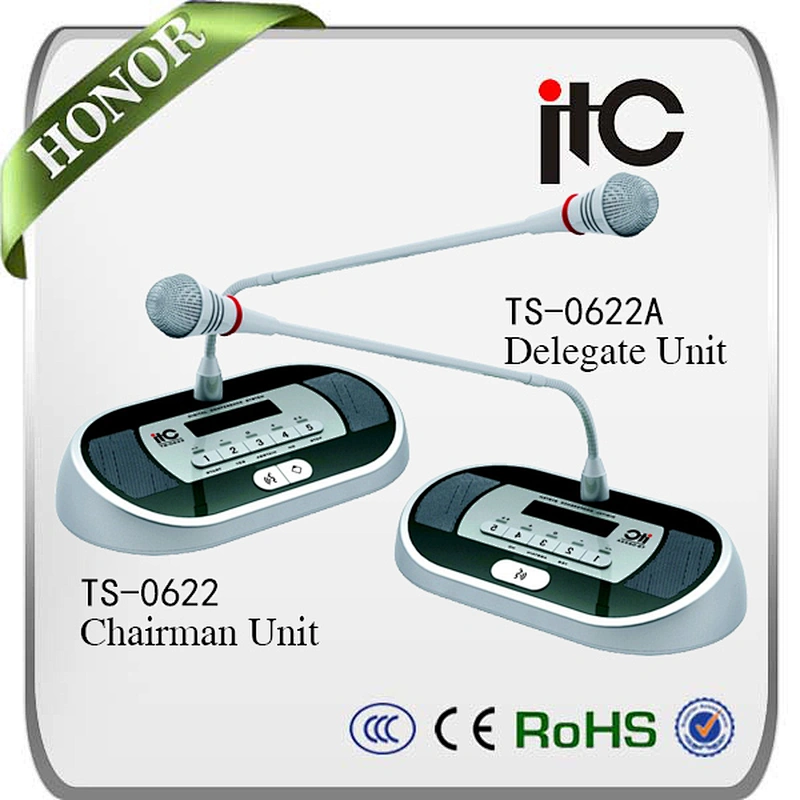

ITC TS-0622 Series Having LCD Display Discussion and Voting Conference Table Microphone
System Diagram
- There’re 5 button to provide users with the function of voting, selection and grading;
- With LCD to show user’ operation;
- Anti-RF hose with patented technique is to cancel noise;
- Stylish appearance catching the trend;
- Unique design of mic cover is to cancel impact-sound in low frequency without using wind shield.;
- Professional large cardioids condenser mic is with high sensitivity to restore clear voice, which is with round ring indicator;
- When the indicator is in red, it means that the participant is speaking; when the indicator is in green, it means that the participant applies to speak;
- With the function of howling suppression; when the mic is turned on, the internal speaker is turned off automatically;
- Each unit is built in speaker and with headset jack;
- Units do cascade via 8 core air plug;
- Each unit has 2m 8 core air cable covered by foil, which avoids interference by strong electromagnetic wave;
- It’s free for users to adjust address for each unit in order to do installation easily;
- Unit is powered up by controller at DC 24V;
- Chairman unit has right to manage the order of the whole conference;
- The connection location of chairman unit is not limited;
- Connection way is “Hand in hand” in order to be installed and maintain conveniently;
Model | TS-0622 TS-0622A |
Power | DC 24V (By the Host) |
Interface | 8-core air plug |
Power Consumption | 3W |
Headset Ouput | 9dBu, 8 to 32 ohm, 3.5mm micro plug |
Speaker Power | ≤2W |
Microphone Type | High directivity clumnar electrode |
Direction Feature | Cardiods |
S/N Rate | >80dB |
Crosstalk Antenuation | >80dB |
Distortion | <0.10% |
Frequency Response | 60 to 12KHz |
Equivalent Noise | ≈20dB |
Max. SPL | 105dB |
Sensitivity | -22dBV/Pa |
Length of the Mic Pole (mm) | (Optional) 415mm/480mm/650mm |
Dimension (mm) | 225x131x48 |
Weight (Kg) | 0.9 |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
