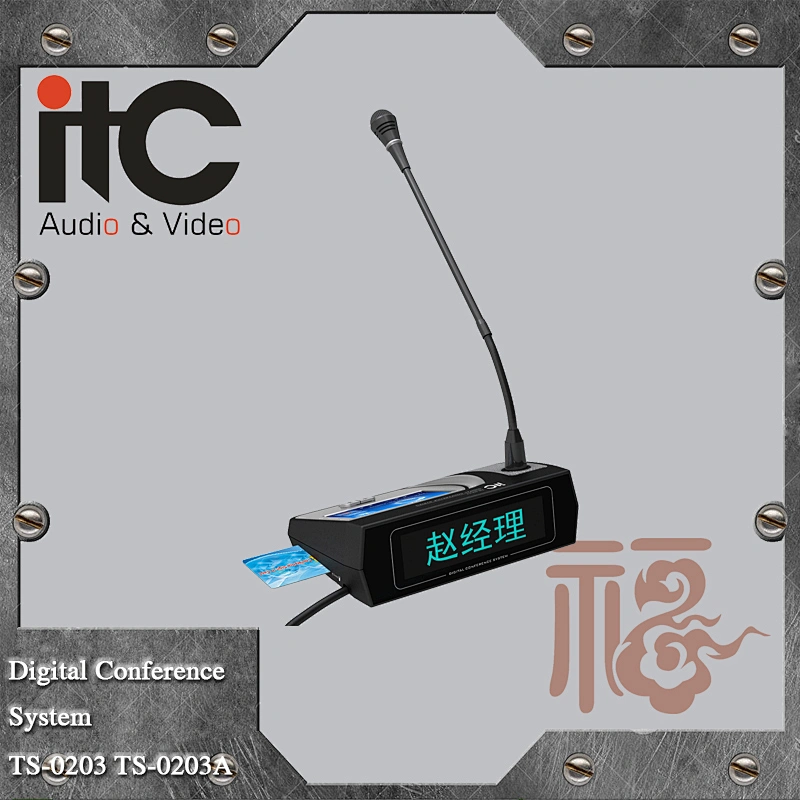

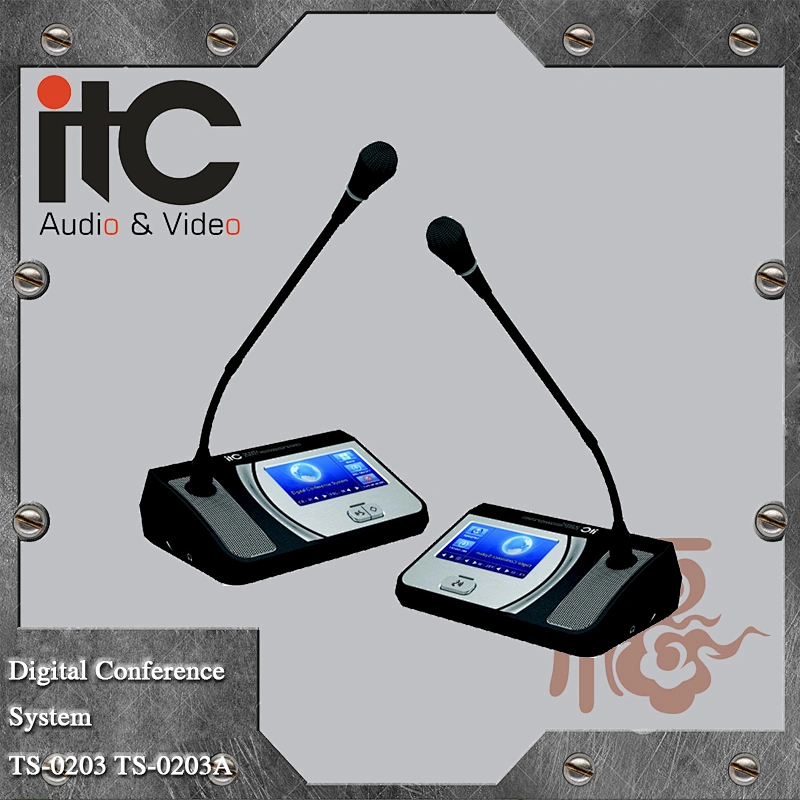

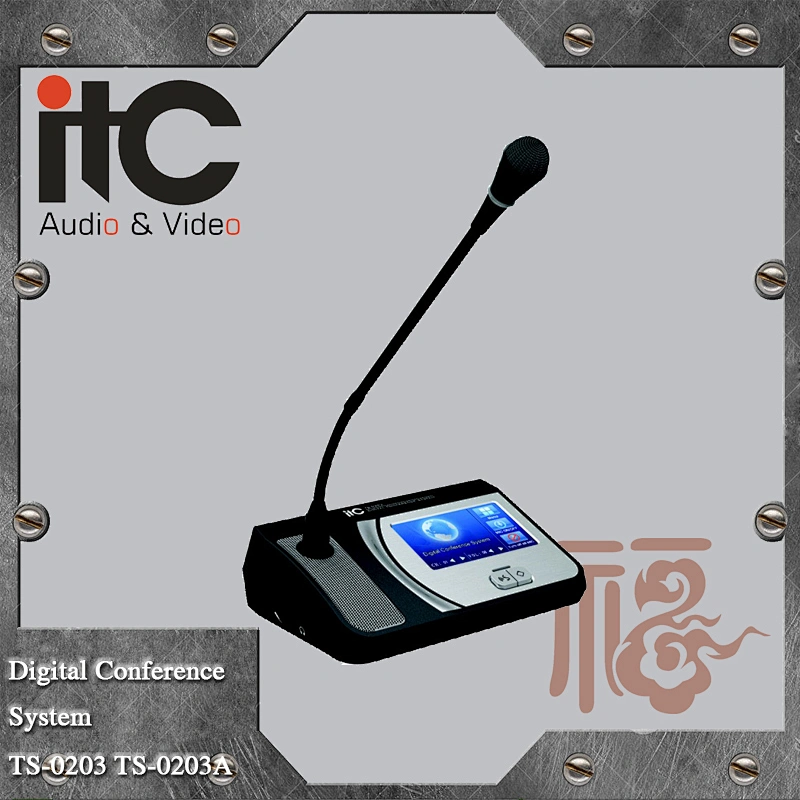

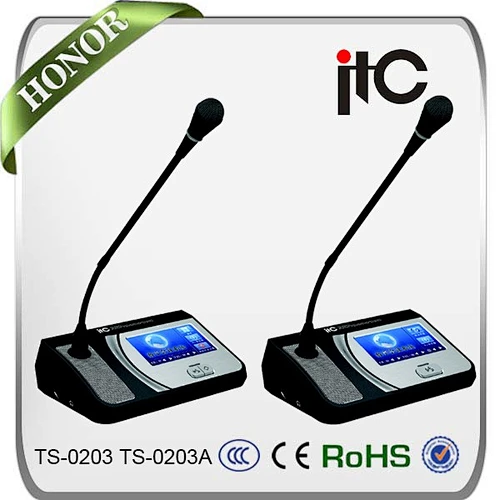

ITC TS-0200 Series Having Check In Function Meeting Table Digital Conference Table Microphone
ITC TS-0200 Series Having Check In Function Meeting Table Digital Conference Table Microphone
ITC TS-0200 Series Having Check In Function Meeting Table Digital Conference Table Microphone
ITC TS-0200 Series Having Check In Function Meeting Table Digital Conference Table Microphone
ITC TS-0200 Series Having Check In Function Meeting Table Digital Conference Table Microphone
ITC TS-0200 Series Having Check In Function Meeting Table Digital Conference Table Microphone
ITC TS-0200 Series Having Check In Function Meeting Table Digital Conference Table Microphone
ITC TS-0200 Series Having Check In Function Meeting Table Digital Conference Table Microphone
ITC TS-0200 Series Having Check In Function Meeting Table Digital Conference Table Microphone

ITC TS-0200 Series Having Check In Function Meeting Table Digital Conference Table Microphone

Model NO.
TS-0203/TS-0203A
Delivery
FOB
Minimum order quantity
30 units
Supply Ability
1000 units / Week
Country of Origin
Guangzhou, Shenzhen and HK
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:ITC
  • Style:Gooseneck Microphone
  • Use:Conference Microphone
  • Communication:WIRED
  • Model Number:TS-0203/TS-0203A
  • Microphone Types:Cardioids directivity electret
  • Frequency Response:100 Hz ~ 16 KHZ
  • Impedance:1Kohm
  • Sensitivity:- 46 dBV/Pa
  • SNR:>80dB
  • THD:< 0.1%
  • Consumption:5W
  • Headset Load:32 ohm
  • Headset Volume:40 mW
  • Specification:IEC 60914
Features

ITC TS-0200 Series Having Check In Function Meeting Table Digital Conference Table Microphone

1) Sampling rate is 48KHz, which is higher than the CD sound quality, and the sound is clear and natural; Internal DSP audio processor is to cancel LF impulsive sound;

2) With the function of timekeeping for the speak and scheduled time speak;

3) Delegate unit is with function of apply for speak, and the chairman unit can approve the applicant;

4) With the function of feedback suppression;

5) The Microphone has the voice control function, can intelligent turn on the microphone;

6) 5 band EQ to adjust the sound according to the feature of the speaker's voice, to achieve perfect effect;

7) The chairman has the highest priority, which can turn off the Microphone of delegate units during speech;

8) 4.3 inch TFT true color touch screen, simple operation, user-friendly interface;

9) Running on 100M network, “Hand-in-Hand” connection method, sound quality would not be interfered in long distance transmission;

10) With IC card slot for check-in, which let the admin know the info of participants;

11) Support functions of voting, election and rating; chairman unit can launch voting and check-in. can do data statistics without computer;

12) With electronic table card to show the participant's name in wide view LCD, and the info could be updated quickly through computer;

13) Can choose to receive 31 + 1 channel language channel;

14) The button is in design of P+R, which would not produce slap sound.

Technical Parameters
Model
TS-0203
TS-0203A
Microphone Types
Cardioids directivity electret
Cardioids directivity electret
Frequency Response of Microphone
100 Hz ~ 16 KHZ
100 Hz ~ 16 KHZ
Input Impedance of Microphone
1KΩ
1KΩ
Sensitivity
- 46 dBV/Pa
- 46 dBV/Pa
SNR
>80dB
>80dB
THD
< 0.1%
< 0.1%
Max Power Consumption
5W
5W
Headset Load
32Ω
32Ω
Headset Volume
Max 40mW
Max 40mW
Headphone Output Interface
3.5mm mono socket
3.5mm mono socket
Connection Way
Special cable (6 core)
Special cable (6 core)
Following Specification
IEC 60914
IEC 60914
