Digital Sound RJ45 Conference Management System for Discussion

Digital Sound RJ45 Conference Management System for Discussion

Model NO.: TS-0200 Series
Delivery: FOB
Minimum order quantity: 1 acre
Supply Ability: 100 acre / Week
Country of Origin: Guangzhou, Shenzhen & HK

Quantity:

Product Description

Place of Origin:CN;GUA
Simultaneous Interpretation:Yes
Model Number:TS-0200 Series
Brand Name:ITC
Type:Audio Conference System
Type:Network Conference System
Function:Multiple Function
Capacity for Microphone:≤4096
Quantity of Channel:32
Frequency Response:30 to 20 KHz
S/N Ratio:>72dB
Dynamic Range:>80dB
Channel Crosstalk:>85dB
Total Harmonic Distortion:<0.05%
Power Supply:AC 110V or AC 240V
RJ45:Connected to PC
Output Power Consumption:320W

Digital Sound RJ45 Conference Management System for Discussion

Your Preferred Choice for Economical conference system

Descriptions

Discussion & Voting & Check-in & Simultaneously Interpretation & Tracking Camera & Sound Reinforce

Features

*4 kinds of conference modes: First-in-first-out/Normal/Voice Control/Application.

* Chairman unit has the highest priority to speak.

* One host could control 128 units. And if the conference needs more units, our host could do cascade with expansion host so that it could control up to 4096units.

*Withfire signal receiving port. And if triggered, the whole system would display the fire message.

* If you don’t want to lose your data because of break down, you could use 2 host to do backup.

Support protocol of CobraNet and Fiber-glass to do long distance transmissionortocombine two conference room in different place.

* The host supports communication protocol of TCP/IPandcould be controlled by wireless pad, PC and mobile phone in Android.

*WithSM module, manager could send SM to every units.

* To work with tracking camera controllertocontrol multiple channel of tracking camera.

* To work with conference room sound system to achieve excellent audition experience.

* To work with 16 channel digital IR radiator host to achieve simultaneously interpretation.

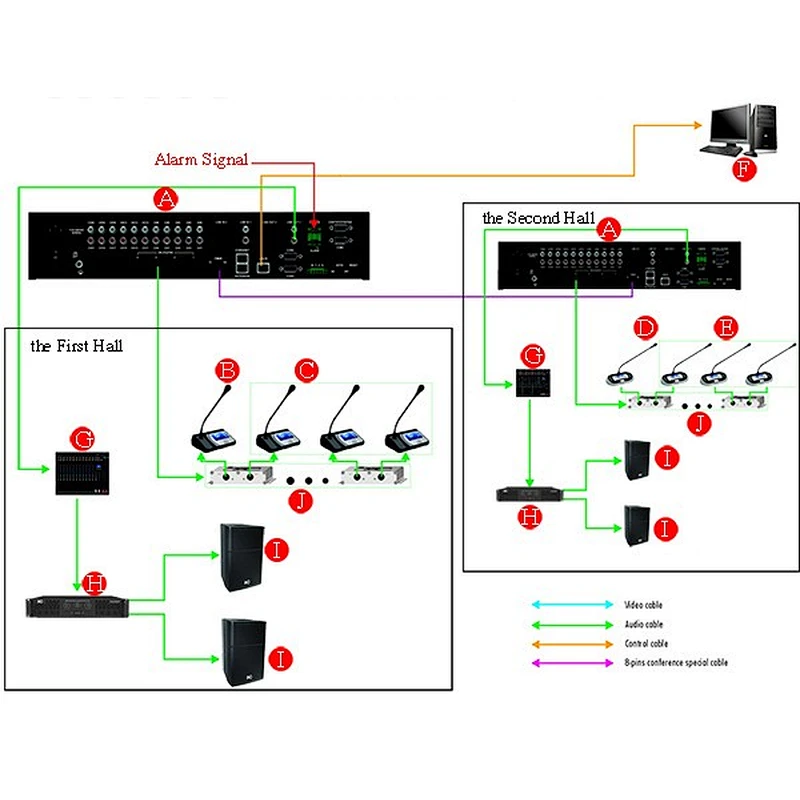

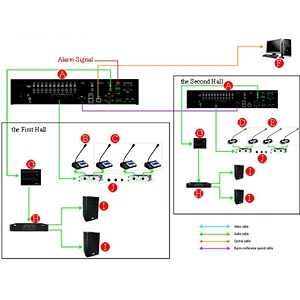

System Diagram

Product List

1Full Digit Conference System HostTS-0200Mx1

2Chairman UnitTS-0206x1

3Delegate UnitTS-0206AxN

4 Full Digit Expansion Box for Delegate Unit TS-0221 xN

5 16 Channel Simultaneously Interpretation Host TS-0670Hx1

6 Full Digit Interpretation Station TS-0670HYxN

7 IR Radiator TS-0670HSx4

8 16 Channel IR Receiver TS-0670HD-16xN

9 Tracking Camera Controller TS-0698x1

10 Tracking Camera TS-0695x5

11 12 Channel Audio Mixer TS-12Px1

12 Professional Amplifier TA-H4x1

13 Pro Speaker TS-8Ax2

Specifications

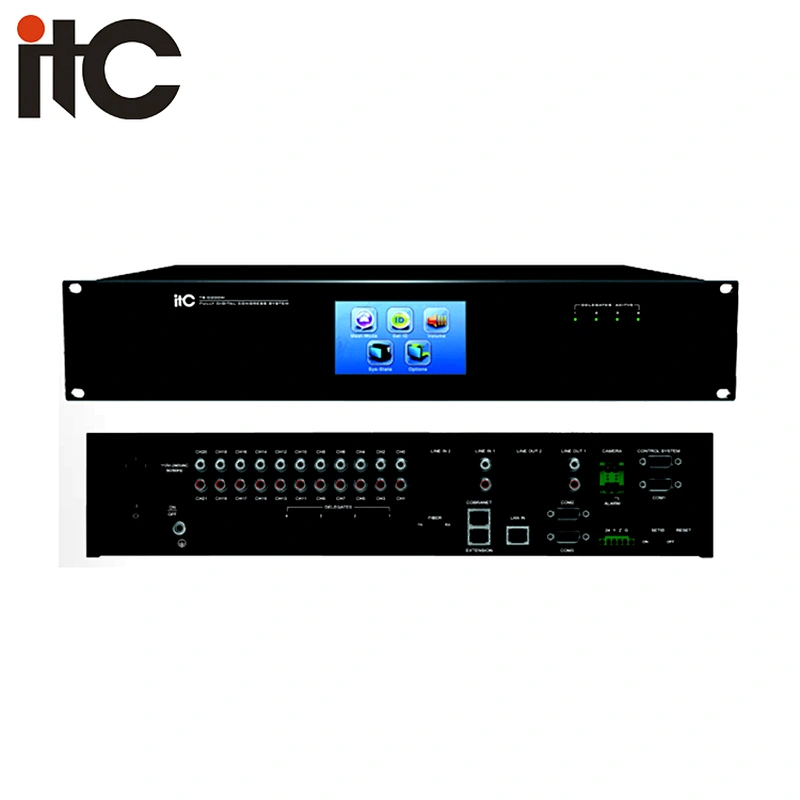

TS-0200MFull Digit Conference System Controller

Model	TS-0200M
Capacity for Microphone	≤4096
Quantity of Channel	32
Frequency Response	30 to 20 KHz
S/N Ratio	>75dB
Dynamic Range	>80dB
Channel Separation	>80dB
Total Harmonic Distortion	<0.05%
Power Supply	AC 110V or AC 240V
Audio Input	Line In 1: 775mV Balanced
Audio Input	Line In 2: 775mV Unbalanced
Audio Output	Line Out 1: 1V Balanced
Audio Output	Line Out 2: 1V Unbalanced
Impedance for Output	>1 Kohm
RJ45	Connected to PC
Max. Power Consumption	400W
Connection Method	Specified Cable (6 Core)
Color	Black
Weight	About 3Kg
Dimension	485x235x45mm
Operating Temp.	+5℃ to +40℃
Operating Humidity	20% to 80%

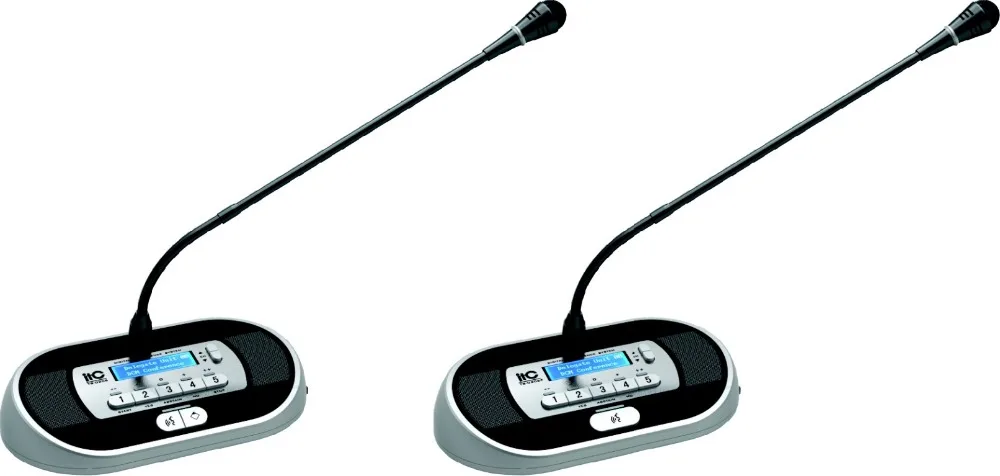

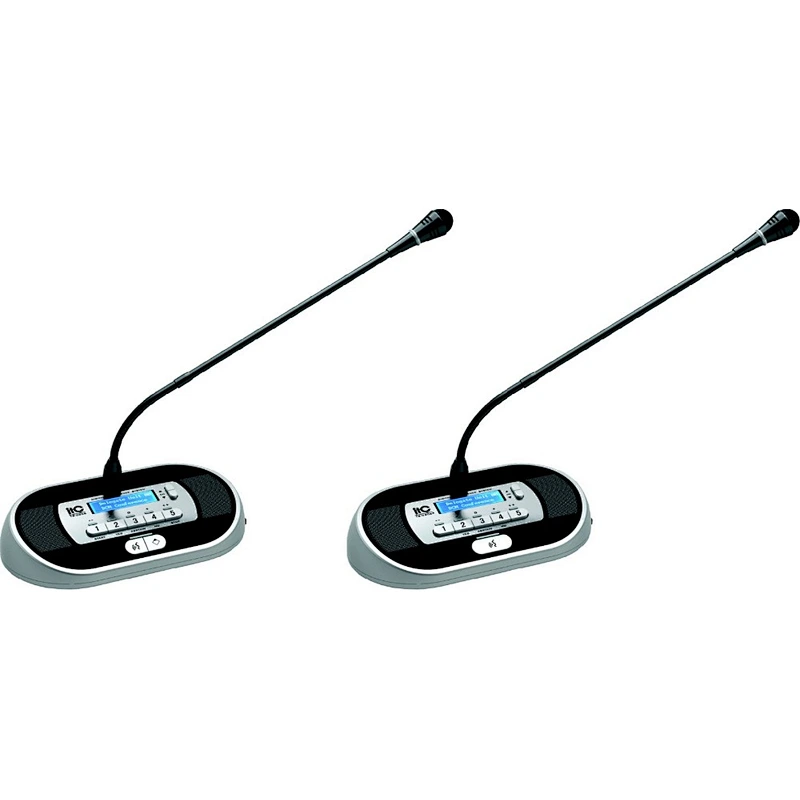

TS-0206 Full Digit Conference System Chairman Unit

TS-0206A Full Digit Conference System Delegate Unit

Model	TS-0206	TS-0206A
Microphone Types	Cardioid Unidirectional	Cardioid Unidirectional
Frequency Response of Mic	100Hz ~ 16KHz	100Hz ~ 16KHz
Input Impedance of Mic	1KΩ	1KΩ
Sensitivity	- 46 dBV/Pa	- 46 dBV/Pa
S/N Ratio	> 80 dB	> 80 dB
THD	< 0.1%	< 0.1%
Max. Power Consumption	2.5W	2.5W
Headset Impedance	32Ω	32Ω
Headset Volume	Max. 40 mW	Max. 40 mW
Headset Output Interface	3.5 mm mono socket	3.5 mm mono socket
Connection Method	Specialized cable (6 core)	Specialized cable (6 core)
Standard	IEC 60914	IEC 60914
