- Place of Origin:CN;GUA
- Model Number:T-7800B-1
- Brand Name:ITC
- Power Consumption:AC 220V/50Hz/300W
- Hard Drive:512G SSD
- Screen Size:17-Inch
- Screen Color:TFT 16 Bit True Color
- Operation Method:1920 x 1080 Liquid Crystal Resistive Touch Screen (5 Wire)
- Working Temp.:5℃ to +60℃
- Working Relative Humidity:≥75%
- SNR of System Audio Signal:Line: 70dB;Mic:60dB
- Distortion of System Audio Signal:1KHz<0.5%
- Network Card:1000M
Latest Public Address Intelligent Luna Cloud IP Based PA System Center Control
Your Preferred Choice for Economical PA System

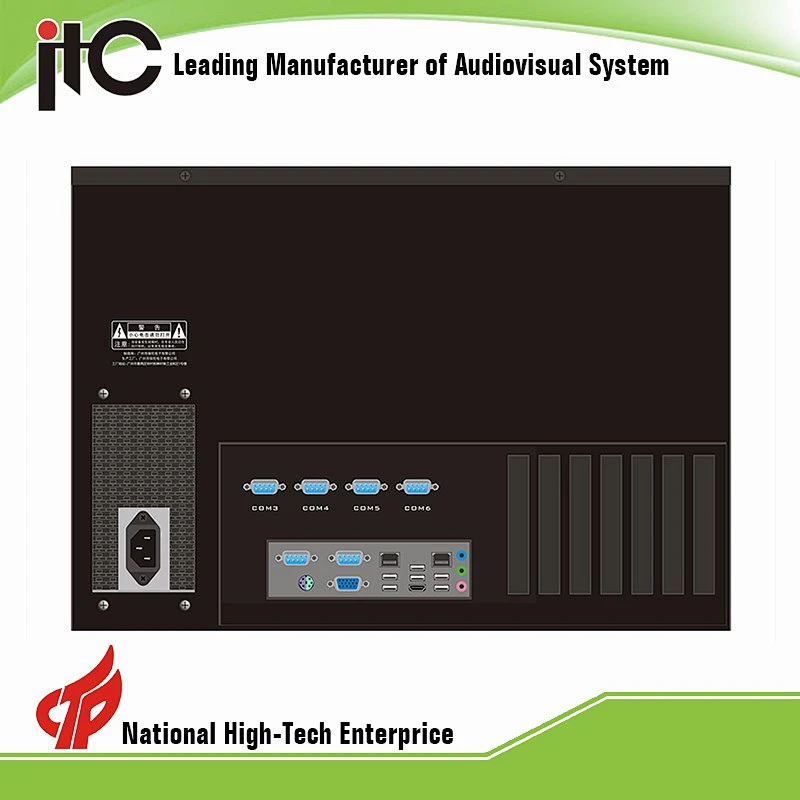

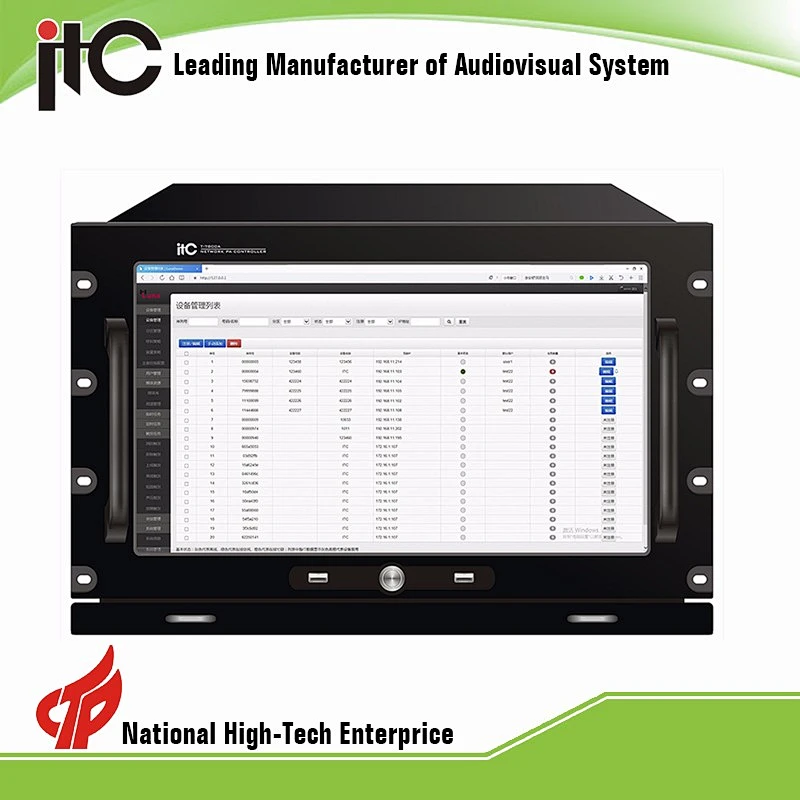

T-7800B Luna Cloud IP based PA System Server
Model | T-7800B |
Screen Size | 17" |
Screen Color | TFT16 true color |
Operation Mode | 1920×1080 full HD Screen, resistance-type (four-wire) touch screen |
Screen Ratio | 16:9 |
Mainboard | Intel NM1O Chipset |
Standard Port | 1×PS/2 port; 6×serial port; 1×VGA; 1×HDMI;8×USB interface |
Hard Disk | 512G SSD solid state disk |
Memory | Two-channel 16G DDR3 (The memory will be expanded as product upgrade) |
Network Card | Dual Gigabit network port |
CPU | Intel Haswell |
System Audio Signal Standard Input Level | LINE:350mV / MIC:5mV |
System Audio Signal Standard Output Level | 0dBV |
System Audio Signal S/N Ratio | LINE:70dB / MIC:60dB |
THD | 1KHz<0.5% |
Working Temperature | 5℃~40℃ |
Working Humidity | 20%~80%Relative humidity, without condensation |
Power Consumption | ~220-240V 50/60Hz /300W |
Dimension | 484×300×310 mm |
Weight | 16.23Kg |
Features
1) Using i7CPU, which could support up to 3,000 terminals;
2) Using dual-channel memory 16G DDR3;
3) Using high speed 512G SSD, and the read-write speed is up to 500MByte/s;
4) 2 gigabit network interface to meet the demand of high speed data exchange;
5) Using 17-inch 16:9 HD screen of 1920x1080P, which is with LVDS digital interface;
6) With pull-style industrial level keyboard;
7) Using industrial level touch mouse;
8) Using 2 channel sound card, which could be expanded to 14 channel;
9) Support server in mode of convergence and P2P.
System Diagram
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
