- Place of Origin:CN;GUA
- Model Number:T-78500
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:2 (2.0)
- Certificate:CCC CE
- Network Interface:TCP / IP, UDP, IGMP (multicast), IETF SIP
- Audio Format:MP3, WMA, WAV
- Protocol:2 Groups of RJ45
- Rated Power:650W
- AUX Input:1 Group
- Frequency Response:20Hz to 20KHz ±1dB
- THD:≤0.1%
- SNR:≥65dB
- Warranty:3 Years

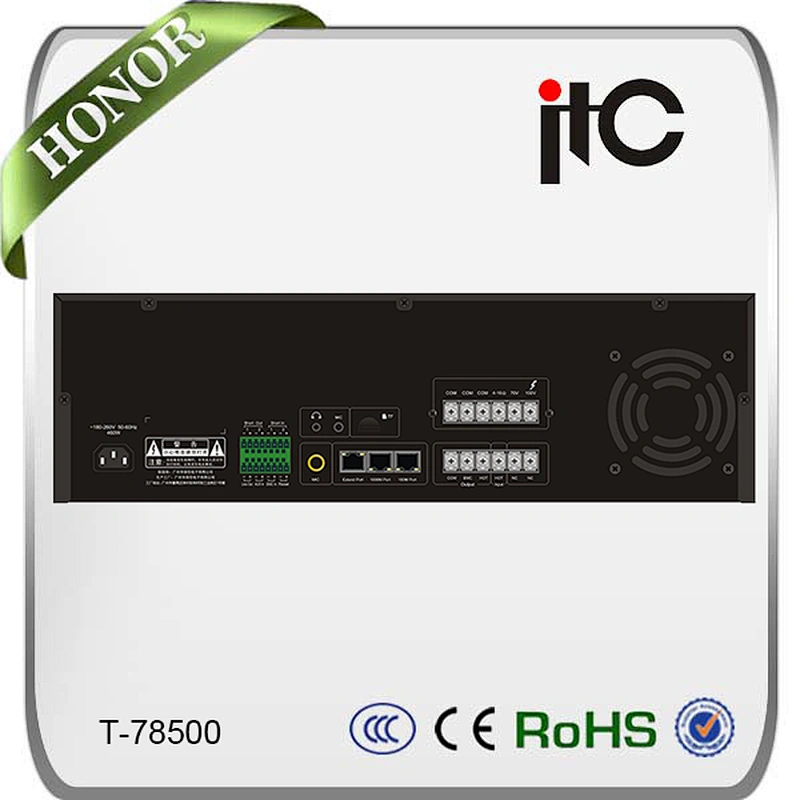

Made in China 650W Pa System Amplifier
Your Preferred Choice for Economical PA System
Application
Installed in the weak current room or control room, built in with power amplifier, it is used in halls, corridors, indoor and outdoor areas for audio files broadcasting and local broadcasting.
Features

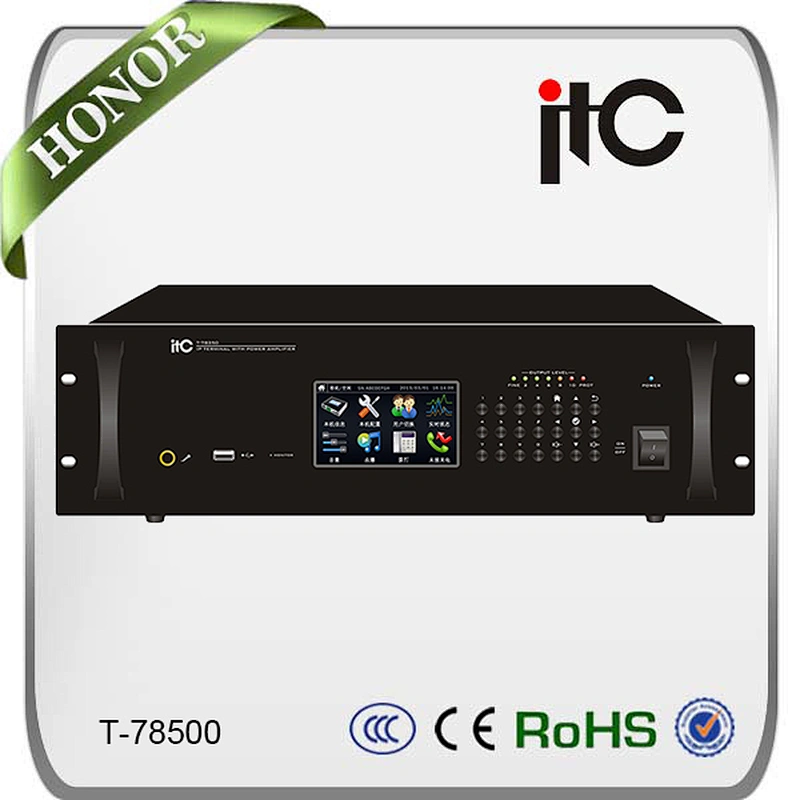

* Adopts standard 19-inch rack-mount design, aluminum industrial panel; with 4.3"TFT true-color
LCD screen, 21 industrial metal buttons; with reserved infrared receiver function for remote control
* Based on Luna cloud server, with high safety and stability, support 7x24 uninterrupted operations
* Built in with 2GByte SSD; support remote server management and downloading in background under limited bandwidth or automatic downloading in idle time, which can lighten the network burden, the files in media library can be played automatically in offline status.
* Integrated with USB and Micro SD (TF) card interfaces, maximum support 4T USB storage device and 128G / SDXC card.The user can play the files of USB, TF card and media library to the terminals.
* Built in with 60W / 120W / 240W / 350W / 500W constant-impedance (4-16Ω) and constant-voltage (70V / 100V) power output.
Model | T-78500 |
Network Interface | Standard RJ45 interfaces |
Transmission Rate | 100Mbps |
Protocol | TCP / IP, UDP, IGMP (multicast), IETF SIP |
Audio Format | Mp3, WMA, WAV |
Audio Mode | 16 bit CD level |
Sampling Rate | 8K~48KHz |
AUX Input | 1 group |
AUX Sensitivity | 350mV |
EMC Input | 1 group |
EMC Sensitivity | 775mV |
Local MIC Input | 1 group(Optional rear panel 6.3 single plug or 3.5mm interface input) |
Local MIC Sensitivity | Faceplate, backboard 6.3 single plug 10mV, 3.5mm interface 10mV |
Line Output | 1 group |
Line Output level/Impedance | 1000mV/470Ω |
Earphone Output Connector | 3.5mm interface |
Earphone load | 32Ω |
monitor MIC | 1 group |
Monitor MIC sensitivity | 10mV |
USB | Maximum support 4T USB device; load <0.1A |
SD | Maximum support 128G / SDXC card |
Power Consumption | 650W |
Standby Power Consumption | <3W |
Power Output | 500W |
Frequency Response | 80Hz~16KHz -3dB/+1dB |
THD | ≤1% |
SNR | >65dB |
Short -circuit Input | 0V / 3.3V, support dry contact input |
Short-circuit Output | Maximum 3A/30VDC dry contact output |
Protection Circuit | DC output, overload, over temperature, short circuit protection |
Operating Temperature | 5℃~40℃ |
Operating Humidity | 20%~80% relative humidity, non-condensation |
Working Voltage | ~190-240V 50/60Hz |
Size | 484 x 385 x 132 mm |
Weight | 18Kg |
System Diagram
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
