- Place of Origin:CN;GUA
- Model Number:T-775A
- Brand Name:ITC
- Rated Power Output:20W x 2 @ 8Ω
- Input Sensitivity:0.5V
- Frequency Response:80Hz-18KHz/1W, ±0.5dB
- THD:20Hz-20KHz/1W, 0.05%
- Damping:>200@8Ω/400Hz
- Conversion Rate:30V/US
- Channel Separation:>75dB
- S/N Ratio:>95dB
- Amplifier Type:Class AB
- AC Power Supply:220V~240V/50Hz~60Hz

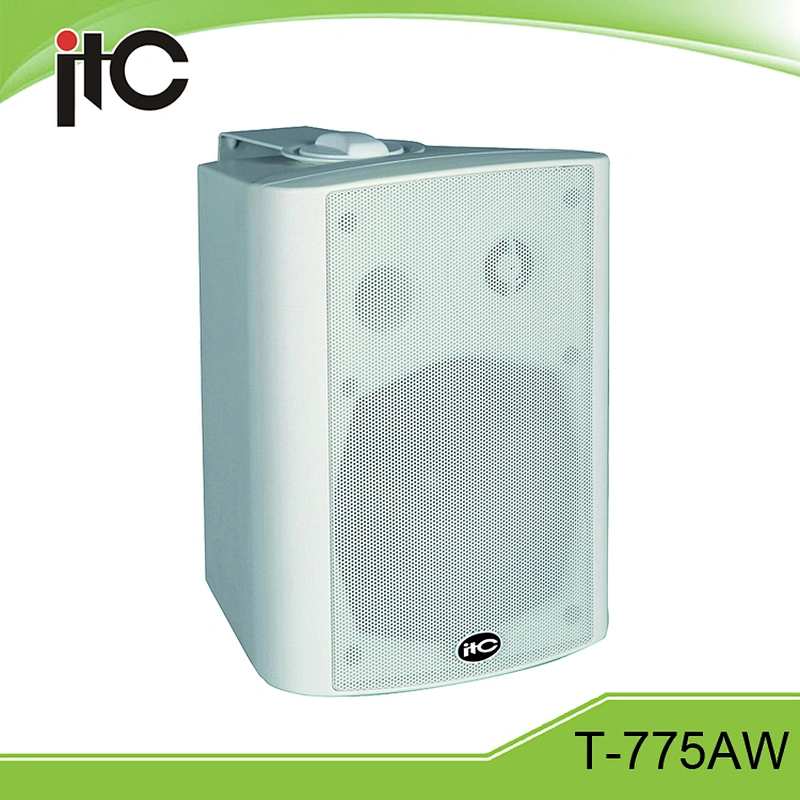

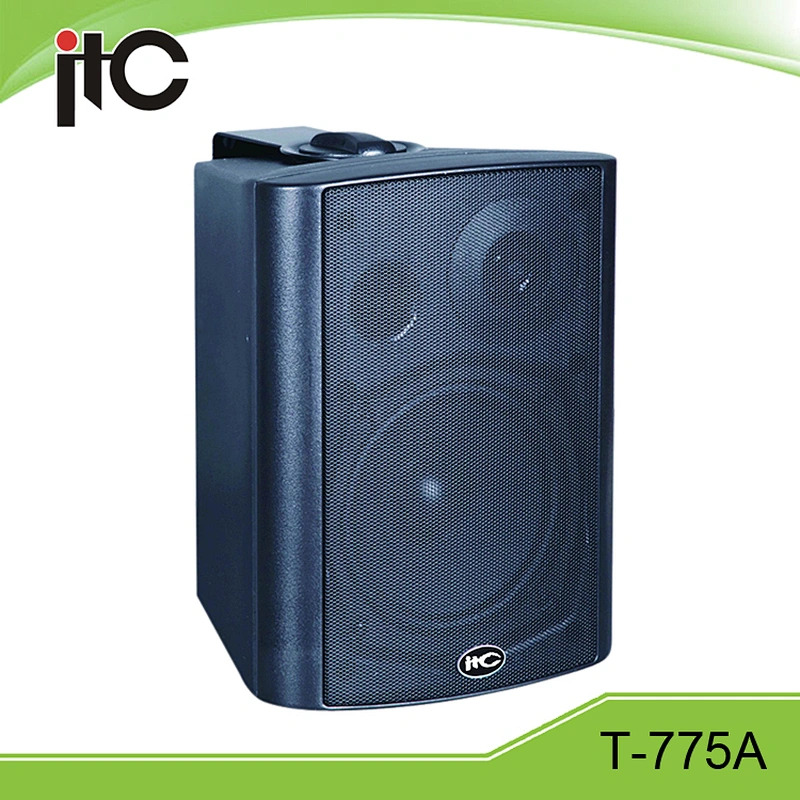

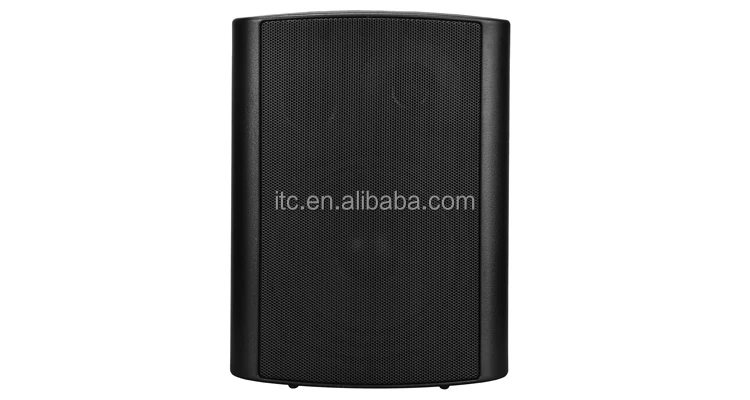

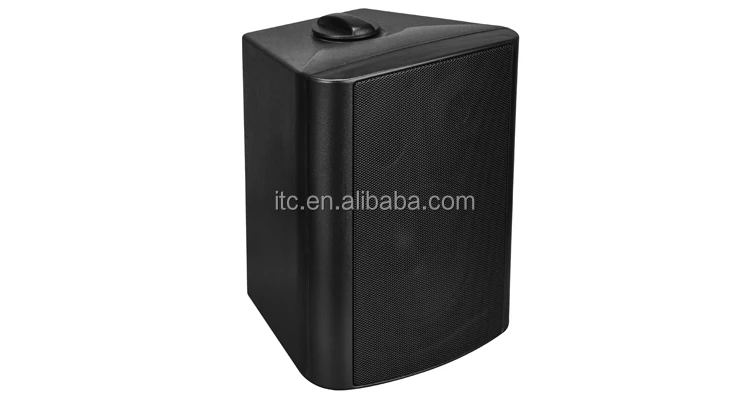

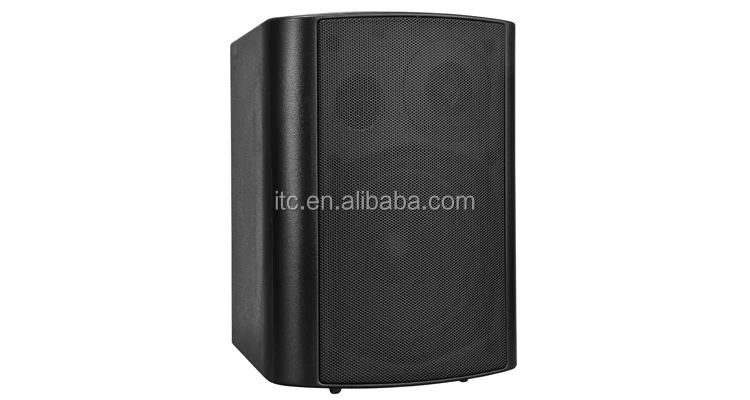

T-775A Stereo 5"HI FI Sound Quality Two Way PA Wall Speaker
The T-775A is a 5” stereo loudspeaker set that consists of a passive loudspeaker and an active
loudspeaker.

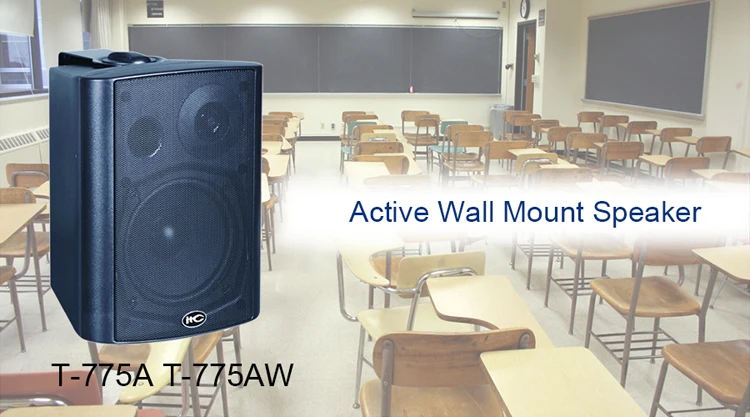

It is ideal choice for AV applications such as meeting room, multi-media class room for small
presentations.

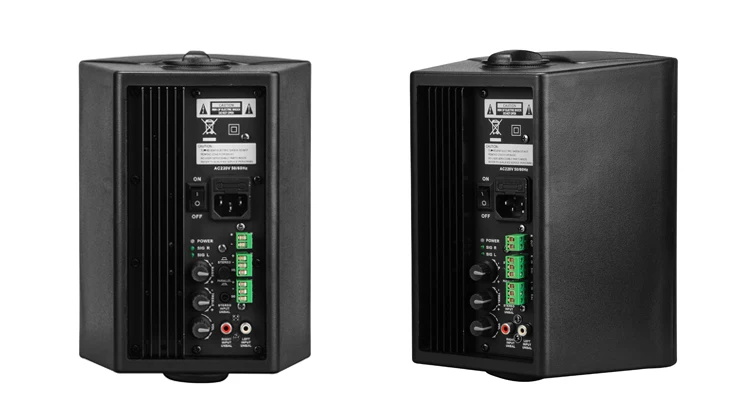

The active loudspeaker package is designed with volume and tone controls, accurate clip indicators and built-in a stereo amplifiers. The rated power output is 20W at 8ohms system.
ABS cabinet, metal grille and metal mounting bracket are of black finish, the easy mounting bracket is supplied in the packaging.
Features
*Powered speaker with amplifier of stereo sound system
*Two way speaker system, 5'' woofer and 1.5'' tweeter
*Ideal for school, hospital, meeting room projector and laptop use
*First-level Hi-fi sound quality
*Input support laptop, Ipod, Iphone and microphone
*20 watts stereo at 8ohms output
*Mounting bracket is supplied
*RS232 control port and remote control could be customized if order quantity is attractive, default specification not include this feature.
Model | T-775A (Black) |
RMS | 20W x 2 @ 8Ω |
Input Sensitivity | 0.5V |
Frequency Response | 80Hz-18KHz/1W, ±0.5dB |
THD | 20Hz-20KHz/1W, 0.05% |
Damping Factor | >200@8Ω/400Hz |
Conversion Rate | 30V/US |
Channel Degree of Separation | >75dB |
S.N. Ratio | >95dB |
Amplifier | AB class |
Indication | Power and channel signal |
Protection | High temp, overload, short circuit and clip |
Treble Control | ±10dB |
Bass Control | ±10dB |
Input Connector | Balanced phoenix connector, dual RCA and stereo 3.5mm earphone input |
AC Power Supply | ~220V-240V 50/60Hz |
Dimensions | 183x200x240mm |
Weight | 4.7Kg (per pair) |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
