- Place of Origin:CN;GUA
- Model Number:T-6232 Systems
- Brand Name:ITC
- Indication:192x64 LCD display, English
- Audio Output:1Kohm 0.775V Unbalance(6.35 RC) 0V(Short Circuit) Industrial Standard
- oltage Input and Output of Alarm:Integrated Terminal Block 0V(Short Circuit) Industrial Standard
- Monitor Power of Speaker:0.5W
- Time Mode:24 hours(hour-minutes-seconds) weekly
- Program Quantity:Total 7(6 regular programs, 1 EMC)
- Program Steps:Total 512 Steps, 1 day 200 Steps
- Communication Protocols:RS422
- Communication Port:RJ45
- Power Output:~110V/60Hz or ~230V/50Hz

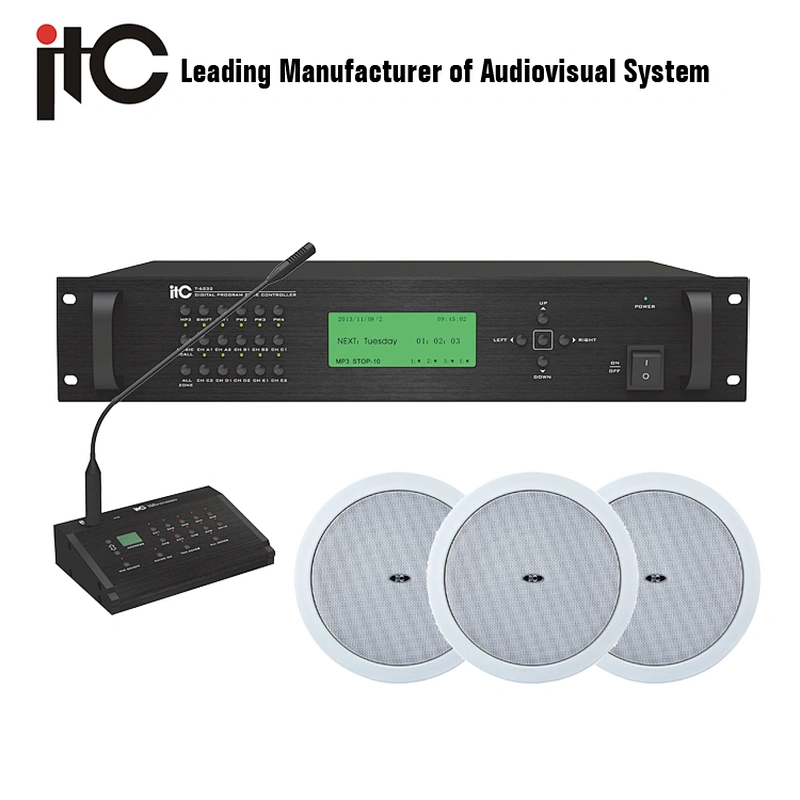

Best Price 10 Zone Weekly Timer Pa System with Wireless Speakers
Your Preferred Choice for Economical PA System
* Back ground music
With internal MP3 player; CD and radio tuner: 1 Controlled via buttons on the front panel, 2 The audio sources read the program to do playing; users could control them freely via software installed in PC;
* Paging
Support local paging and remote paging; users could do remote paging to all zone or designated zone;
* Zoning
Could control 10 zone: Selecting the corresponding buttons on the front panel to achieve zoning control easily and it could be expanded from 10 to 160 via doing cascade.
* Programmable
Support power management, zoning control and auto play;
* Monitoring
With internal monitor to listen to sound playing in any zone easily;
* Voice Alarm
Support all zone alarm, designated zone alarm and adjacent alarm;
Optional
* Panel with/without handhold
System Diagram
Model | T-6232 |
Power Output | ~110V-230V 50/60Hz 4 Program Power+2 AUX power Total Power≤5KW |
Indication Method | 192x64 LCD display, English |
Audio Output | 1KΩ0.775V Unbalance (6.35 RC) |
Voltage Input and Output of Alarm | 0V(Short Circuit) Industrial Standard |
Voltage Output for Power Control | Integrated Terminal Block 0V(Short Circuit) Industrial Standard |
Amplifier Input and Output | Integrated Terminal Block CHA CHB CHC CHD CHE CHA1-A2 CHB1-B2 CHC1-C2 CHD1-D2 CHE1-E2 |
Monitor Power of Speaker | 0.5W |
Monitor Volume Attenuator | -∞~0dB |
Time Mode | 24 hours(hour-minutes-seconds) weekly |
Program Quantity | Total 9pcs(8 normal programs, 1EMC) |
Program Steps | Total 512 Steps, 1 day≤200 Steps |
Communication Protocols | RS422 |
Communication Port | RJ45 |
Communication Speed | 4800bps |
Zone Control | 160 zone(16pcs T-6212(A) 10 zone speaker seletor) |
MP3 Frequency Response | 20Hz~20KHz/ ±1dB |
Mp3 Store Format | Compatible FAT16, FAT32 |
Power Supply | ~110V-230V 50/60Hz |
Dimensions | 484 x 350 x 88mm |
Weight | 6.06Kg |
Product List

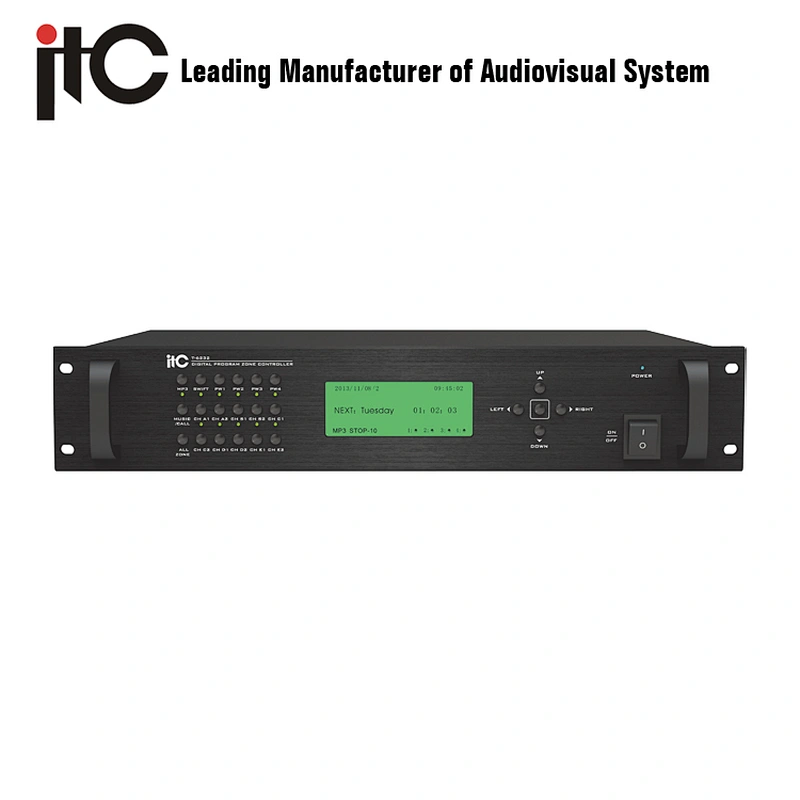

T-6232PA Speaker System Serverx1
T-6212(A)10 Zone Paging Serverx16

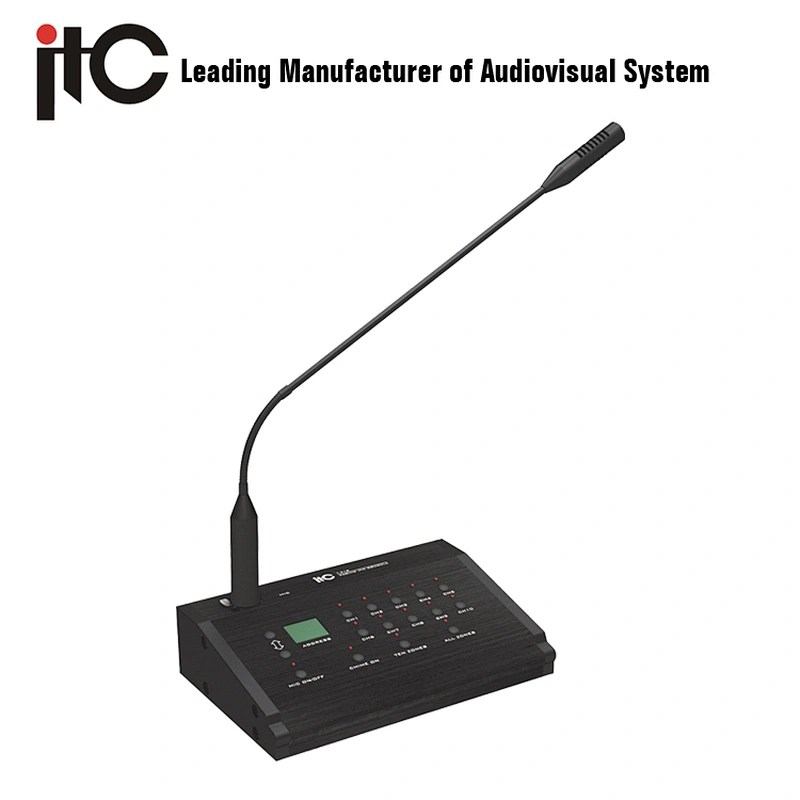

T-218(A)Remote Paging Consolex2
T-621APA Microphonex1
T-6221Programmable CD Playerx1
T-6222Programmable Radio Tunerx1
T-6216Power Sequencerx1
T-6223(A)Alarm Signal Receiverx1
T-1S01Preamplifierx1
T-61500Power Amplifierx2
T-6211(A) Forced Switching Power x2
T-622020 Channel Monitorx1
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
