Hospital 100V 70V 1000W 1500W PA Public Address System Equipment

Hospital 100V 70V 1000W 1500W PA Public Address System Equipment

Model NO.: T-6232 Series-amp
Delivery: FOB
Minimum order quantity: 1 unit
Supply Ability: 1000 unit / Week
Country of Origin: Guangzhou, Shenzhen or HK

Quantity:

Product Description

Place of Origin:CN;GUA
Model Number:T-6232 Series-amp
Brand Name:ITC
Certificate:CCC CE
Rated Power Output:1000W/1500W
Speaker Output:70V, 100V & 4~16Ω
Input Impedance:20KΩ
Output Sensitivity:±385mV
Output Impedance:470Ω
Frequency Response:50Hz~16KHz(+1dB, -3dB )
S/N Ratio:>90dB
THD:Less than 0.3% at 1KHz, 1/3 rated power
Power Consumption:1500W/2300W

Hospital 100V 70V 1000W 1500W PA Public Address System Equipment

Your Preferred Choice for Economical PA System ITC-T-6232-Series-10-Zone-to

Descriptions

Features

*Back ground music

With internal MP3 player; CD and radio tuner: 1 Controlled via buttons on the front panel, 2 The audio sources read the program to do playing; users could control them freely via software installed in PC;

*Paging

Support local paging and remote paging; users could do remote paging to all zone or designated zone;

*Zoning

Could control 10 zone: Selecting the corresponding buttons on the front panel to achieve zoning control easily and it could be expanded from 10 to 160 via doing cascade.

*Programmable

Support power management, zoning control and auto play;

*Monitoring

With internal monitor to listen to sound playing in any zone easily;

*Voice Alarm

Support all zone alarm, designated zone alarm and adjacent alarm;

Optional

*Panel with/without handhold

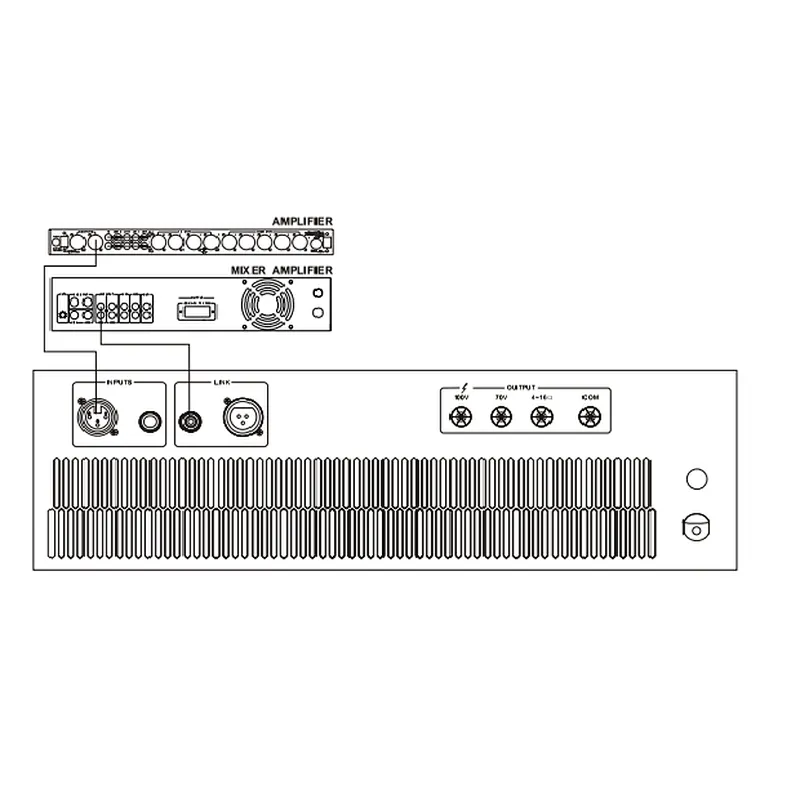

System Diagram

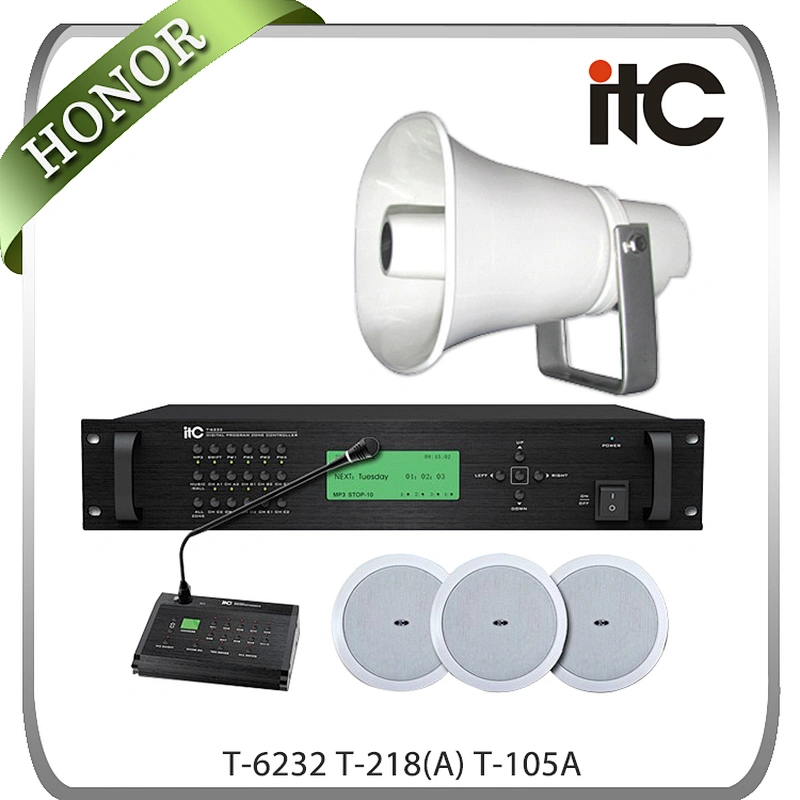

Product List

T-6232PA Speaker System Serverx1

T-6212(A)10 Zone Paging Serverx16
T-218(A)Remote Paging Consolex2
T-621APA Microphonex1
T-6221Programmable CD Playerx1
T-6222Programmable Radio Tunerx1
T-6216Power Sequencerx1
T-6223(A)Alarm Signal Receiverx1
T-1S01Preamplifierx1
T-61500Power Amplifierx2
T-6211(A) Forced Switching Power x2
T-622020 Channel Monitorx1

Specifications

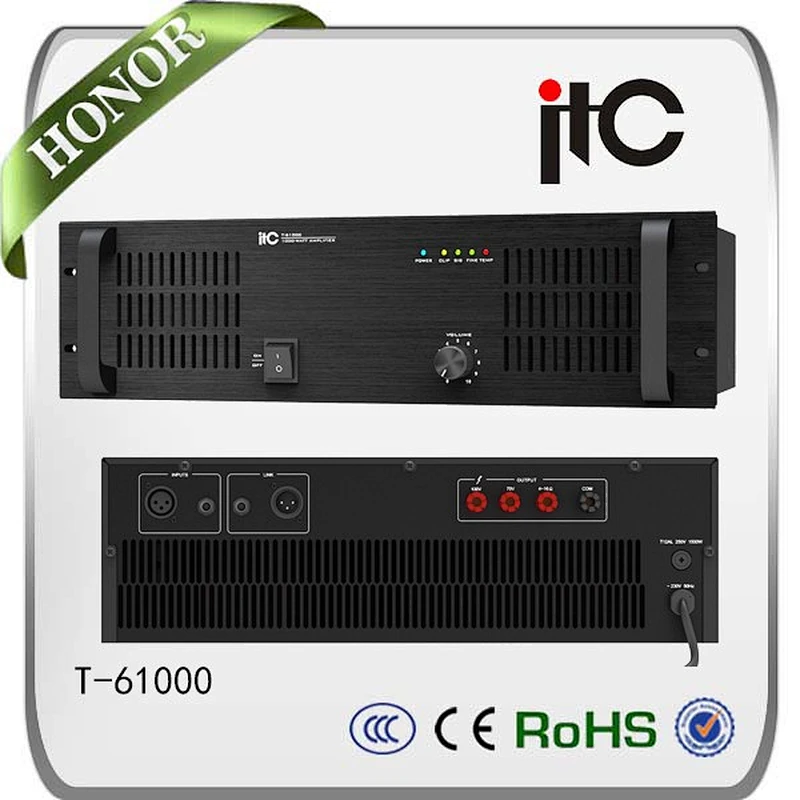

Model	T-61000	T-61500
Rated Power Output	1000W	1500W
Speaker Output	70V, 100V & 4~16Ω
Input Sensitivity & Impedance	±385mV/20KΩ, Balanced XLR Input; 775mV/10KΩ, Unbalanced TRS Input
Output Sensitivity & Impedance	±385mV/470Ω, Balanced XLR output; 775mV/470Ω, Unbalanced TRS output
Frequency Response	50Hz~16KHz(+1dB, -3dB )
S/N Ratio	>90dB
THD	Less than 0.3% at 1KHz, 1/3 rated power
Ground	Connected to the cabinet or suspension
Cooling	Fan starts up automatically when temp. >55℃
Protection	Short, overload, over-heat, etc
Power Supply	~110V/60Hz or ~230V/50Hz or DC 24V
Power Consumption	1500W	2300W
Weight	25.8Kg	27.08Kg
Dimension	484x530x88mm
Finish	Panel: aluminum, black Case: Stainless steel plate, black
