ITC T-6232 5 Source 10 Zone Programmable Public Address System

Quantity:

ITC T-6232 5 Source 10 Zone Public Address System

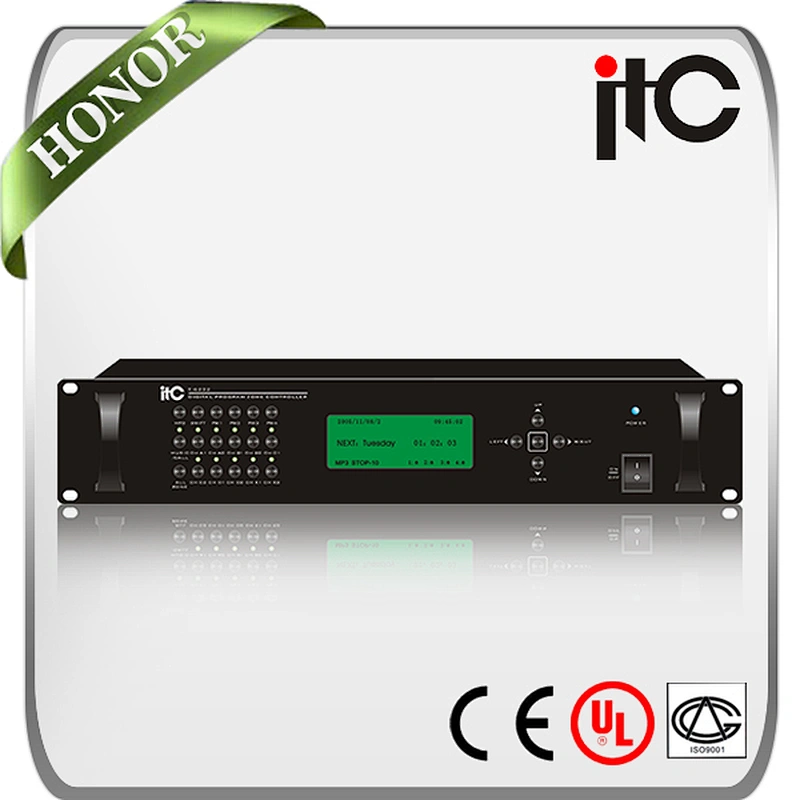

Front Panel

ITC T-6232 5 Source 10 Zone Public Address System

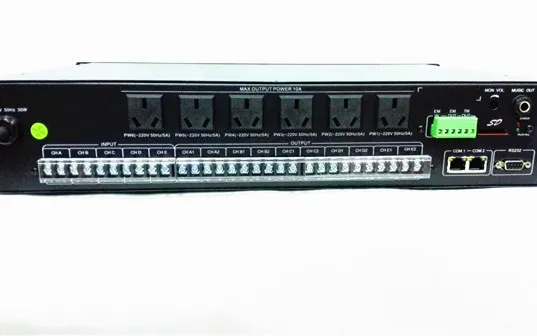

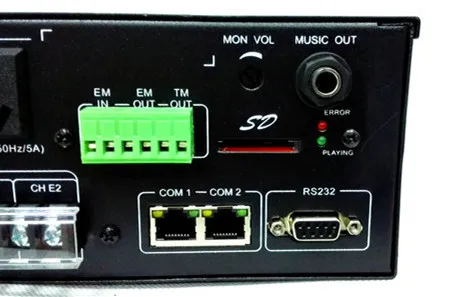

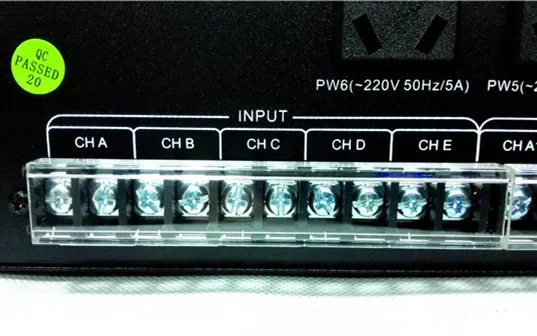

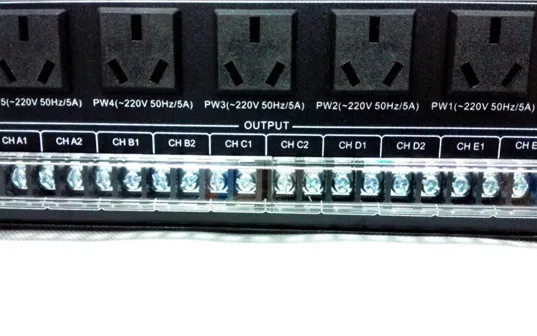

Rear Panel

ITC T-6232 5 Source 10 Zone Public Address System

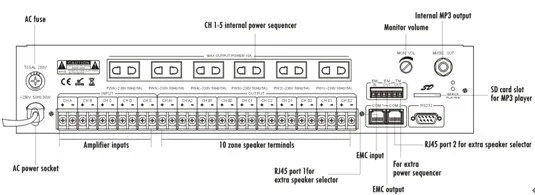

Connection

ITC T-6232 5 Source 10 Zone Public Address System

Advantages

ITC T-6232 5 Source 10 Zone Public Address System

It provides users with keys to do programming, and the result will be displayed in the screen;
4 main program and 1 spare program are available.
Internal MP3 player could be broadcasted programably and the store could be expandable. Several available hot keys to control MP3 player.
With 5 amp input and 10 speaker output, that means 1 signal is divided to 2 channel output.
Using CAT 5 bus control, 16 T-6232 could work together so that the system includes up to 160 zones.
It could operate lastly, and the num. of programmed music is up to 99.
With monitor for audio output.
With 4 programmable power controller and 2 AUX power socket, and manual/Auto. is available. Port for external power sequencer is also available.
When fire signal triggers, all power supply controlled by T-6232 work so that all zones are in operation status. When reset, T-6232 turns to work regularly.
With RS-232 to work with PC.
When controlled by PC, users could finish the schedule of programming by PC.
It’s with function of remote control. And users’re able to custom the key one the remote controller by through PC.
It supports off-line operation.
Time in the host would be updated by PC.

Specification

ITC T-6232 5 Source 10 Zone Public Address System

Model	T-6232
Power Output	~110V/60Hz or ~230V/50Hz 4 Program Power+2 AUX power Total Power 5KW
Functional Button	Light touch press buttons include 4 power switch buttons, 1 MP3 control button, 1 backup program switch, 10 zones speaker selector button, all zones button, 1 music or paging switch button. 4 menu buttons for switch, 1 ok button
Indication	192x64 LCD display, English
Audio Output	1Kohm 0.775V Unbalance(6.35 RC) 0V(Short Circuit) Industrial Standard
Voltage Input and Output of Alarm	Integrated Terminal Block 0V(Short Circuit) Industrial Standard
Voltage Output for Power Control	Integrated Terminal Block CHA CHB CHC CHD CHE CHA1-A2 CHB1-B2 CHC1-C2 CHD1-D2 CHE1-E2
Monitor Power of Speaker	0.5W
Monitor Volume Attenuator	−∞~0dB
Time Mode	24 hours(hour-minutes-seconds) weekly
Program Quantity	Total 7(6 regular programs, 1 EMC)
Program Steps	Total 512 Steps, 1 day 200 Steps
Communication Protocols	RS422
Communication Port	RJ45
Communication Speed	4800bps
Zone Control	160 zone(16pcs T-6217 10 zone speaker seletor)
MP3 Frequency Response	20Hz~20KHz/ 1dB
Mp3 Store Format	Compatible FAT12, FAT16, FAT32
Power Supply	~110V/60Hz or ~230V/50Hz
Dimensions	484x303x88mm
Weight	6.06Kg
