- Place of Origin:CN;GUA
- Model Number:TS-200PI
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:2 (2.0)
- Stereo / Parallel 8Ω X 2:200W x 2
- Stereo / Parallel 4Ω X 2:300W x 2
- Bridge 8Ω:600W
- Input Sensitivity:0.775V/1V/1.44V
- Frequency Response:20-20KHz/±1dB
- S/N Ratio:≥90dB
- T.H.D.:≤0.05%
- Power Supply:~ 220-240V 50/60Hz
- Dimensions (L x W x H):483 x 394 x 88mm
- Cooling:Fan cooling

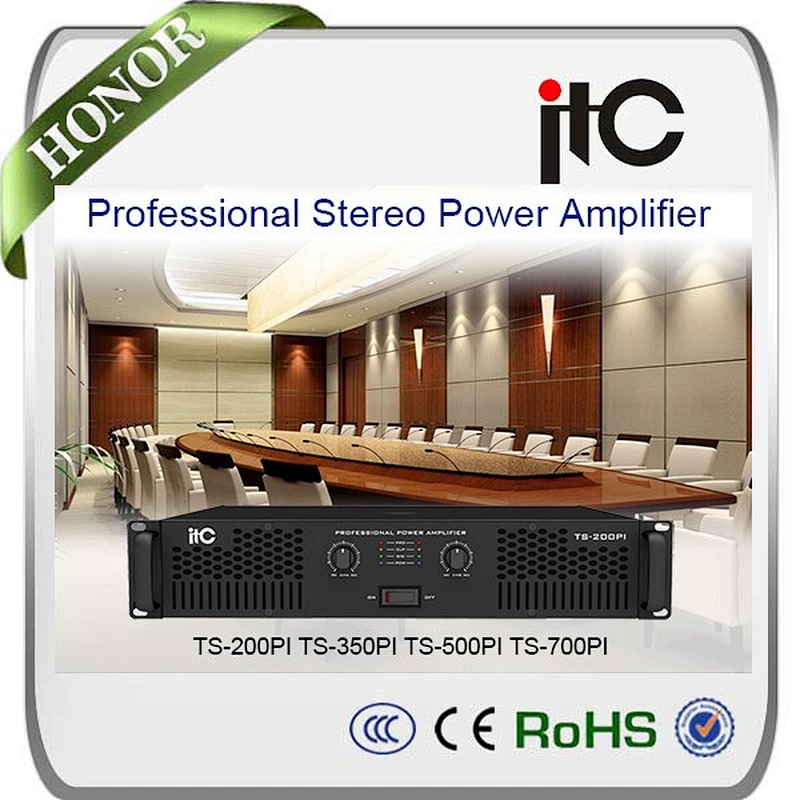

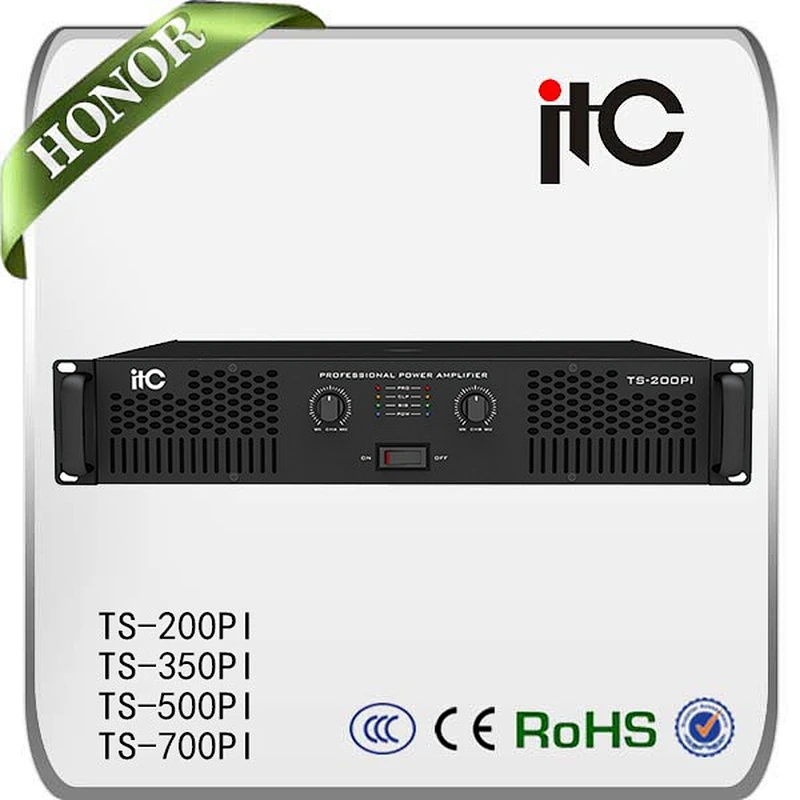

Professional Power Amplifier Sound Standard Techno 4
Output Power (20-20KHz/THD≤1%) | TS-200PI | TS-350PI | TS-500PI | TS-700PI | |
Stereo / Parallel 8Ω X 2 | 200W x 2 | 350W x 2 | 500W x 2 | 700W x 2 | |
Stereo / Parallel 4Ω X 2 | 300W x 2 | 530W x 2 | 730W x 2 | 1050W x 2 | |
Bridge 8Ω | 600W | 1060W | 1460W | 2100W | |
Connecting Plug | XLR, TRS interface | ||||
Voltage Gain (@1KHz) | 32dB | 34.4dB | 36.2dB | 37.7dB | |
Input Sensitivity | 0.775V/1V/1.44V | ||||
Input Impedance | 10KΩunbalanced, 20KΩbalanced | ||||
Frequency Response (@ 1W Power ) | 20-20KHz/±1dB | ||||
THD+N | ≤0.05% | ||||
S/N Ratio (A-weighted) | ≥90dB | ≥95dB | |||
DampingCoefficient(@ 1KHz) | ≥200@ 8 ohms | ||||
Resolution (@1KHz) | ≥80dB | ||||
Cooling Mode | Fan cooling | ||||
Power Supply | ~ 220-240V 50/60Hz | ||||
Maximum PowerConsumption | 900W | 1600W | 2200W | 3150W | |
Dimensions (L x W x H) | 483 x 394 x 88mm | 483 x 464 x 88mm | |||
Weight | 11.2Kg | 12.6Kg | 15.8Kg | 17.9Kg | |
* Industrial modeling steel panel, professional design with durable surface, the panel can be folded wash by the air filter design, removable cleaning cooling vents.
* Start soft start to prevent power to the grid absorb a large current, interference with other electrical equipment.
* Intelligent control forced cooling designs, low fan noise, and high thermal efficiency.
* Two-channel amplifier input sensitivity can select third gear, easy to accept wide input amplitude range of the signal source.
* Complete and reliable security protection measures and working status indicator (short circuit, overload, DC and overheating protection, transformer overheating protection), allow users to be assured use.
* Intelligent clipping limiter controls the power module and the speaker system works in a safe range.

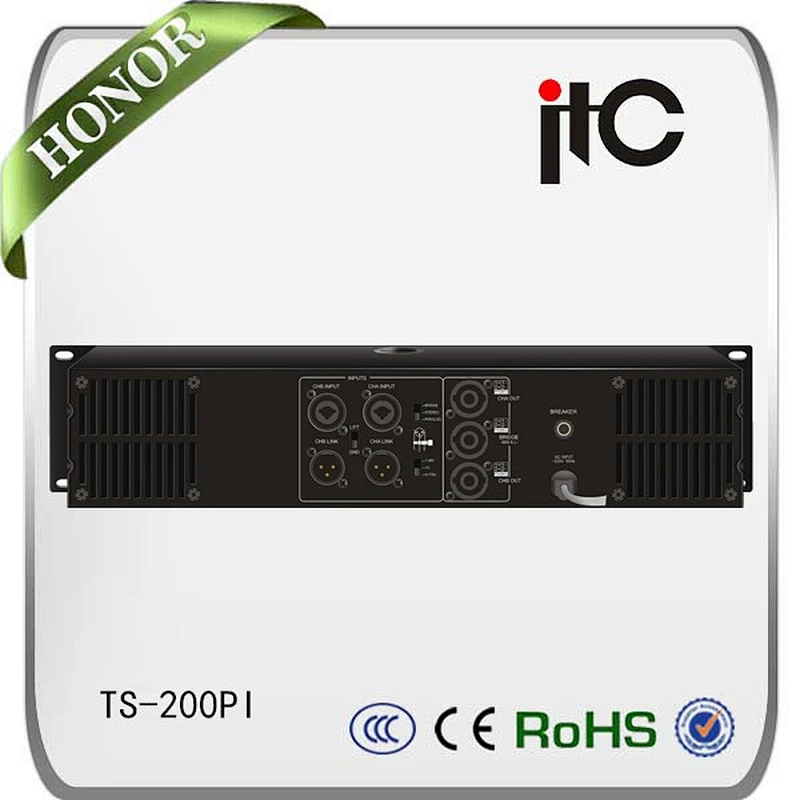

* Standard XLR + TRS1 / 4"composite input interface, simple interface is more convenient to meet different user needs.
* High-quality large-capacity transformer and a low resistance electrolytic filter, ensure a large dynamic operating handle it.
* Adapting to different situations, choose the optional stereo or bridged mode.
* The input pin to ground and suspension seat ground control.
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, Led video wall and Lighting system , etc.
What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 600 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
