- Place of Origin:CN;GUA

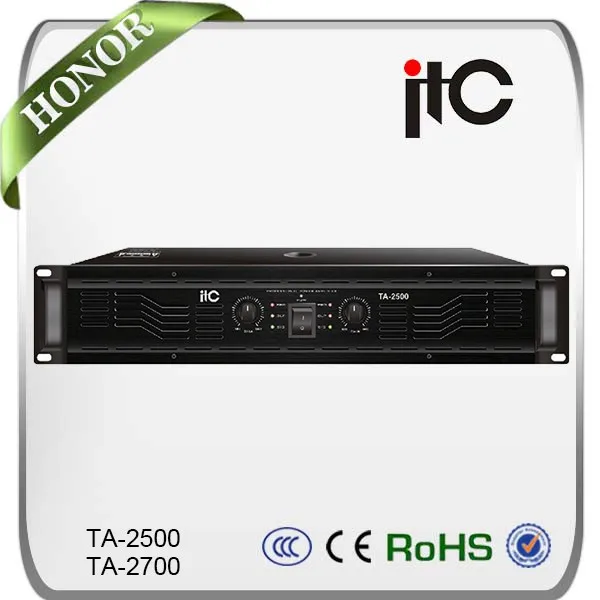

- Model Number:TA-2500
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:2 (2.0)
- Stereo / Parallel 8Ω X 2:500W x 2
- Stereo / Parallel 4Ω X 2:750W x 2
- Bridge 8Ω:1500W x 2
- Input Sensitivity:0dBu(1V)
- Frequency Response:20-20KHz/±1dB
- S/N Ratio:≥100dB
- T.H.D.:≤0.05%
- Power Supply:~ 220-240V 50/60Hz
- Dimensions (L x W x H):483 x 88 x 494mm
- Cooling:Fan cooling

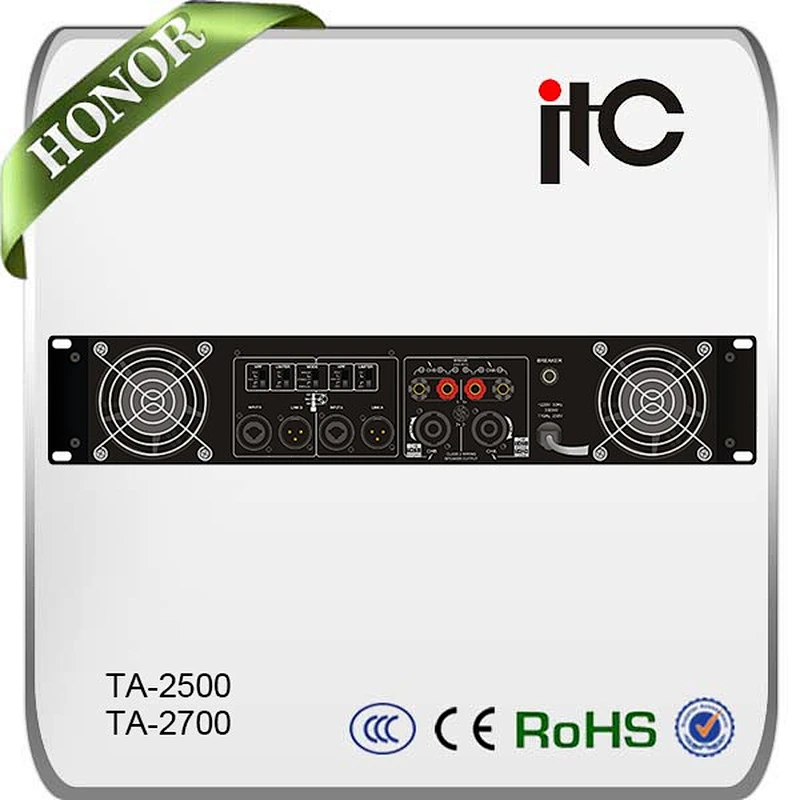

Long functional life 8 channel professional audio power amplifier mixer

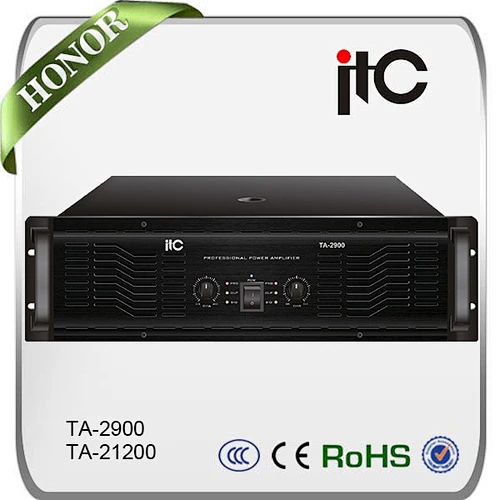

Output Power (20-20KHz/THD≤1%) | TA-2500 | TA-2700 | TA-2900 | TA-21200 |
Stereo/Parallel 8Ω X 2 | 500W x 2 | 700W x 2 | 900W x 2 | 1200W x 2 |
Stereo/Parallel 4Ω X 2 | 750W x 2 | 1050W x 2 | 1350W x 2 | 1800W x 2 |
Stereo/Parallel 2Ω X 2 | 1125W x 2 | 1500W x 2 | 2000W x 2 | 2700W x 2 |
Bridged 8Ω | 1500W x 2 | 2100W x 2 | 2600W x 2 | 3600W x 2 |
Bridged 4Ω | 2200W x 2 | 3000W x 2 | 4000W x 2 | 5400W x 2 |
Integrated Socket | XLR, TRS interface | |||
Voltage Gain (@1KHz) | 36dB | 37.7dB | 38.5dB | 40dB |
Input Sensitivity | 0dBu(1V) | |||
Input Impedance | 10KΩ Unbalance, 20KΩ balance | |||
Frequency Response (@1W Power) | 20-20KHz/±1dB | |||
THD+N | ≤0.05% | |||
S/N Ratio (A Weighting) | ≥100dB | |||
Damping (@ 1KHz) | ≥300@ 8ohms | |||
Resolution (@1KHz) | ≥80dB | |||
Protection Mode | Over-current protection, DC protection, short circuit protection | |||
Indicator | Power, protection, distortion | |||
Cooling Method | Fan cooling | |||
Power Supply | ~ 220V-240V 50/60Hz | |||
maximum Power Consumption | 3300W | 4500W | 6000W | 8000W |
Dimensions (L x W x H) | 483 x 88 x 494mm | 483 x 132 x 524mm | ||
Weight | 17.4Kg | 19.6Kg | 30Kg | 32Kg |
* Industrial modeling steel panel, professional design and durable surface, anti-dust mesh panel with folding structure design, removable cleaning cooling vents.
* Power on soft-start, to prevent absorbing a large current of the power grid, from interference with other electrical equipment.
* Intelligent control forced cooling design, low fan noise, high cooling efficiency etc.
* Built-in intelligent limiter system, control the power module and the speaker system work in a safe range.
* Built-in 30Hz / 50Hz high-pass filter.
* Multiple modes: stereo, bridge, parallel.
* Abundant reserve power, with 2R low-impedance output, high-fidelity and perfect sound quality.
* High quality transformer, low resistance and large capacity electrolytic filter, ensure large dynamic work smoothly.
* Class-H efficient power amplifier, comprehensive and reliable security protection measures and working status indicator (short circuit, overload, DC and overheating protection, transformer
overheating protection), let users at easy use.
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our product are complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
By now, we have been successfully conducting both import and export activities worldwide for 10 years with suppliers and buyers.
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
Send Message

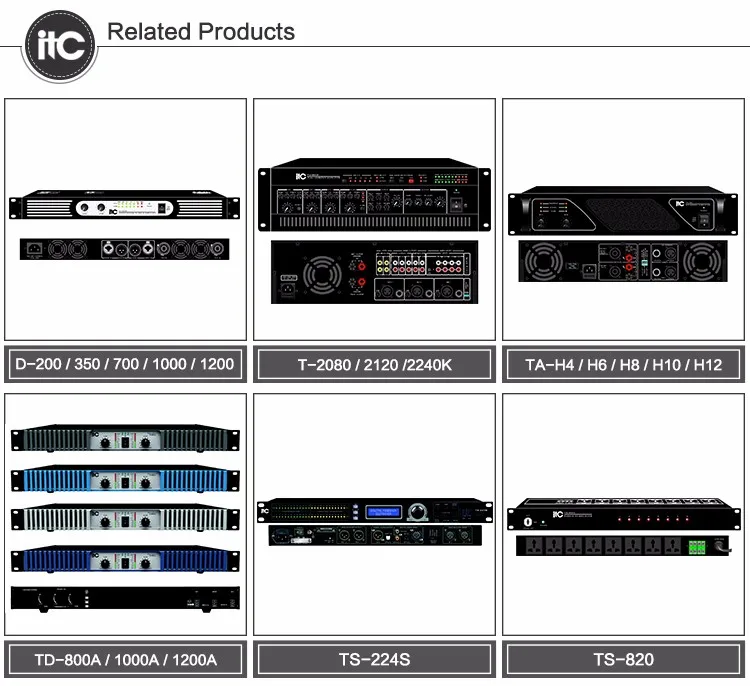

Related Products
