- Place of Origin:CN;GUA
- Model Number:TR-800A
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:2 (2.0)
- Stereo/Parallel 8Ωx2:1200W x2
- Stereo/Parallel 4Ωx2:1800W x2
- Bridged 8Ω:3600W x2
- Connector:XLR, TRS
- Frequency Response:20 to 20KHz/±1dB
- Voltage Gain (@1KHz):40dB
- Input Sensitivity:0dBu(1V)
- Input Impedance:10KΩ unbalanced, 20KΩ balanced
- SNR (A Weighted):≥95dB
- THD+N:≤0.05%

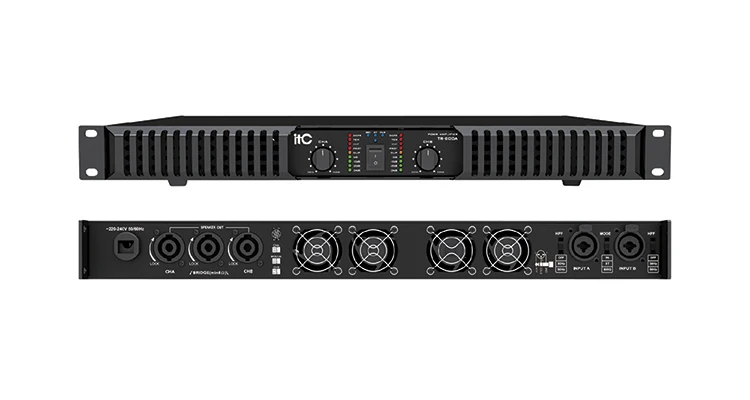

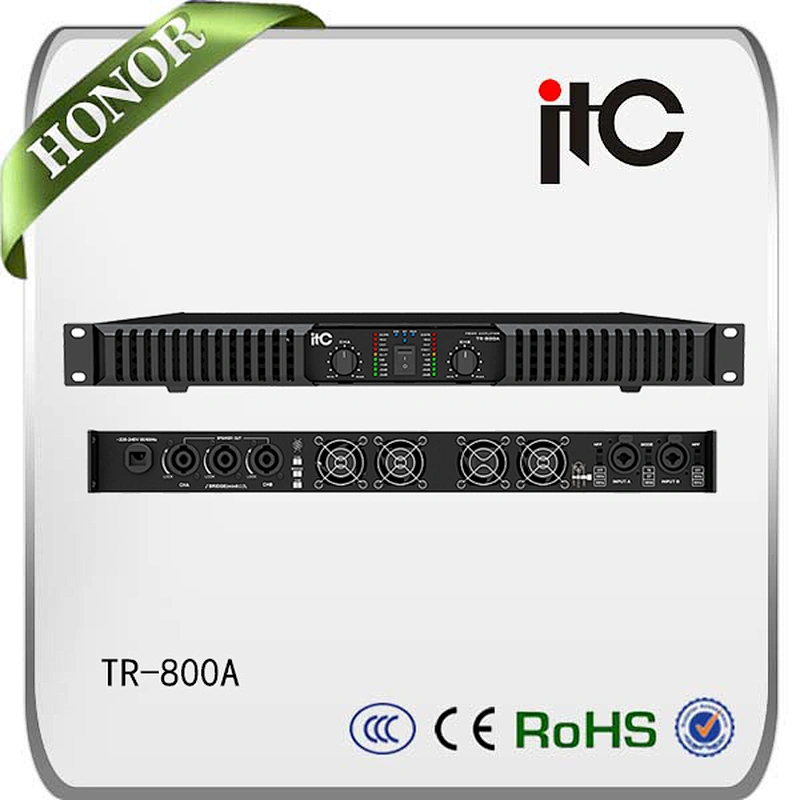

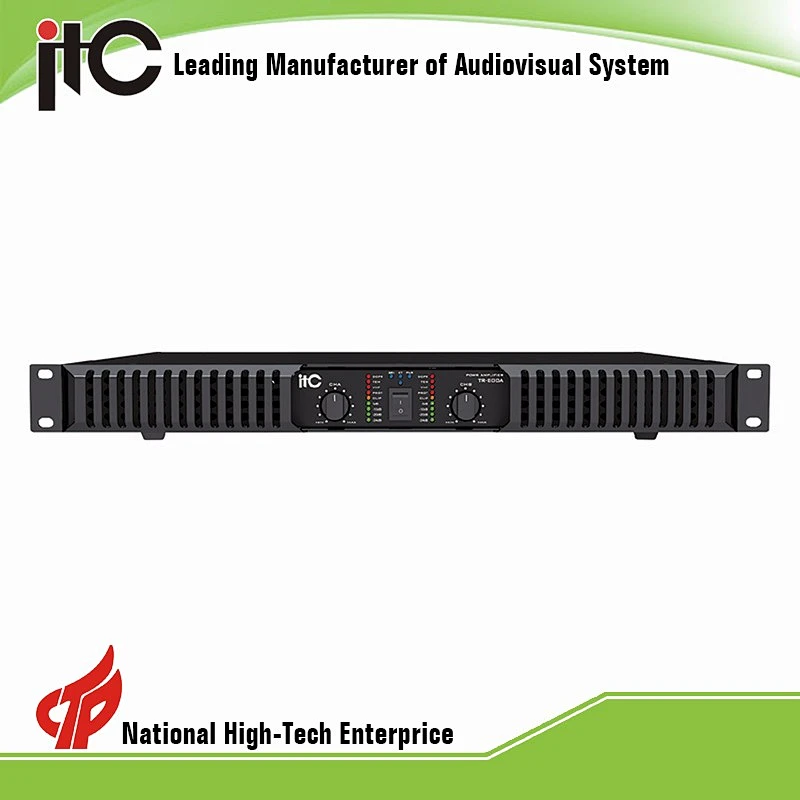

Professional Stereo Parallel Bridge 2 way Power Amplifier 5000 Watts
Features:
1)In 1U design, using technique of real-time power tracking amplifier, high performance amplifier circuit design, hifi sound quality to restore the quality of audio sources perfectly;
2)Support soft-start to avoid causing interference to other devices, when it’s turned on and absorbs large current;
3)With intelligent clipping distortion and over-current pressure limit system;
4)With 30/50Hz high pass filter;
5)With auto temperature control fan cooling system;
6)Multiple modes: stereo, bridged and parallelism;
7)Complete and reliable safety precautions, working mode indicators and multiple detection system for over-heat, over-pressure, low-voltage, overflowing, short, etc.
Output Power (20 to 20KHz/THD≤1%) | TR-800A | TR-1000A | TR-1200A |
Stereo/Parallel 8Ωx2 | 800W x2 | 1000W x2 | 1200W x2 |
Stereo/Parallel 4Ωx2 | 1200W x2 | 1500W x2 | 1800W x2 |
Bridged 8Ω | 2400W x2 | 3000W x2 | 3600W x2 |
Connector | XLR, TRS | ||
Voltage Gain (@1KHz) | 38dB | 39dB | 40dB |
Input Sensitivity | 0dBu(1V) | ||
Input Impedance | 10KΩ unbalanced, 20KΩ balanced | ||
Frequency Response (≤1W) | 20 to 20KHz/±1dB | ||
THD+N | ≤0.05% | ||
SNR (A Weighted) | ≥90dB | ≥90dB | ≥95dB |
Damping Factor (@1KHz) | ≥200 @8ohm | ||
Separating Degree (@1KHz) | ≥70dB | ||
Protection | Over-pressure, low-voltage, overflowing, short, DC protection | ||
Indicators | Power, temp. Protection, overflowing protection, clipping distortion, short protection, etc | ||
Cooling Method | Fan cooling | ||
Power Supply | AC 220V to AC 240V 50/60Hz | ||
Power Consumption | 2800W | 3300W | 4000W |
Dimension (LxWxH) | 483x390x44mm | ||
Weight | 8Kg | 8.2Kg | 8.5Kg |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
