- Place of Origin:CN;GUA
- Use:Home Theatre
- Model Number:T-103E
- Brand Name:ITC
- Type:Passive
- Channels:1
- Use:Public Address
- Power Taps @100V:1.5W, 3W
- Power Taps @70V:0.75W, 1.5W
- Impedance:Black: Com, Blue: 6.7KΩ, White: 3.3KΩ
- SPL(1W/1M):89dB
- Max. SPL (Rated W/1M):94dB
- Frequency Response (-10dB):80-16KHz
- Finish:Baffle: ABS, White Grille: ABS, White
- Speaker Driver:3 inch

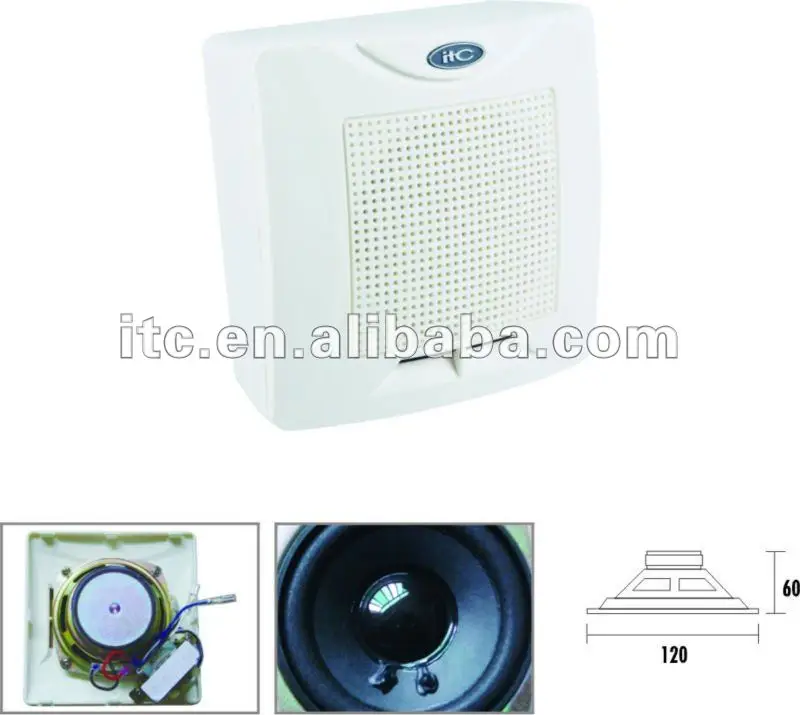

- Dimensions:120 *120 *60mm
- Weight:0.5Kg

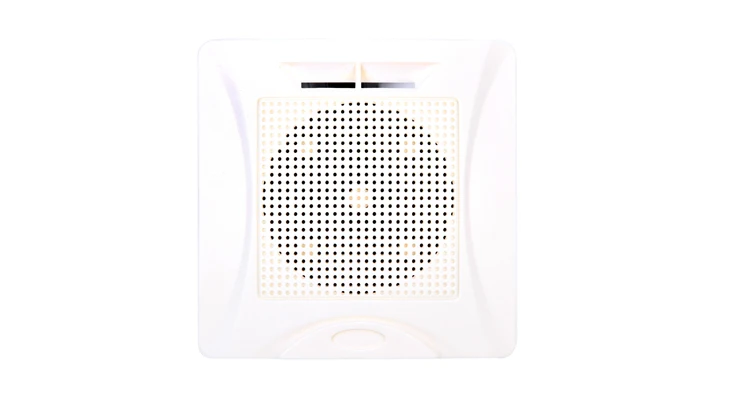

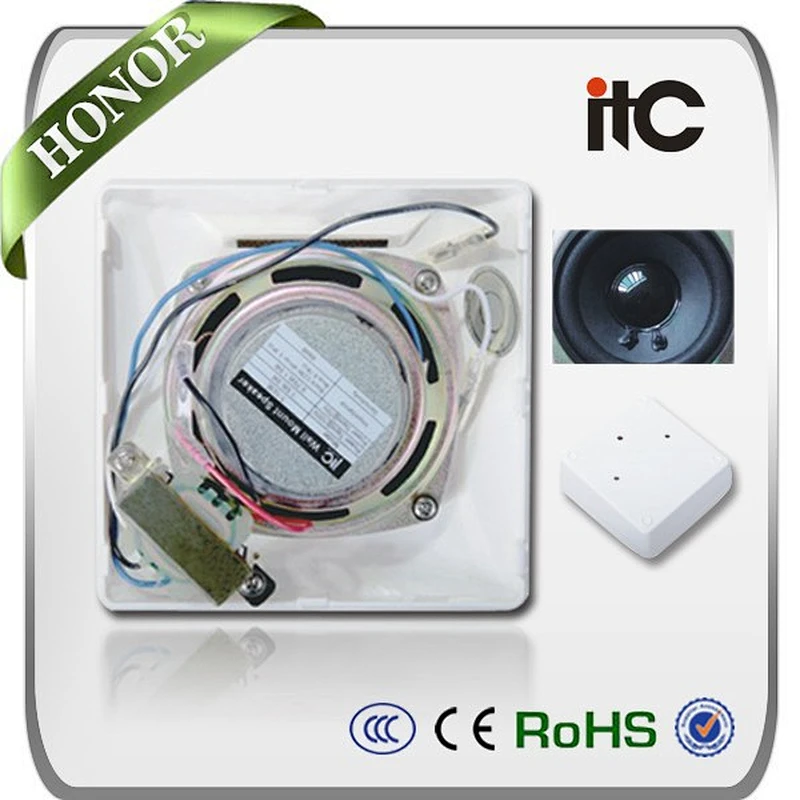

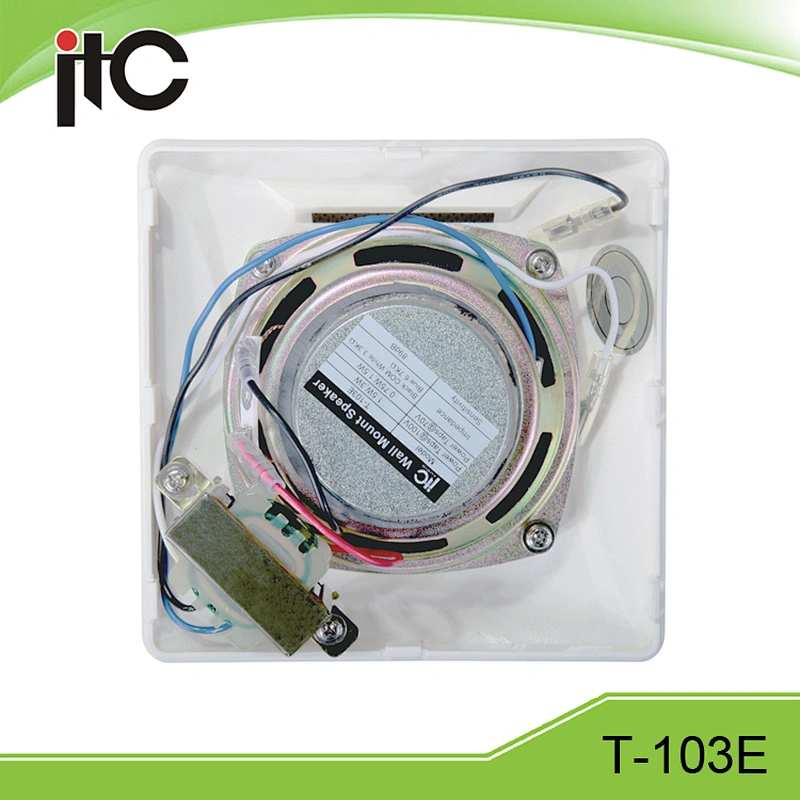

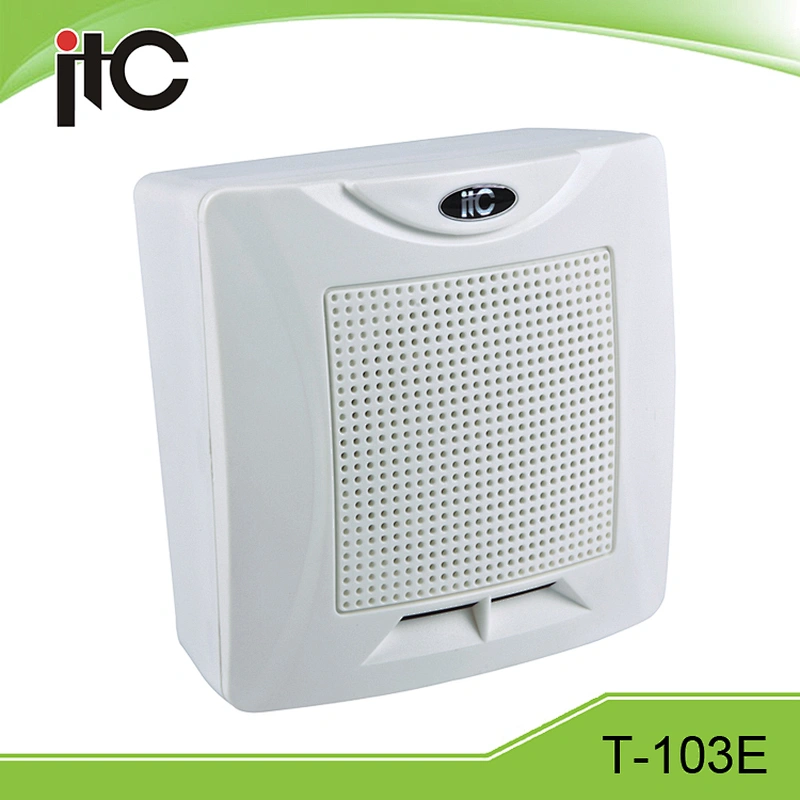

ITC T-103E Guangdong Clear 3 inch Wall Mount Mini Speaker 3W

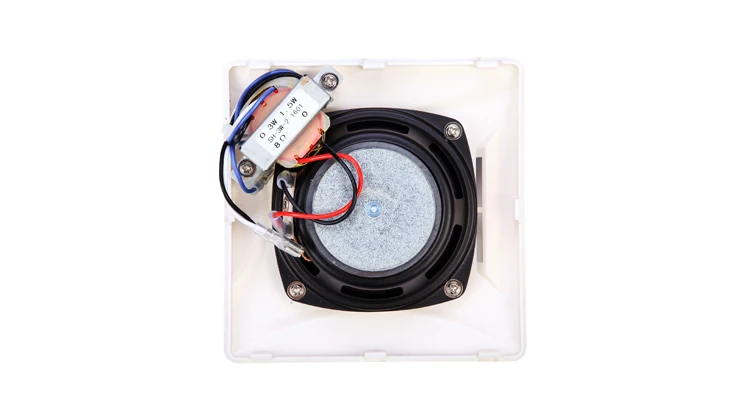

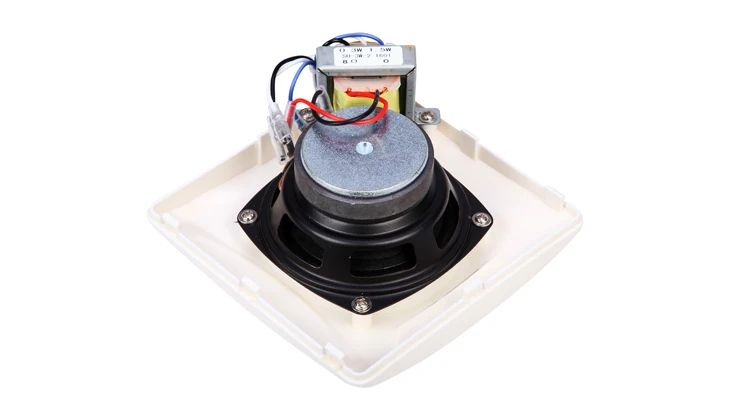

- Built in 100V/70V transformer
- Wall mount and surface mount type mini speaker
- 3"full range waterproof mini speaker unit
- IP66 waterproof level
- Power taps 1.5w-3w @100V

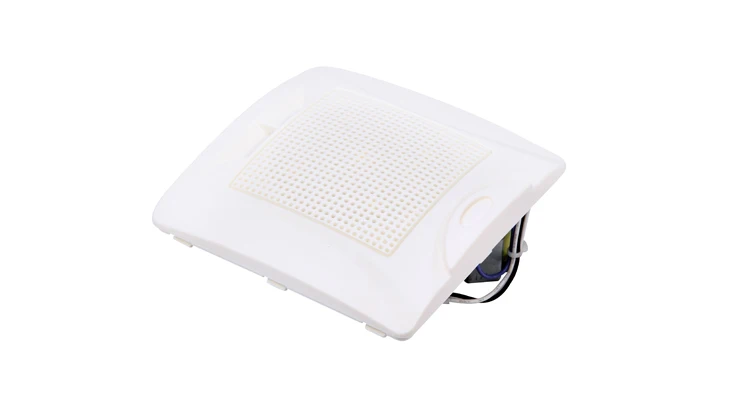

- ABS enclosure and ABS grille in white
The T-103E is a waterproof wall mount mini speaker built-in 70V/100V transformer. The 70V/100V transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple speakers.
The built-in 3"full range waterproof speaker driver is designed of wide frequency response 80-16kHz, the multiple power taps 1.5W & 3W are helpful for different applications varies from room size and ambient noise surroundings. The ABS enclosure and ABS grille are of white color. Easy and secure wall mount installation through the supplied mounting holes
It is specially designed for bathroom, clean room, washing room, sauna room and corridor applications where is humid.
Model | T-103E |
Power Taps @100V | 1.5W, 3W |
Power Taps @70V | 0.75W, 1.5W |
Impedance | Black: Com, Blue: 6.7KΩ, White: 3.3KΩ |
SPL(1W/1M) | 89dB |
Max. SPL (Rated W/1M) | 94dB |

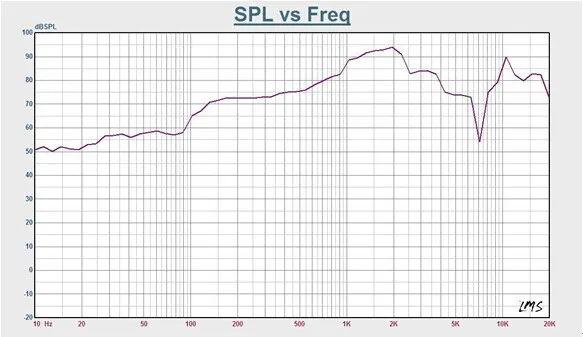

Frequency Response (-10dB) | 80-16KHz |
Finish | Baffle: ABS, White Grille: ABS, White |
Speaker Driver | 3" |
Dimensions | 115x115x60mm |
Weight | 0.5Kg |
Mounting | Hook |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
