ITC T-529UA Magic Sing Along Karaoke Microphones Wireless

Model NO.: T-529UA
Delivery: FOB
Minimum order quantity: 100 units
Supply Ability: 1000 units / Week
Country of Origin: Guangzhou, Shenzhen and HK

Quantity:

Product Description

Place of Origin:CN;GUA
Use:Karaoke Microphone
Model Number:T-529UA
Brand Name:ITC
Style:Handheld Microphone
Communication:Wireless
Receiving Mode:Two Frequency Conversion
MF:110MHz, 10.7MHz
Antenna Interface:BNC/50 ohm
Sensitivity:12 dBμV (80dBS/N)
Adjustment Range for Sensitivity:12-32 dBμV
Spur Suppression:≥75dB
Output Interface Type:Balanced and unbalanced
Max. Output Level:+10dBV
Power Supply:DC 12 ~ 18V 500mA
Working Temp.:-10℃ ~ + 40℃

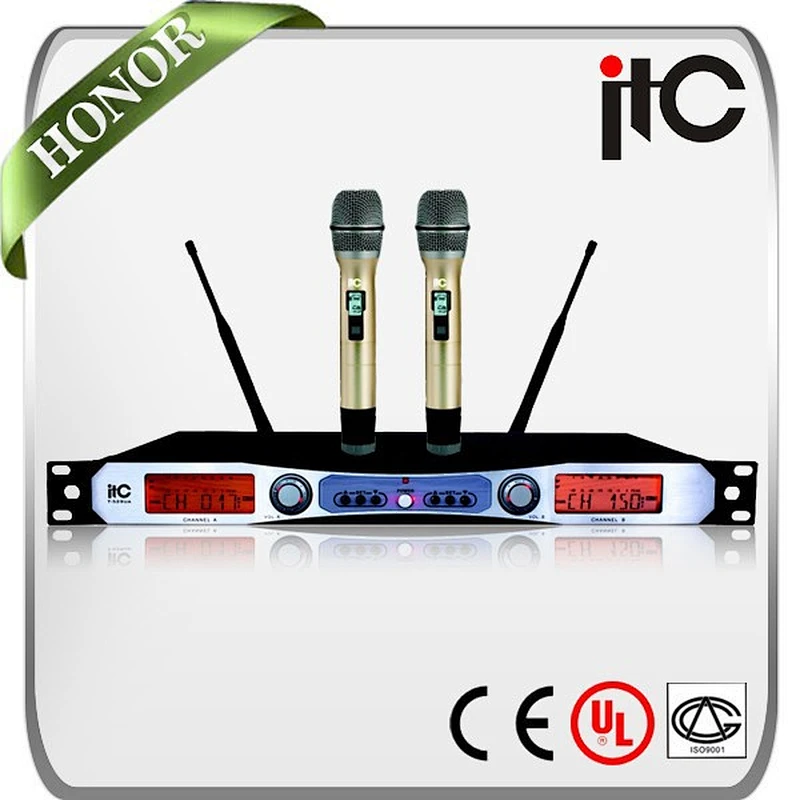

Appearance

ITC T-529UA Magic Sing Along Karaoke Microphones Wireless

Feature

ITC T-529UA Magic Sing Along Karaoke Microphones Wireless

1)It’s in rack mount design 1U case of metal according to the standard of EIA

2)To adopt latest PLL tech. and MCU control system

3)Frequency matching could be operated manually or automatically

4)With LCD to display complete status

5)With the function of automatic IR frequency lock with transmitter

6)Rear antenna adopts separate design; With tech. of dual antenna grading auto. true diversity receiving; With dual mute circuit for noise lock; The distance is long

7)Rear potentiometer is to adjust sensitivity. When sensitivity is turned to higher, the distance is longer; Otherwise, the noise is lower

8)With indicator to show the interference by noise

System Index

ITC T-529UA Magic Sing Along Karaoke Microphones Wireless

System Index
Frequency Range	UHF 640 to 830MHz, Total 2 Band
Modulation	FM
Adjustable Range	50MHz
Quantity of Channels	600
Channel Separation	250KHz
Frequency Stability	±0.005%
Dynamic Range	100dB
Max. Frequency Offset	±45KHz
Frequency Response	80Hz-18KHz (±3dB)
S/N Ratio	>105dB
Distortion	≤0.5%
Working distance	100 m (Openness)

Receiver Index

ITC T-529UA Magic Sing Along Karaoke Microphones Wireless

Receiver Index
Receiving Mode	Two Frequency Conversion
MF	110MHz, 10.7MHz
Antenna Interface	BNC/50 ohm
Sensitivity	12 dBμV (80dBS/N)
Adjustment Range for Sensitivity	12-32 dBμV
Spur Suppression	≥75dB
Output Interface Type	Balanced and unbalanced
Max. Output Level	+10dBV
Power Supply	DC 12 ~ 18V 500mA
Working Temp.	-10℃ ~ + 40℃
Dimension	420 x 44 x 180mm
Weight	About 2.5Kg

Microphone Index

ITC T-529UA Magic Sing Along Karaoke Microphones Wireless

Microphone Index
Antenna	Handheld Microphone is with Internal Antenna
Output Power	Max.: 30mW; Min.: 3mW
Spur Suppression	-60dB
Power Supply	2-segment AA Batteries at 1.5V
Working Time	30mW: ≥10 hours, 3mW: ≥15 hours
