- Power Supply:~110V/60Hz or ~230V/50Hz
- Indication:192x64 LCD display, English
- Communication Protocol:RS422
- Communication Port:RJ45
- Audio Output:1Kohm 0.775V Unbalance(6.35 RC) 0V(Short Circuit) Industrial Standard
- Program Steps:Total 512 Steps, 1 day 200 Steps
- MP3 Frequency Response:20Hz~20KHz/ ±1dB
- Monitor Power of Speaker:0.5W
- Program Quantity:Total 7(6 regular programs, 1 EMC)
- Warranty:3 Years
- Special Features:Remote Control
- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:T-6223
- Certification:ce

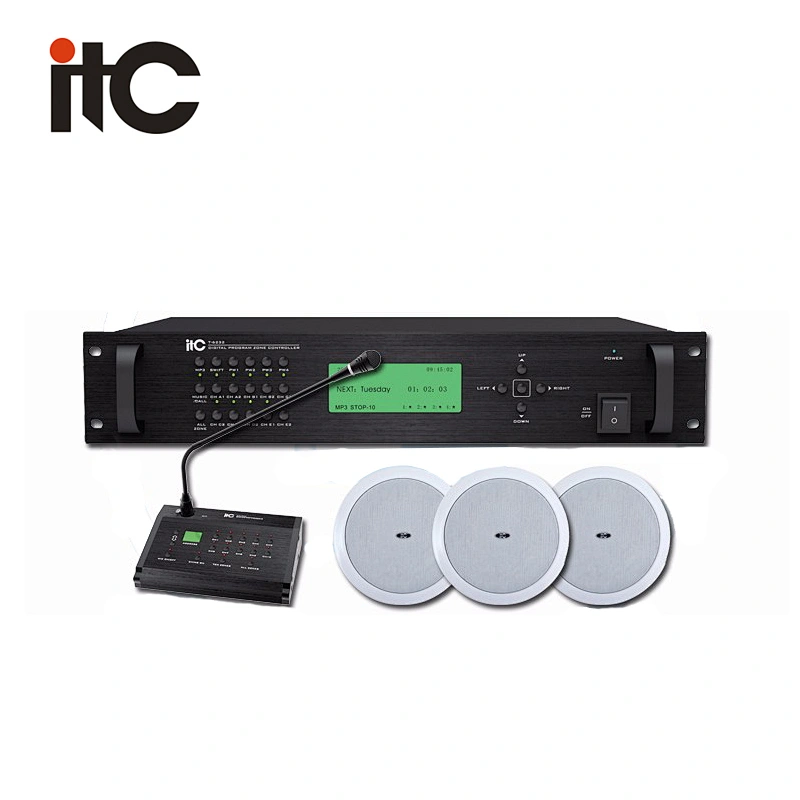

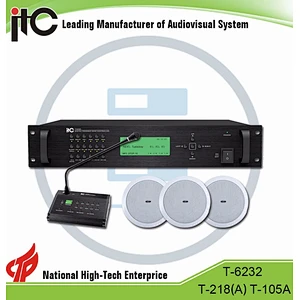

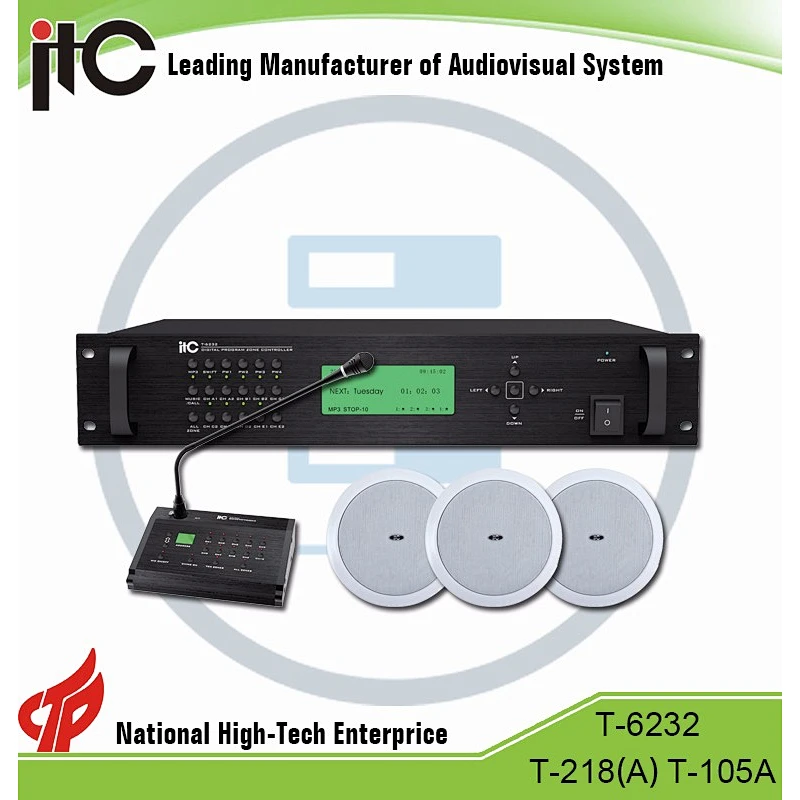

ITC T-6223(A) PA System Used Fire Signal Collector, Voice Alarm, Addressable Fire Alarm System
Your Preferred Choice for Economical PA System
*Back ground music
With internal MP3 player;CD and radio tuner: 1 Controlled via buttons on the front panel, 2 The audio sources read the program to do playing;users could control them freely via software installed in PC;
*Paging
Support local paging and remote paging; users could do remote paging to all zone or designated zone;
*Zoning
Could control 10 zone: Selecting the corresponding buttons on the front panel to achieve zoning control easily and it could be expanded from 10 to 160 via doing cascade.
*Programmable
Support power management, zoning control and auto play;
*Monitoring
With internal monitor to listen to sound playing in any zone easily;
*Voice Alarm
Support all zone alarm, designated zone alarm and adjacent alarm;
Optional
*Panel with/without handhold
System Diagram
Model | T-6232 |
Power Output | ~110V-230V 50/60Hz 4 Program Power+2 AUX power Total Power≤5KW |
Indication Method | 192x64 LCD display, English |
Audio Output | 1KΩ0.775V Unbalance (6.35 RC) |
Voltage Input and Output of Alarm | 0V(Short Circuit) Industrial Standard |
Voltage Output for Power Control | Integrated Terminal Block 0V(Short Circuit) Industrial Standard |
Amplifier Input and Output | Integrated Terminal Block CHA CHB CHC CHD CHE CHA1-A2 CHB1-B2 CHC1-C2 CHD1-D2 CHE1-E2 |
Monitor Power of Speaker | 0.5W |
Monitor Volume Attenuator | -∞~0dB |
Time Mode | 24 hours(hour-minutes-seconds) weekly |
Program Quantity | Total 9pcs(8 normal programs, 1EMC) |
Program Steps | Total 512 Steps, 1 day≤200 Steps |
Communication Protocols | RS422 |
Communication Port | RJ45 |
Communication Speed | 4800bps |
Zone Control | 160 zone(16pcs T-6212(A) 10 zone speaker seletor) |
MP3 Frequency Response | 20Hz~20KHz/ ±1dB |
Mp3 Store Format | Compatible FAT16, FAT32 |
Power Supply | ~110V-230V 50/60Hz |
Dimensions | 484 x 350 x 88mm |
Weight | 6.06Kg |
Product List
T-6232PA Speaker System Serverx1
T-6212(A)10 Zone Paging Serverx16
T-218(A)Remote Paging Consolex2
T-621APA Microphonex1
T-6221Programmable CD Playerx1
T-6222Programmable Radio Tunerx1
T-6216Power Sequencerx1
T-6223(A)Alarm Signal Receiverx1
T-1S01Preamplifierx1
T-61500Power Amplifierx2
T-6211(A) Forced Switching Power x2
T-622020 Channel Monitorx1
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
