- Place of Origin:CN;GUA
- Use:Home Theatre
- Model Number:T-775H
- Brand Name:ITC
- Type:Passive
- Channels:2 (2.0)
- Special Feature:Mini
- Special Feature:Portable
- Special Feature:Wireless
- Use:Public Address
- Power Taps @100V:3.75W, 7.5W, 15W, 30W
- Power Taps @70V:1.9W, 3.75W, 7.5W, 15W, 30W
- Transformer Impedance:2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω
- Input:70V/100V/8Ω
- SPL(1W/1M):88dB
- Max. SPL (Rated W/1M):103dB

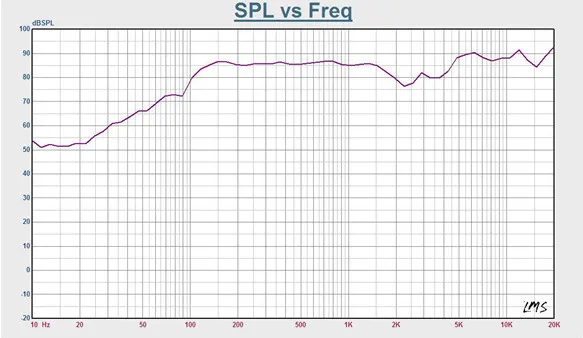

- Frequency Response (-10dB):100-18KHz
- Speaker Driver:5"* 1 1.5"* 1
- Dimension:285 *180 *186mm
- Weight:2.7kg

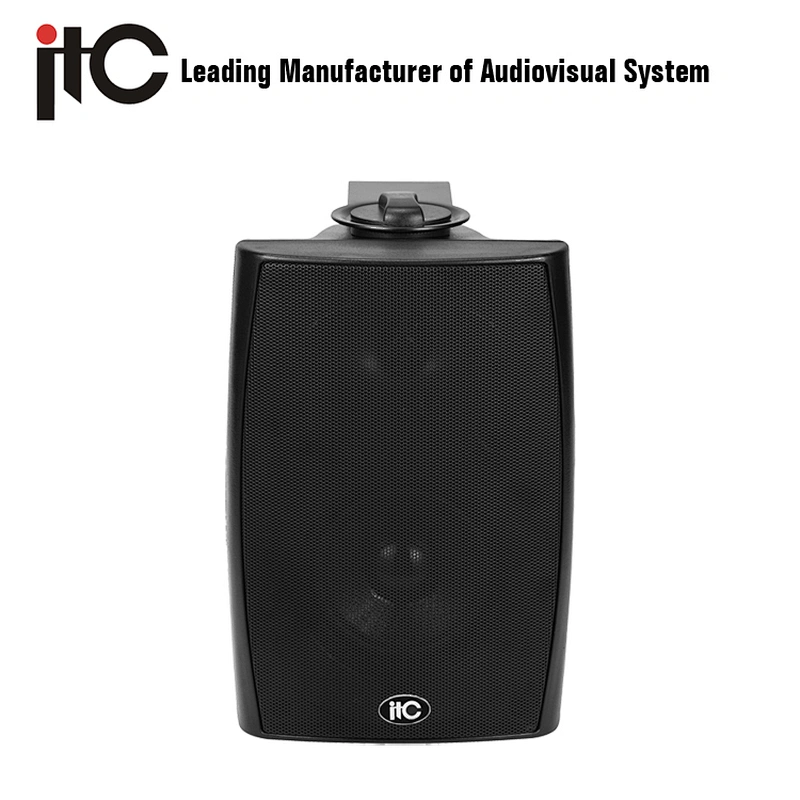

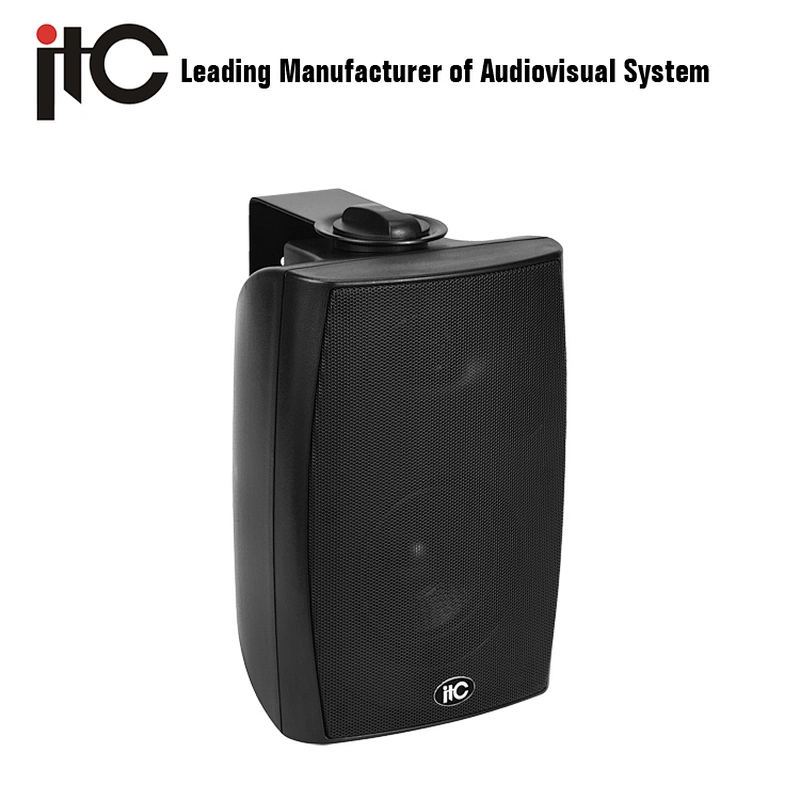

ITC T-775H 30W 100V 2.0 Wall Mount PA System Sound Box Price
- Built-in 100V/70V transformer
- Wall mount sound box
- 5"+1.5"2.0 speaker unit
- Power taps 3.75w-7.5w-15w-30w @100V plus 8 ohm
- Metal grille, ABS enclosure and stainless mounting bracket
The T-775H is a wall mount speaker built-in 70V/100V transformer. The 70V/100V transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple speakers.
The built-in 5"+ 1.5"2.0 speaker driver is designed of wide frequency response 100-18kHz, the multiple power taps 3.75W, 7.5W, 15W & 30W are helpful for different applications varies from room size and ambient noise surroundings.
The metal grille, ABS enclosure and stainless mounting bracket are of black color. Easy and secure wall mount installation through the supplied mounting bracket.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
Model | T-775H |
Power Taps @100V | 3.75W, 7.5W, 15W, 30W |
Power Taps @70V | 1.9W, 3.75W, 7.5W, 15W, 30W |
Transformer Impedance | 2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω |
Input | 70V/100V/8Ω |
SPL(1W/1M) | 88dB |
Max. SPL (Rated W/1M) | 103dB |
Frequency Response (-10dB) | 100-18KHz |

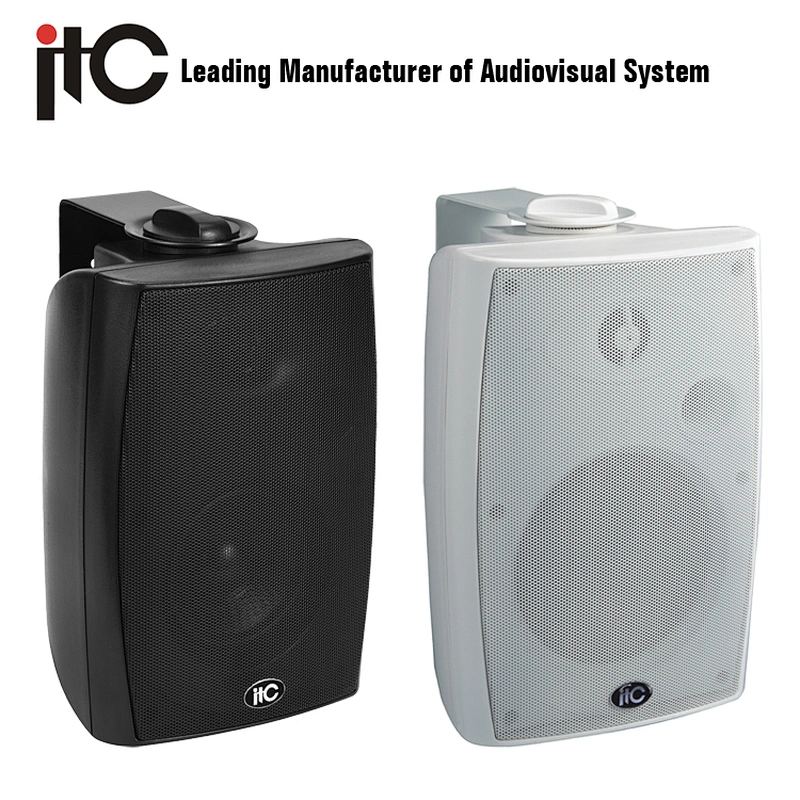

Finish | Baffle: ABS, Black/White Grille: Steel, Black/White |
Speaker Driver | 5"x1 1.5"x1 |
Dimension | 285 x180 x186mm |
Weight | 2.7kg |
Mounting | With mounting bracket fixed by screw |
