- Place of Origin:CN;GUA
- Simultaneous Interpretation:No
- Model Number:TS-0698
- Brand Name:ITC
- Type:Video Conference System
- Function:Tracking camera controller
- AC Power Supply:AC100-240V; 50~60Hz
- Power Consumption:7W
- Video Amplification Bandwidth:1.6GHz
- Video Input:1.2V P-P
- DDC Input:5V P-P(TTL)
- Single Channel Signal Coverage:1080P/1920*1200
- HDMI Connector:A Type male connector
- Power consumption:15W
- Weight:3kg
- Dimension:484*210*44mm

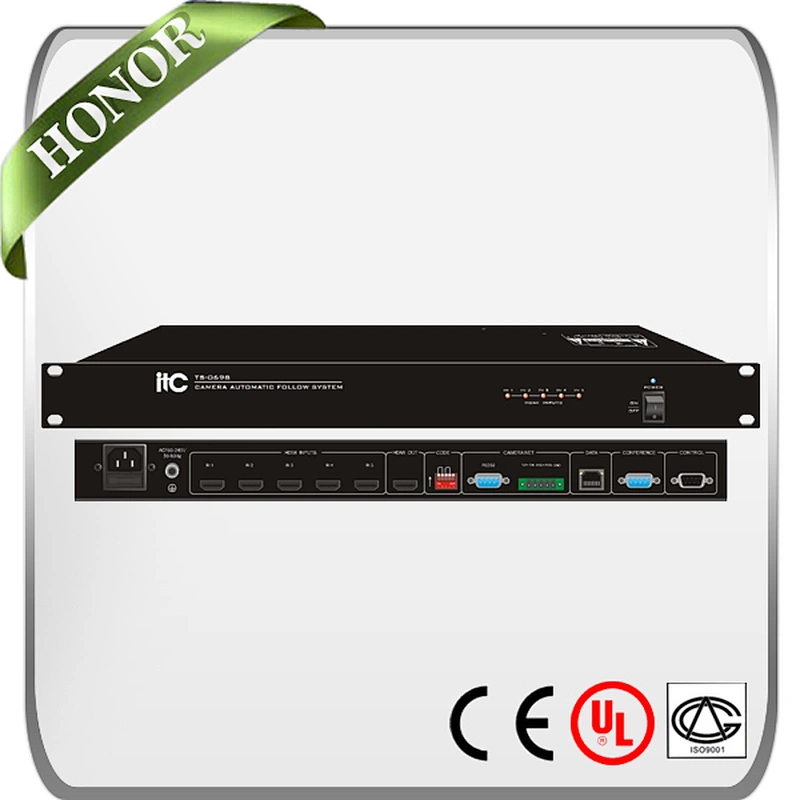

ITC TS-0698 Conference System Auto Tracking Hi-speed PTZ Camera Controller
Features
* Set the preset position of camera by PC software.
* 5 channels HDMI inputs, 1 channel HDMI output.
* Support Pelco-D and VISCA camera control protocol.
* 9600 communication baud rate.
* Support resolution of 480i, 480p, 720i, 720p, 1080i, 1080p, and it is also compatible with HDMI1.3b specifications. Above can be set by PC software.
* With the freeze frame function, the rotation process can’t be seen during switching the frames.
* Under high voltage (3500V) test before shipment to achieve safety standards.
* The shell of controller is made of metal material. Wires and shell have strengthened the connection with the ground.
* With the ability of 8000V antistatic and built-in an international universal power supply.
Specifications
Model | TS-0698 |
Power Supply | ~100V-240V 50/60Hz |
Maximum Consumption | 7W |
Video Amplifier Signal Bandwidth | 1.65GHz |
Input Video Signal Level | 1.2 volts p-p |
Output DDC Signal Level | 5 volts p-p (TTL) |
Single Channel Signal Range | 1080p/1920x1200 |
HDMI Connector | A type 19-pin female connector |
Weight | 3Kg |
Dimension (mm0 | 484(L)×210(W)×44(H) |
Color | Black |
