ITC TV-1080P-60HT HD 1080P Video Conferencing Equipment for Video Conferencing System

ITC TV-1080P-60HT HD 1080P Video Conferencing Equipment for Video Conferencing System

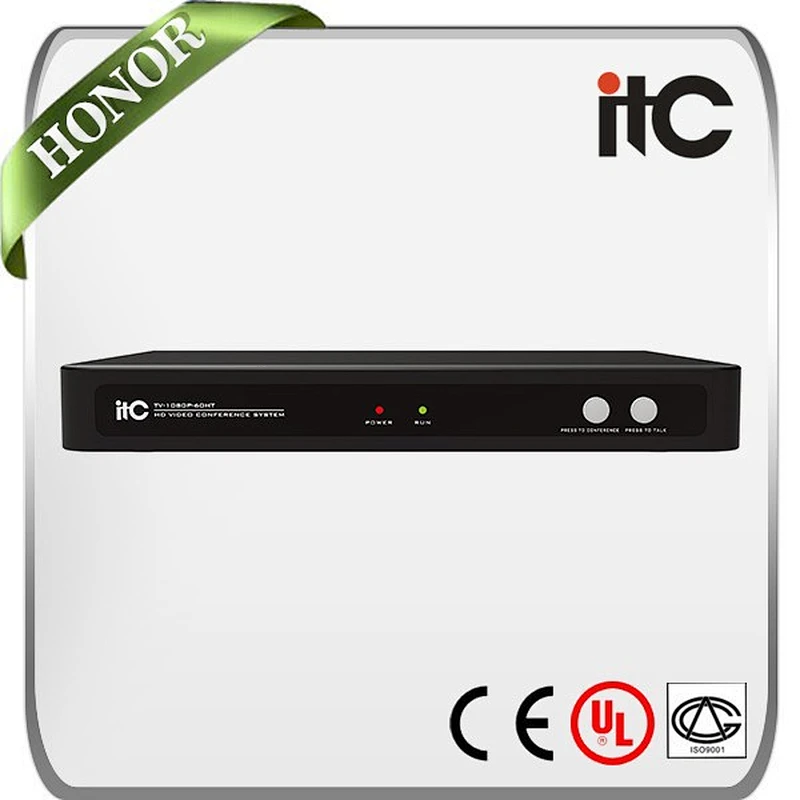

TV-1080P-60HT is a kind of upscale video conference terminal in separate type, designed for high-end conference room. It possesses supreme performance processing of video and audio and outstanding adaption of low Bandwidth, bringing you experience of extremely vivid HD communication.

ITC TV-1080P-60HT HD 1080P Video Conferencing Equipment for Video Conferencing System

(1)Reliability: Video conference terminal adopts design of highly reliable embedded system, enabling stably operating of 7*24 hours.

(2)High Profile: Support 1080P/60. Just need 1M for 1080P Conference.

(3)Light: Slim design; Graceful and nice; Dimension: 220*324*40mm;

(4)Simple Operation: Direct boot is in configuration of the last meeting; Two fast button, one for joining the conference, the other is for grabbing wheat to speech.

ITC TV-1080P-60HT HD 1080P Video Conferencing Equipment for Video Conferencing System

Multimedia Framework Protocol: ITU-T/H.323/IETF/SIP

ITC TV-1080P-60HT HD 1080P Video Conferencing Equipment for Video Conferencing System

(1)Support H.264

(2)Possess various HD input and output in the format of DVI or HDMI in order to access different kinds of HD equipment easily;

(3)Video Resolution:

QCIF,CIF,4CIF,480P,D1,720P,1080P24,1080P25,1080P30,1080P50,1080P60;

(4)Static Graphic: XGA,HD 720P,640*480,1280*1024,1080P, Chinese subtitles;

(5)Support H.239 technology of digital dual stream. Primary and secondary stream can be up to 1080P60; Support low bandwidth HD graphic 1080P 30Fps and the lowest bandwidth can be 1Mbps

ITC TV-1080P-60HT HD 1080P Video Conferencing Equipment for Video Conferencing System

(1)Audio Codec: G.711A/U, G.722, G.7221, G.722.1.C, G.723, iLBC, AAC, etc;

(2)Lip Sync;

(3)Multiple Channels Mix;

(4)Feedback Cancellation;

(5)Automatic Gain;

(6)Noise Cancellation;

(7)Powered by Phantom Power.

ITC TV-1080P-60HT HD 1080P Video Conferencing Equipment for Video Conferencing System

(1)Support H.264 SVC; Increase ability of resisting Network error; Withstand 5% of package loss; Not affect conference;

(2)Support voice priority and Qos policy;

(3)Support H235 signaling encryption, AES media stream encryption;

(4)With password to join in the conference;

(5)With conference control password;

(6)With administrator password

ITC TV-1080P-60HT HD 1080P Video Conferencing Equipment for Video Conferencing System

(1)Terminal with management interface of Chinese and English, enable WEB management of bilingual, which is in line of Chinese habits;

(2)Support Remote Maintenance Mode of Telnet, SSH, etc;

(3)Manage zones according to the feature of users and districts;

(4)Software Upgrade: Support local upgrade and remote upgrade;

ITC TV-1080P-60HT HD 1080P Video Conferencing Equipment for Video Conferencing System

(1)Dimension: 220mm * 324mm * 40mm;

(2)Weight: 2.1kg

(3)Operating Voltage: 100VAC – 240VAC;

(4)Operating Frequency: 50Hz – 60Hz;

(5)Max. Power Consumption: Less than 50W;

(6)Temp: 0℃~50℃ (Operating) -40℃~85℃ (Nonoperating);

(7)Relative Humidity: 10%~85% (Operating) 0%~95% (Nonoperating);

(8)Operating Noise: Less than 40dB
