- Place of Origin:CN;GUA
- Simultaneous Interpretation:No
- Brand Name:ITC
- Type:Audio Conference System
- Type:Video Conference System
- Model Number:TV-60F
- Adapter Input:100-240V
- Adapter output:12V / 1A
- HDMI Interface Type:Type A
- SD card:TF card maximum support 32G
- USB Interface:USB 2.0
- Power Idle:2.5W
- LCD Diagonal Size:7 inches
- Operating Temperature:0 ~ 40 ℃
- Relative Humidity:10 - 65%
- CPU:Freescale 1GHz quad-core chips

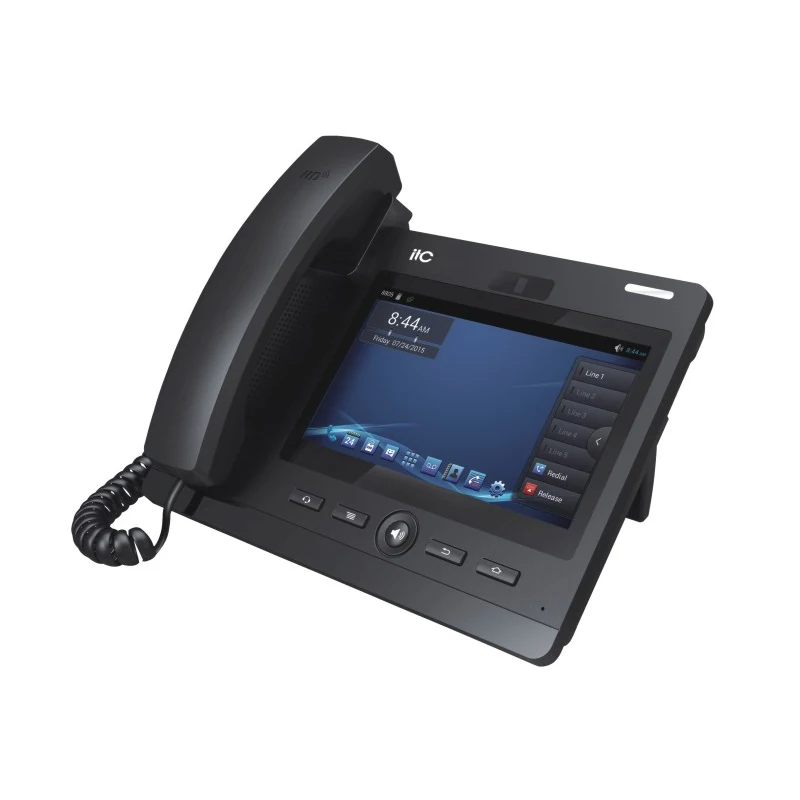

Video Conference System Media Phone
Your Preferred Choice for Economical video conference
The system is a comprehensive platform of multimedia communication for government and enterprises. Rich application provides users with communication experience beyond traditional way, such as remote video audio conference,stuff training,command and dispatch,cooperative working, etc.
Product List
Video Conference System Media Phone TV-60F
HD Video conference system MCUTV-60MCU
1)Support protocol of H. 323; support codec tech. of H.264;
2)Support dual stream tech. of H.239; and primary/secondary streams could reach 1080P/60;
3)To adopt cloud-based architecture for MCU; Even 1 of the MCU fails, the whole system could run normally;
4)1 screen could be split up to 16 blocks;
5) 1Mbps for 1080P HD video conference...

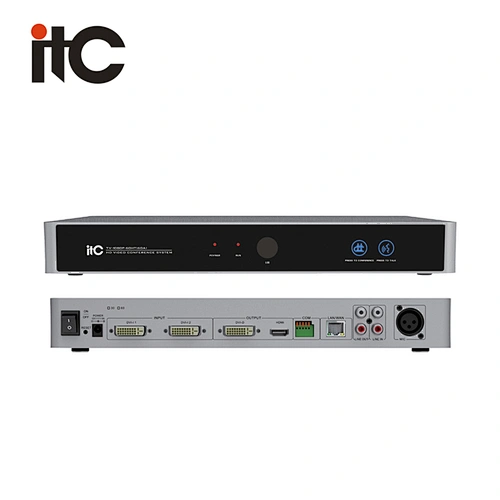

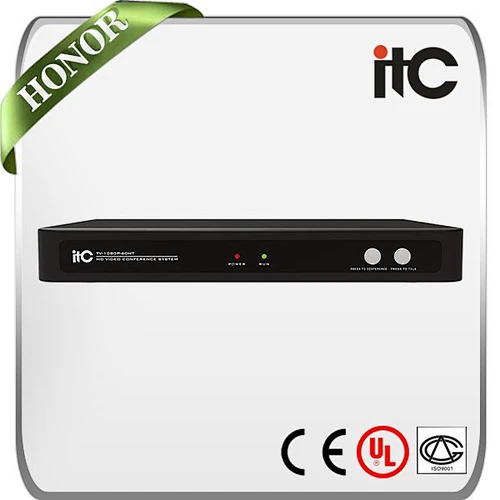

HD Video conference system terminal TV-1080P-60HT
1) High Reliability: Embedded design; support continuously run for 7 x24h;
2) Easy Operation: 1 key into conference; the other key to speech;
3) Full HD: Leading industrial video experience of 1080P/60;
4) Slim Design: Light and stylish...
HD Video conference camera (1080P)TV-603HC
1.Using the most advanced Ambarella A7L DSP, 1/3 inch high quality, 5 million high-definition CMOS sensor;
2. Output 1920 x1080 ultra-high resolution image, frame rate output up to 30 frames per second;
3. 3x optical zoom automatic focus lens, 3x electronic zoom, focal length: f = 3.2mm (wide) to9.6mm (tele);
4. Multiple format video output, support 1080P30, 1080P25, 720P60, 720P50, 720P30, 720P25 HD video formats...
HD Video conference microphone TV-61R
1.Sampling rate: 4BKHz; frequency response is from 100Hz to 22KHz;
2.With internal digital sound processor;
3.With 4 digital array microphones; pickup covering 360 degree; the distance is up to 5m;
4. 1 USB port for audio input and 1 USB port of audio output...
System Diagram
Model | Support |
TV-60MCU(8A) | 8 users |
TV-60MCU(16A) | 16 users |
TV-60MCU(32A) | 32 users |
TV-60MCU(64A) | 64 users |
TV-60MCU(120A) | 120 users |
Features
* Embedded architecture, DSP hardware acceleration.
* Widely integrate with conference terminals, IP Camera, Video Phone, Windows client,
IOS/Android video conference APP.
* Web-based multi-layer management, can achieve simple, secure access in any place.
* Immersive tele-display, venue live, roll call, integrated recording, background
broadcasting and so on.
* Integrated with conference record-play function, built in GK module.
* Low Latency: less than 200ms.
* Low bandwidth: Ultra-low bandwidth, 1M can run 1080P HD conference.
* Large capacity: single TV-60 MCU can support 120 users
* Support cascade expansion, interconnect and mutual backup.
* Dual redundant powers, support hot-swap.
* Dual network card smart backup, automatic recoveryvenue operation.
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
