Excellent Sound Quality Best Video Conferencing Tools

• Place of Origin:CN;GUA
• Simultaneous Interpretation:Yes
• Model Number:TV-60MCU
• Brand Name:ITC
• Type:Video Conference System
• Function:Video
• HD:1080P/60
• Low Latency:< 200ms
• Multimedia Framework Protocol:ITU-T/H.323/IETF/SIP
• high profile protocol:H.264
• Audio Codec:G.711A/U, G.722, G.7221, G.722.1.C, G.723, iLBC, AAC
• Dimension:675mm * 430mm * 88mm
• Weight:25kg
• Operating Voltage:100VAC - 240VAC
• Operating Frequency:50Hz - 60Hz
• Maximum Power Consumption:< 500W

Excellent Sound Quality Best Video Conferencing Tools

Your Preferred Choice for Economical PA System

Features

* Support multiple-image; support multiple picture layout, single screen can support

up to 16 images;

* Support automatic split screen;

* Director conference mode

* Chairman conference mode

* MCU Calling mode

* Conference room mode

* Broadcast Mode

* Free mode;

* With voice motivation function;

* With breakpoint re-invitation function

* Support the camera remote control, backlight Settings;

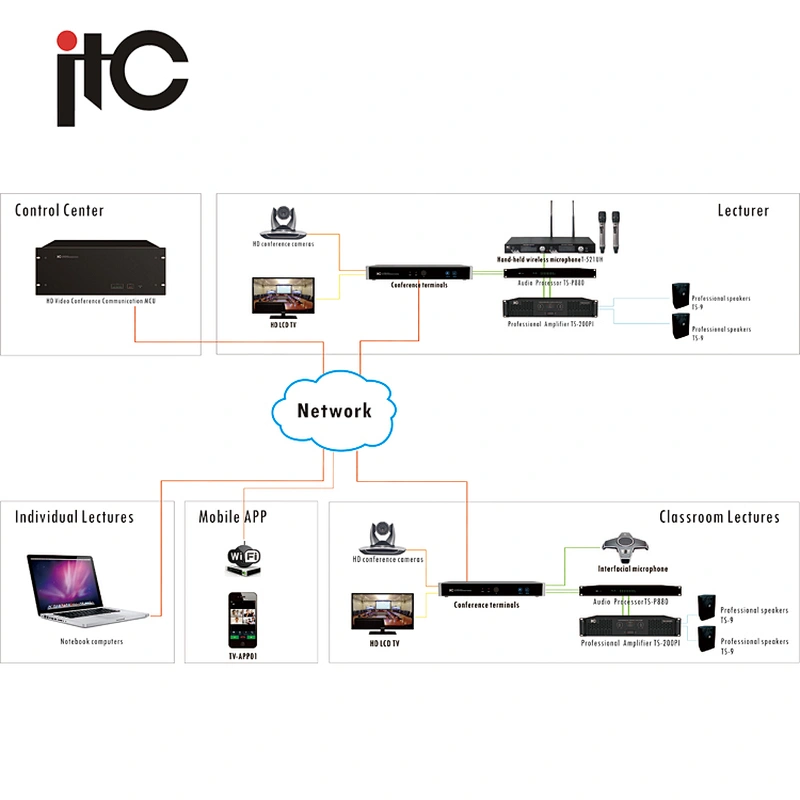

System Diagram

Product List

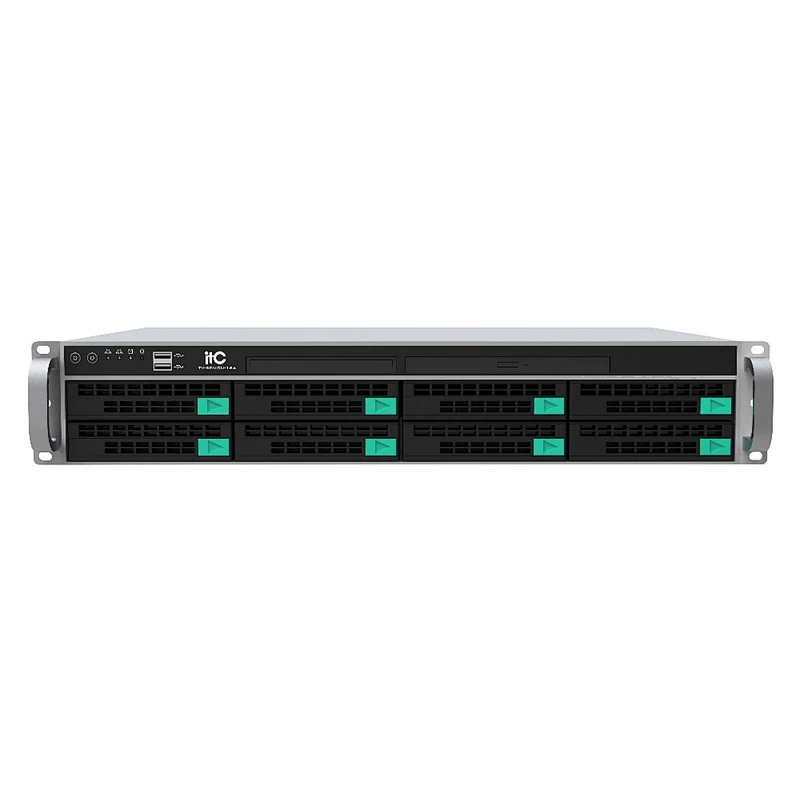

MCUTV-60MCU

Video Conference Terminal TV-1080P-60HT

Communication protocol

* Multimedia framework protocol ITU-T H.323,IETF SIP

Video Features

* Support H.264 (support Highprofile);

* Video Resolution :QCIF,CIF,4CIF,480P,D1,720P,1080P24,1080P25/30,1080P50/60;

* Support mixing speed, mixing video formats, mixed protocol meetings;

* Static graphic :XGA,HD 720P,640x480,1280x1024,1080P(1-60frames),Chinese subtitles;

* Support H.239 digital dual stream technology and primary and secondary streams can all reach 1080P 60;

* 1M bps for 1080P HD video conference.

Audio features

* Audio Codec : G.711A/U,G.722,G.7221,G.722.1.C,G.723,iLBC, AAC,and so on ;

* Lip Synchronization;

* Multichannel mixing;

* Echo cancellation;

* Automatic gain;

* Noise cancellation.

Network Features

* With dual 100M / 1000M network interface;

* Can be adapted to DDN, ISDN, ATM, SDH, VPN, leased line satellite, ADSL and other lines;

* Ability across routers and firewalls, to ensure system security, support for dual network access;

* Support H.264 SVC, the ability to provide anti-network error, can withstand a 20% packet loss, does not affect the proceedings;

* Support voice priority, support Qos strategy;

* H235 support signaling encryption, AES media stream encryption;

* Three Password protection: meeting joining password, conference controlling password, ministrator password
