ITC TV-620HC Auto Tracing PTZ 360 Degree Conference Room Video Camera

• Place of Origin:CN;GUA
• Technology:Pan / Tilt / Zoom
• Brand Name:ITC
• Type:DIGITAL CAMERA
• Sensor:CMOS
• Model Number:TV-620HC
• Style:BULLET CAMERA
• Special Features:1080P60
• Video Interface:DVI-I, HD-SDI, 3S-SDI
• Control Interface:8 core mini DIN
• Power Interface:HEC3800 Electric Outlet
• Power Adapter:Convert AC 110V - AC 220V to DC 12V/1.5A
• Input Voltage:DC12V (DC11.5V to DC 12.5V)
• Power Consumption:12W (Max.)
• Relative Humidity:10% to 85%
• Working Temp.:0℃ to +45℃
• Dimension (LxWxH):265x145x179mm
• Weight:1.6Kg

ITC TV-620HC Auto Tracing PTZ 360 Degree Conference Room Video Camera

Product Introduction

* It adopts high quality HDCMOS sensor of 2.8 inch, 500 mega-pixel and effective pixel 200 mega-pixel.

* Output high quality images of 1920 x 1280 ultrahigh resolution, and highest output frame frequency is 60/50 FPS.

* 20x automatic optical zoom lens, fecal length: f=4.7mm (wide) to 94mm (tele).

* Multiple format video output, support 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50, 720P30 HD video standard.

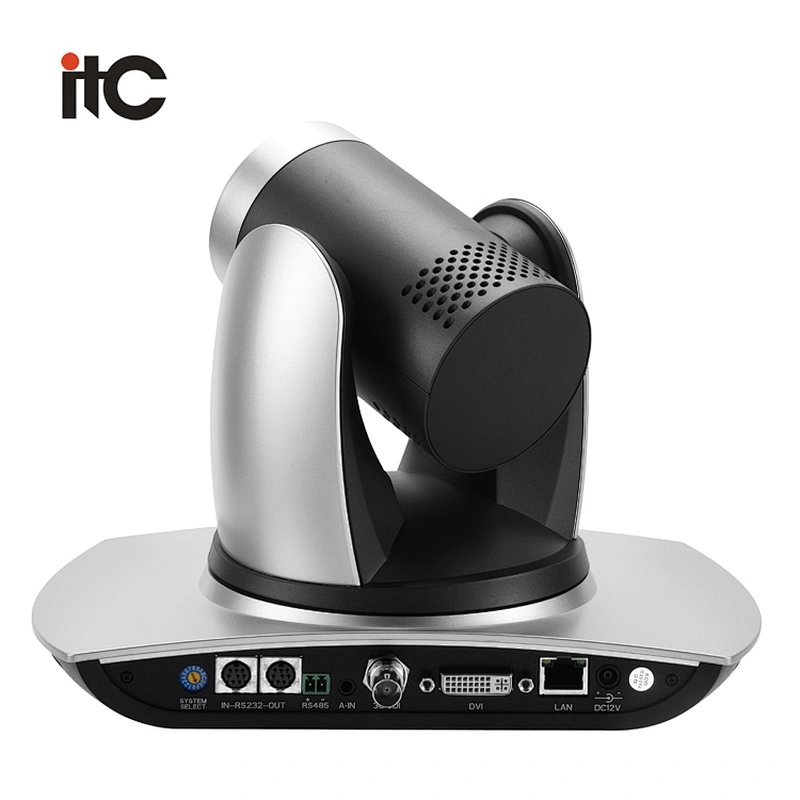

* Support DVI-I, HD-SDI interface and output HD analog & digital video signal.

* With RS-232 and RS485 interface (VISCA protocol), support preset and invoke remote camera position,

control move horizontal/pitch/zoom of the camera in wide range, high speed and low noise.

* It can preset the position, including horizontal, pitch, zoom, max presetting is 255, and supports power off protection.

* Equipped with remote controller, you can set the parameter manually, and control the camera in horizontal/pitch/zoom

* It supports camera reversed installation, and you can set the images in horizontal through serial port command, image turn over command. It has function of power off protection as well.

* Max shooting angle 55.4°, horizontal rotation angle 340°, vertical rotation angle +90°/-30°, horizontal speed 0.1-180°/s, vertical speed 0.1-80°/s.
