- Place of Origin:CN;GUA
- Simultaneous Interpretation:No
- Brand Name:ITC
- Type:Video Conference System
- Model Number:TV-620USB
- Function:auto tracking conference
- HD Interface 1:DVI-I
- HD Interface 2:USB3.0
- Control:8-pin mini DIN
- Power Interface:HEC3800
- Power Adapter:AC110V-AC220V to DC12V / 2.5A
- Input voltage:DC12V
- power consumption:18W
- Dimension:265 * 144 * 171 (mm)
- Weight:1.9Kg
- Storage temperature:-10 ℃ to + 60 ℃

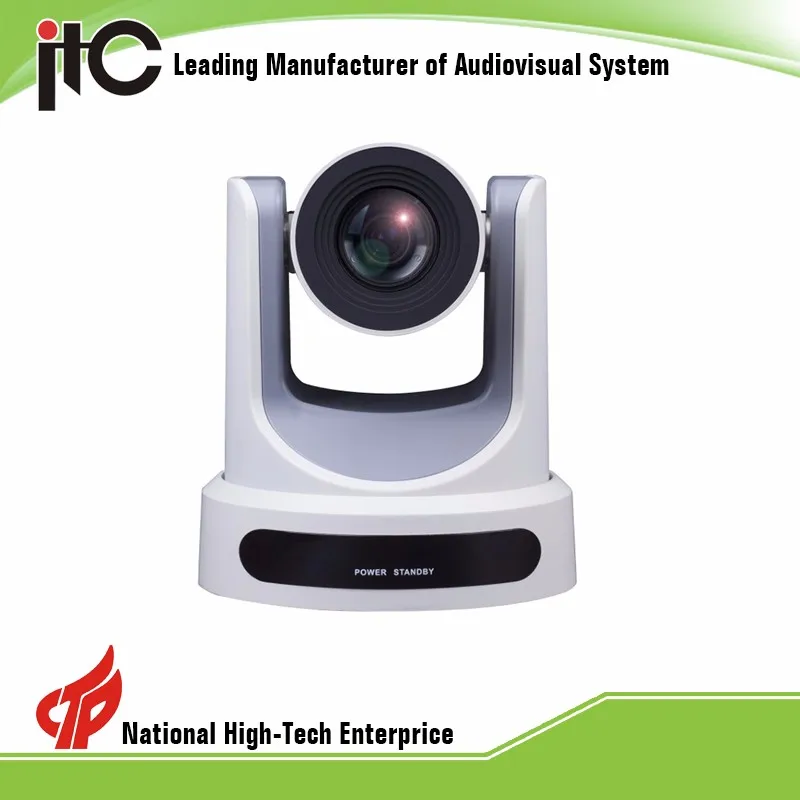

TV-620USB Top Rated USB 3.0 HD Video Conference Camera
20x, 1080P Full HD, high performance, wide angle of view, big zooming range
Product Feature
1. The first video conference system camera supporting H.265 coding in the world, and it can realize full HD 1080P super low bandwidth transmission.
2. Using brand new Panasonic 1/2.7 inch, 2.07 million effective pixels HD CMOS sensor,it can realize maximum 1920 x 1080 high resolution picture.
3. 20x optics automatically zooming lens, 32x digital zooming, focal length: f4.42mm ~ 88.5mm, F1.8 ~ F2.8.
4.Brand new CMOS sensor with super high SNR, it can reduce picture noise in the condition of low high, and can use 2D and 3D noise reduction algorithm, which reduce picture noise greatly.
5.Supporting USB 3.0, which can transfer original video picture, it can support USB 2.0 .
6.USB3.0 can support output: 1080P/60, 1080P/50, 1080P/30, 1080P/25, 720P/60, 720P/50, 720P/30, 720P/25 video format.
7.USB 2.0 can support output 1080P/10, 720P/25, 960 x 540P/30, 960 x 540P/25, 640 x 360P/60, 640 x 360P/50 video format.
8.Supporting HDMI output, USB 3.0 HDMI, Internet, totally there are three lines to transfer at the same time.
9.HDMI can support output 1080P/60, 1080P/50, 1080I/60, 1080I/50, 1080P/30, 1080P/25, 720P/60, 720P/50, 720P/30, 720P/25 video format.
10.Using RS232 and RS485 serial port, it can control camera, and support remote camera position and invoking, wide range, high speed, low noise to control camera Pan/pitch/zoom.
11.You can preset position, including horizontal, pitching and zoom, the max presetting positions will be 255, and it supports preserved function when power cut off.
12.Support picture horizontal, vertical rotation, picture freezing, face detection, backlight compensation, 2D&3D digital decrease noise function.
13. Support local storage. No need NVR to realize local directly recording by U disk.
14.Horizon shooting level: 60.7°~3.36°, horizon rotation:-170°~+170°, vertical rotation agle: 35°~+90°, horizon spin speed:1.7°~69.9°/S.
Input/Output Interface
Video port: HDMI/USB3.0/USB2.0
Audio port: 1 line In3.5mm
Control port: 1 line RS232 in/1 line RS232 Out/1 line RS485 In/1 line RS485 Out
Internet port: 1 line RJ45
Power port: JEITA type power socket
Electrical Features
Adaptor: ~110V-220V to DC 12V/2.5A
Input voltage: DC 12V (DC 11.5-DC 12.5V)
Power consumption: 12W (Max)
Physical Features
Relative humidity: 10%~85%
Working temperature: -10℃~ 40℃
Dimension (Wide high deep): 169mm x 142mm x 164mm
Weight: 1.35Kg
Guangzhou ITC Electronic Technology Limited
* Operate a 30,000sqmfactory
*15years of audiovisual experience
* Integrating research, production, sales and service
* 10 major product series and 1,000+ models
* Support OEM & ODM service
* We have very strict quality control system.
* We promise the electronics yearly failure rate is less than 1%.
* 100% products need to be aged (full loading) at least 24 hours and tested 4 times before delivery.
We have 50 software copyright and 12 patents.
Product complied with certificates:
CE Certificate
ISO9001, ISO14001, IS018001, ISO27001
CCC Certificate: China Compulsory Certification
International Standard Product Making Certificate
Our audiovisual system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou Asian Games and Expo 2016 Antalya. For now, we have up to 300,000 successful cases worldwide.
Buy now, we have been successfully conducting both import and export activities worldwide for 10 years with suppliers and buyers.
