- Place of Origin:CN;GUA
- Use:Home Theatre
- Use:Karaoke Player
- Model Number:T-775A/T-775AW
- Brand Name:ITC
- Type:Passive
- Channels:2 (2.0)
- Use:Public Address
- Rated Power Output:20W x 2 @ 8Ω
- Input Sensitivity:0.5V
- Frequency Response:80Hz-18KHz/1W, ±0.5dB
- THD:20Hz-20KHz/1W, 0.05%
- Damping:>200@8Ω/400Hz
- Conversion Rate:30V/US
- Channel Separation:>75dB
- S/N Ratio:>95dB
- Amplifier Type:Class AB
- Input Connector:European connector, RCA and Stereo Jack in 3.5mm

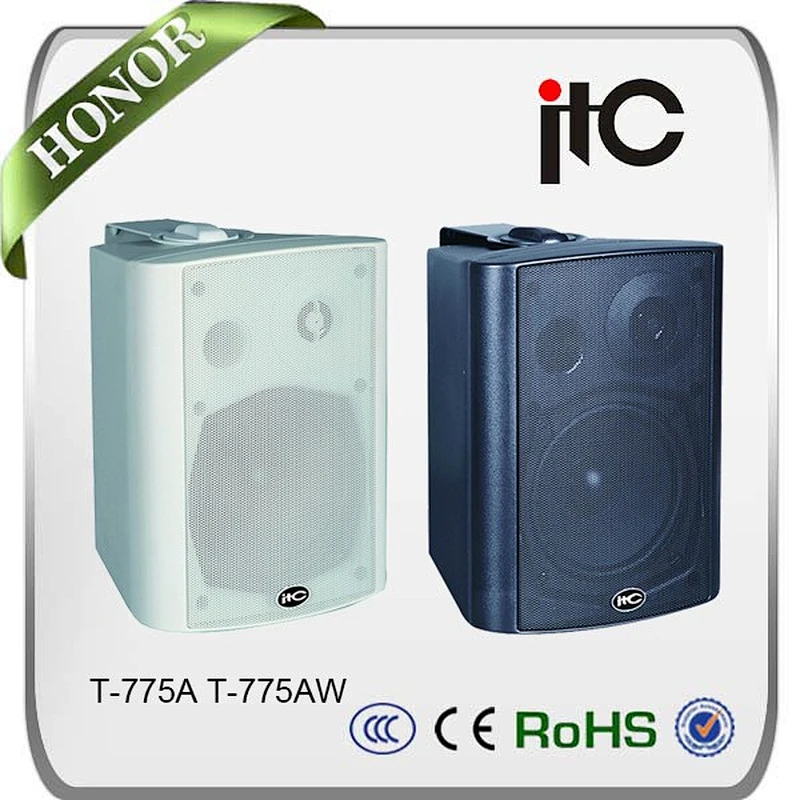

ITC two way 5'' guangzhou bgm speaker,hall music speakers
Feature:
1.Powered speaker with amplifier of stereo sound system
2.Two way speaker system, 5'' woofer and 1.5'' tweeter
3.Ideal for school, hospital, meeting room projector and laptop use
4.First-level Hi-fi sound quality
5.Input support laptop, Ipod, Iphone and microphone
6.20 watts stereo at 8ohms output
7.Mounting bracket is supplied
8.RS232 control port and remote control could be customized if order quantity is attractive, default specification not include this feature.

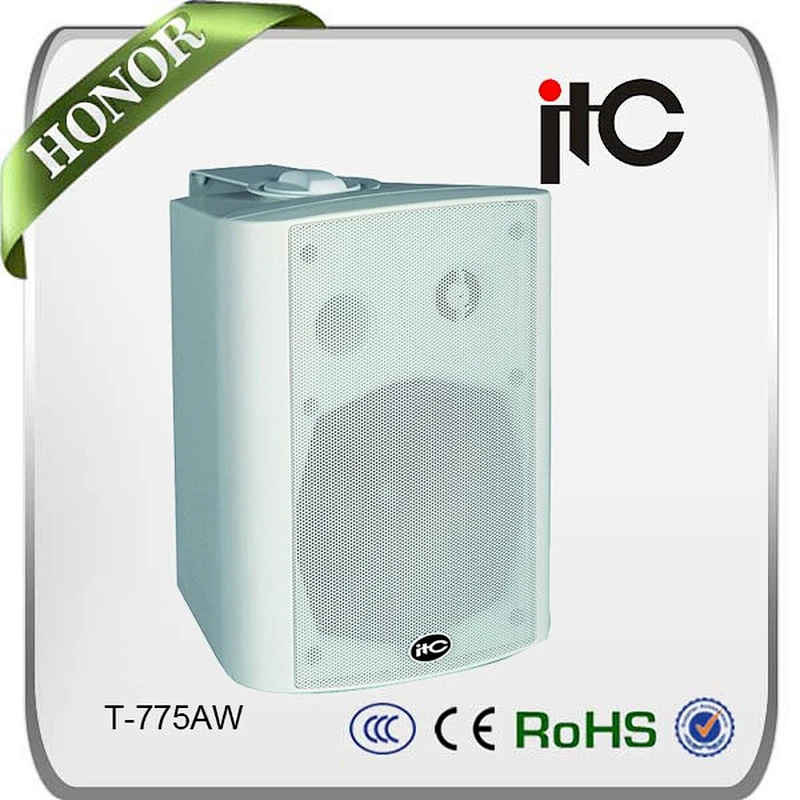

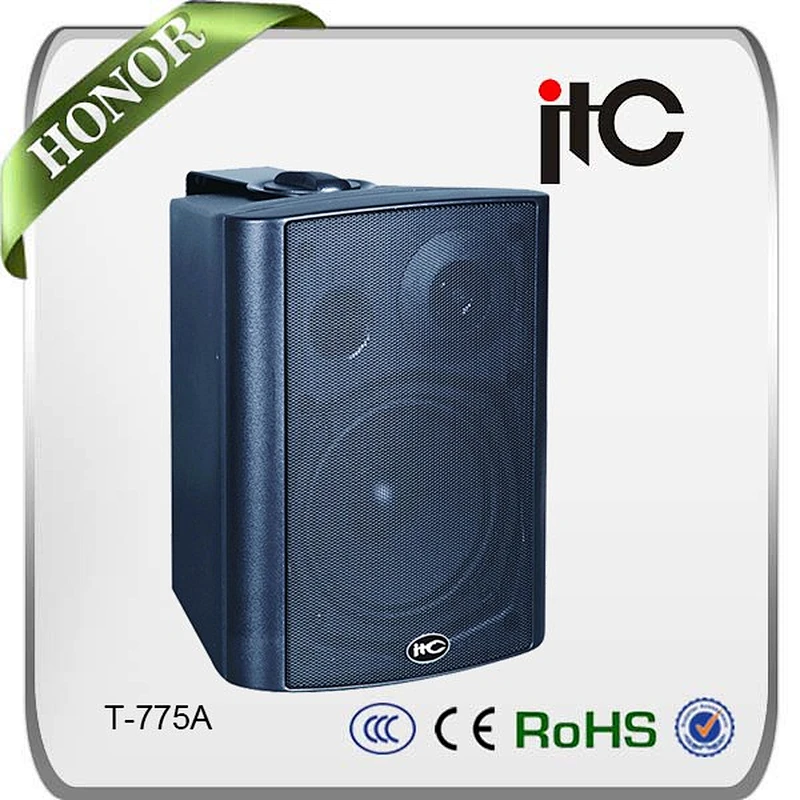

Model | T-775A (Black)/T-775AW (White) |
RMS | 20W x 2 @ 8Ω |
Input Sensitivity | 0.5V |
Frequency Response | 80Hz-18KHz/1W, ±0.5dB |
THD | 20Hz-20KHz/1W, 0.05% |
Damping Factor | >200@8Ω/400Hz |
Conversion Rate | 30V/US |
Channel Degree of Separation | >75dB |
S.N. Ratio | >95dB |
Amplifier | AB class |
Indication | Power and channel signal |
Protection | High temp, overload, short circuit and clip |
Treble Control | ±10dB |
Bass Control | ±10dB |
Input Connector | Balanced phoenix connector, dual RCA and stereo 3.5mm earphone input |
AC Power Supply | 220V~240V/50Hz~60Hz |
Dimensions | 183x200x240mm |
Weight | 4.7Kg (per pair) |
The T-775A is a 5” stereo loudspeaker set that consists of a passive loudspeaker and an active loudspeaker.
It is ideal choice for AV applications such as meeting room, multi-media class room for small presentations. The active loudspeaker package is designed with volume and tone controls, accurate clip indicators and built-in a stereo amplifiers. The rated power output is 20W at 8ohms system.
ABS cabinet, metal grille and metal mounting bracket are of black finish, the easy mounting bracket is supplied in the packaging.
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our productare complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
