- Place of Origin:CN;GUA
- Communication Mode:Full-Duplex & Half-Duplex
- Switch Capacity:1.6G
- Brand Name:ITC
- Certification:ISO9001
- Model Number:TS-W110 Series
- Microphone capacity:≤4096
- Frequency response:20 ~ 20KHz
- SNR:>85 dB(A)
- Dynamic range:>80 dB
- THD:<0.05%
- Main power supply:90~132VAC/180~264VAC by switch
- Output loading:>1KΩ
- Quiescent dissipation:30W
- Working temperature:-10℃~+60℃
ITC WiFi Easy to operating 3 port mini ethernet switch board,32 port ethernet switch
Your Preferred Choice for Economical conference system
WIFI Conference System
Features
1. It adopts 5GHz communication frequency band, which has stronger anti-jamming capability and provides bigger bandwidth and transmission speed. And it is free from the interference of mobile telephone and other Bluetooth equipment to ensure the best signal reception.
2. It adopts 128 bits encryption technique, supporting WPA/WPA2 WIFI security technology in case of being intercepted and non-authorized visiting to improve higher confidentiality of the conference system.
3. It is built with high-performance dual CPU processor with super strong processing capacity. Meanwhile, it supports WIFI conference system and full digital conference system.
4. This WIFI conference system supports 4096 delegate units at most, among which maximum 300 units from WIFI conference system. You can turn on maximum 8 microphones at the same time, among which maximum 6 microphones from WIFI conference system.
5. It adopts original digital processing and transmission technology with 48K sampling frequency and 20Hz~20KHz bandwidth non-compressing audio transmission, adopting Cat-5 shielded cable to ensure long distance transmission and to provide perfect sound quality.
6.With WIFI network interface, it can connect with POE network switch to enlarge WIFI AP qty and to provide huger WIFI coverage area.
7. It is with manual and automatic edited ID function for quickly and easily arranging meetingplace.

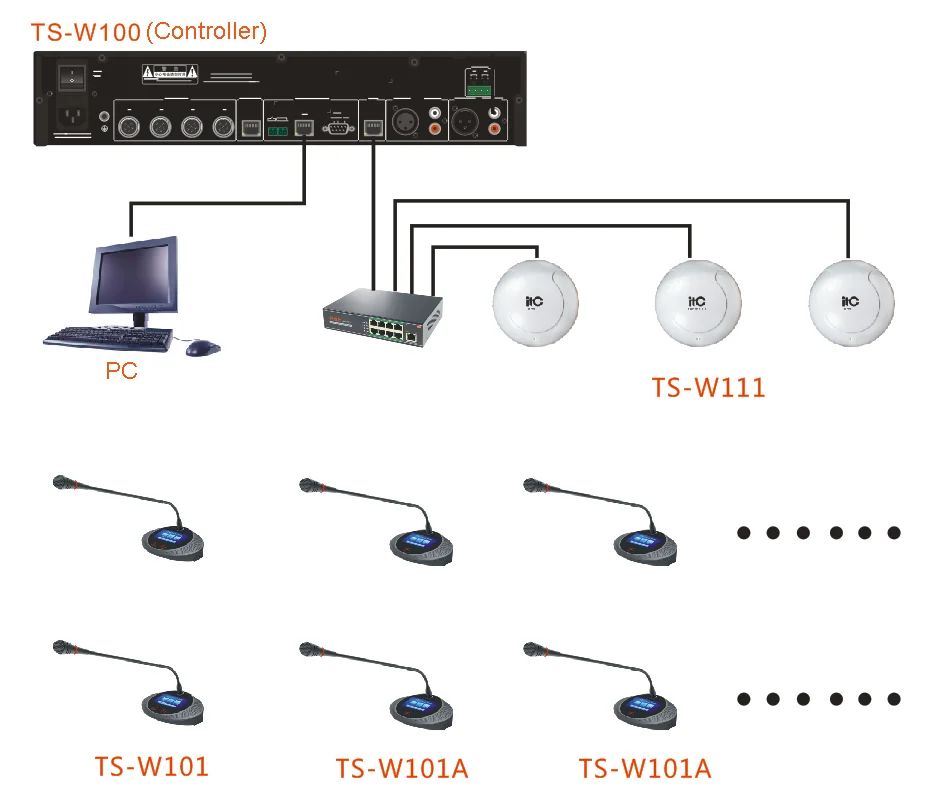

System Diagram
Product List

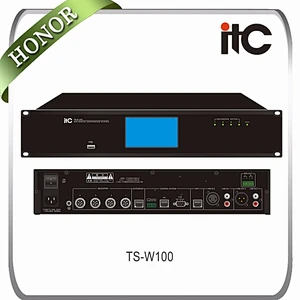

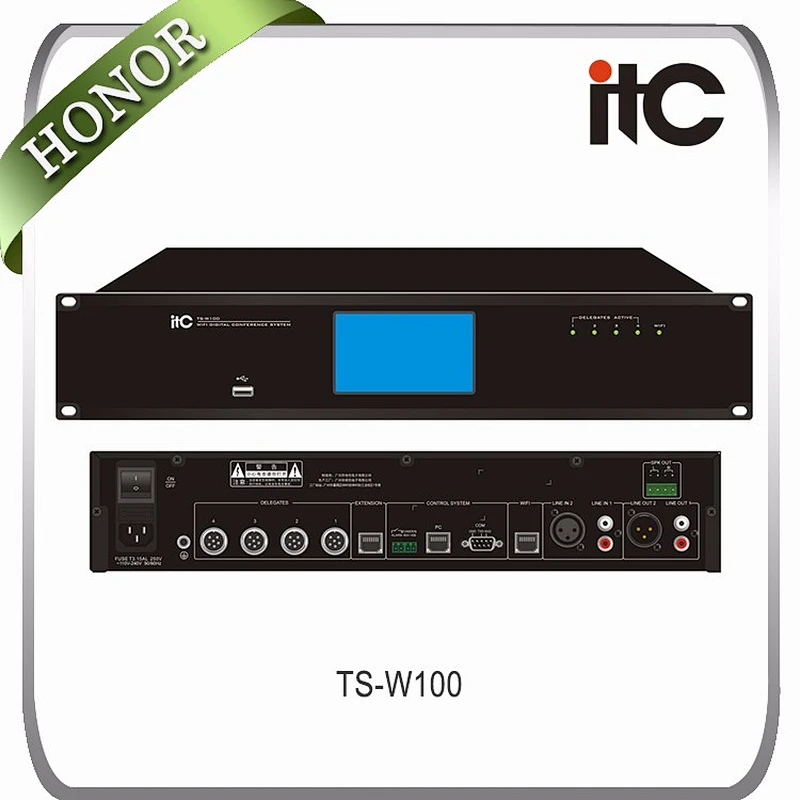

(A)TS-W100 Full Digital WIFI Conference System Controller

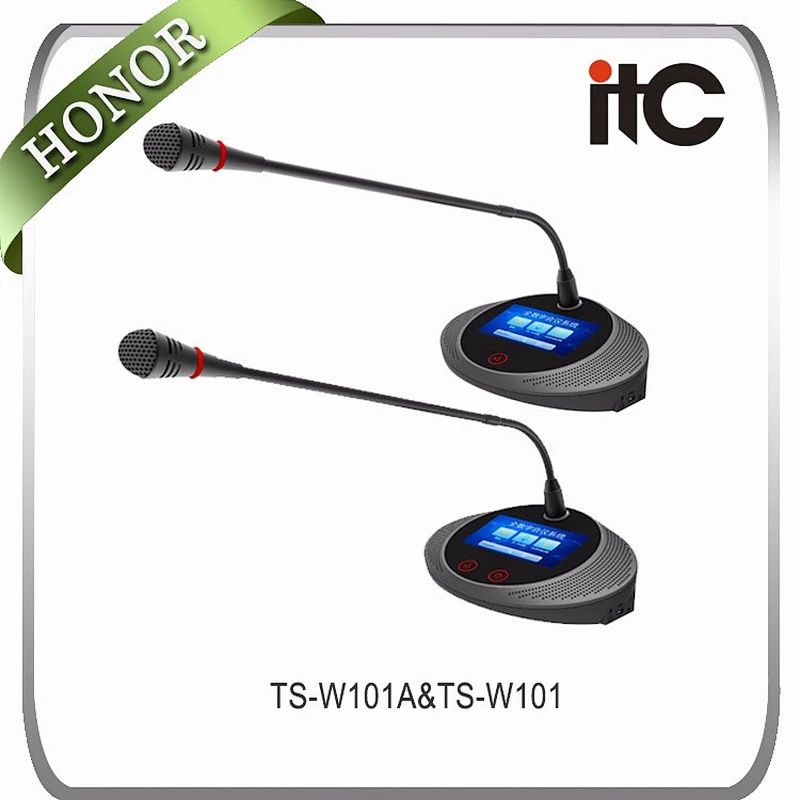

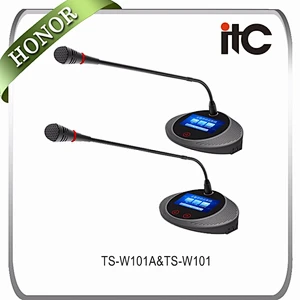

(B) TS-W101 Chairman Unit
(C)TS-W101A Delegate Unit
(D)TS-W111 AP Transmitter

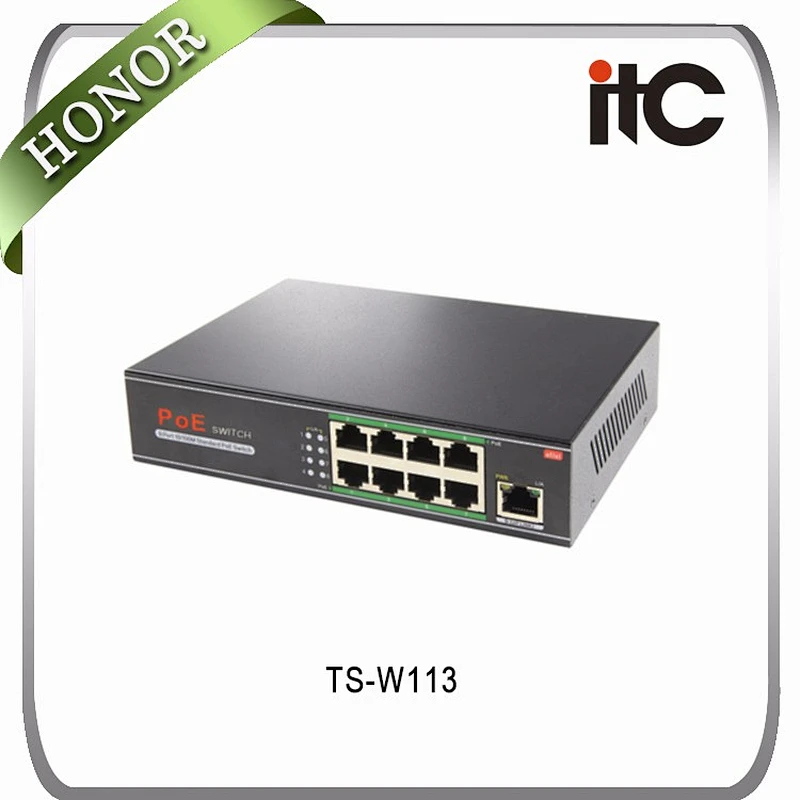

(E) TS-W113 Ethernet switch
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
