- Microphone type:Cardioid direct electret
- Power supply:18650 Lithium battery
- Display screen:IPS screen
- Frequency response:80~ 16KHz
- Sensitivity:-46 dBV/Pa
- Microphone input impedance:1KΩ
- Dynamic range:>80 dB
- THD:<0.1%
- Maximum power consumption:3W
- Standard:IEC60914
- Certification:CE
- Style:Gooseneck Microphone
- Communication:Wireless
- Use:Conference Microphone
- Function:Condenser Microphone
- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:TS-W103&TS-W103A
ITC WiFi Wireless Conference Table Microphone Gooseneck microphone Chairman Delegate unit for conference system
Your Preferred Choice for Economical conference system

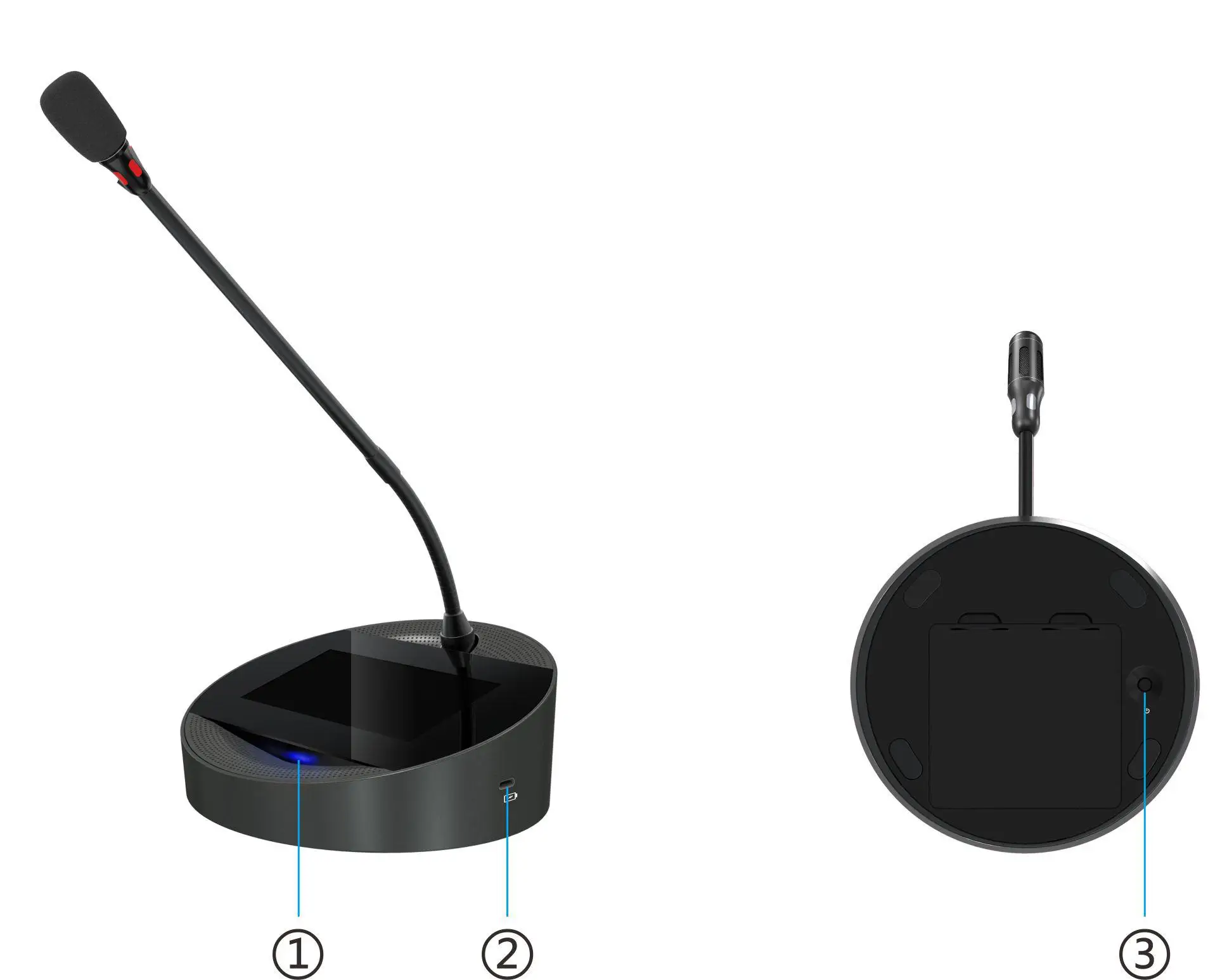

WIFI Conference System Chairman Unit & Delegate Unit
1.charge lamp
2.USBType - C interface
3. power switch
Features
* Microphone adopts 48KHz sampling rate with the sound quality betterthan CD.The sound is clear and bright. With internal DSP audio processing,no low frequency impact sound would appear.
*Adopts advanced chip architecture and unique processing algorithm.Only need 5 seconds for the microphone to start andconnect.
* With the function of intelligent detection of faults, it prompts the user for AP failure, controllercommunication failure, weaksignal,etc.
*Support charging via the Typle-C port with intelligent status indication.
*SupportSSID and password settingfunctions.
*It supports Chinese and English switching in interface, and is set by PC software.
* With speaking time setting and timing speaking function.
*Thedelegateunitcan apply for a speech, and the applicant is allowed to speak through the approval ofchairmanunit.
* With voice control, the microphone can be turned on intelligently. Adjust the voice sensitivity and set the off time via software.
* Support sign-in function.Set and start through PC software.
* Support conference voting, five-buttonelection, three-button voting function, which is flexible and convenient.
* Adopt 128-bit AES encryption technologyand WPA/WPA2 wireless security technologytoprevent eavesdropping and unauthorized access, provide higher confidentiality of the conference system.
* With wireless transmission technology, the venue can be carried out with very little time to conduct venue activities.
* The chairman has a priority function to turn off all delegate microphones that are speaking.
* Built-in lithium battery supports 14 hours of continuous speech.
*Support programoffline upgrade.
* 4.3-inch full-view IPS capacitive touch display.
* The power switch button is designed at the bottom of the microphone to make the microphone more beautiful.
Technical Parameters
Model | TS-W103/TS-103A |
Microphone type | Cardioid direct electret |
Frequency response | 80Hz~16KHz |
Microphone input impedance | 1KΩ |
Sensitivity | -46 dBV/Pa |
Maximum SPL | 100dB(THD>3%) |
SNR | >80dB(A) |
Crosstalk | >70dB |
Dynamic Range | >80dB |
THD | <0.1% |
Maximum power consumption | 3W |
Standard | IEC60914 |
Power Supply | 18650 Lithium battery |
Charging method | Connect the charging box to charge through the TYPE-C interface |
Color | Graphite grey |
Sign-in function | Touch button to sign in |
Displayscreen | IPS screen |
Dimensions(LxWxH) | 149*145*61(mm) |
Installation method | Desktop |
Wireless frequency range | 5.15GHz~5.85GHz |
Battery capacity | 10400mAh |
Microphone rod length | 380mm (black) |
Weight | 1Kg |
Speech mode working hours | 13 hours |
Mixed mode working time | 14 hours |

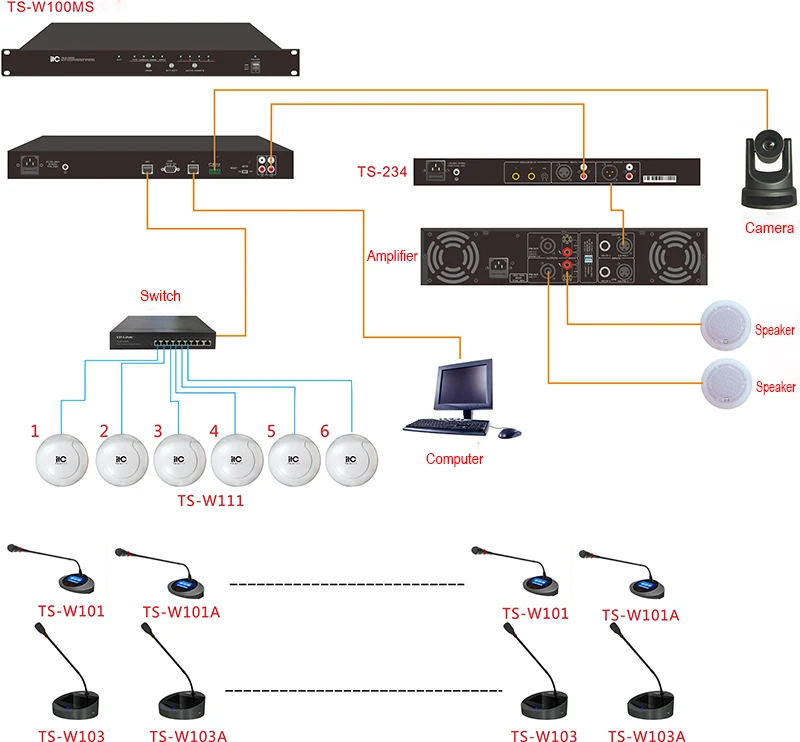

System connection diagram
* We have very strict quality control system.
* We promise the electronics yearly failure rate is less than 1%.
* 100% products need to be aged (full loading) at least 24 hours and tested 4 times before delivery.
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
