- Place of Origin:CN;GUA
- Brand Name:ITC
- Style:Gooseneck Microphone
- Use:Conference Microphone
- Communication:Wireless
- Model Number:TS-W101/TS-W101A
- Microphone capacity:≤4096
- Channel qty:Maximum 64CH
- Frequency response:20 ~ 20KHz
- SNR:>85 dB(A)
- Dynamic range:>80 dB
- THD:<0.05%
- Main power supply:90~132VAC/180~264VAC by switch
- Output loading:>1KΩ
- Quiescent dissipation:30W
- Working temperature:-10℃~+60℃

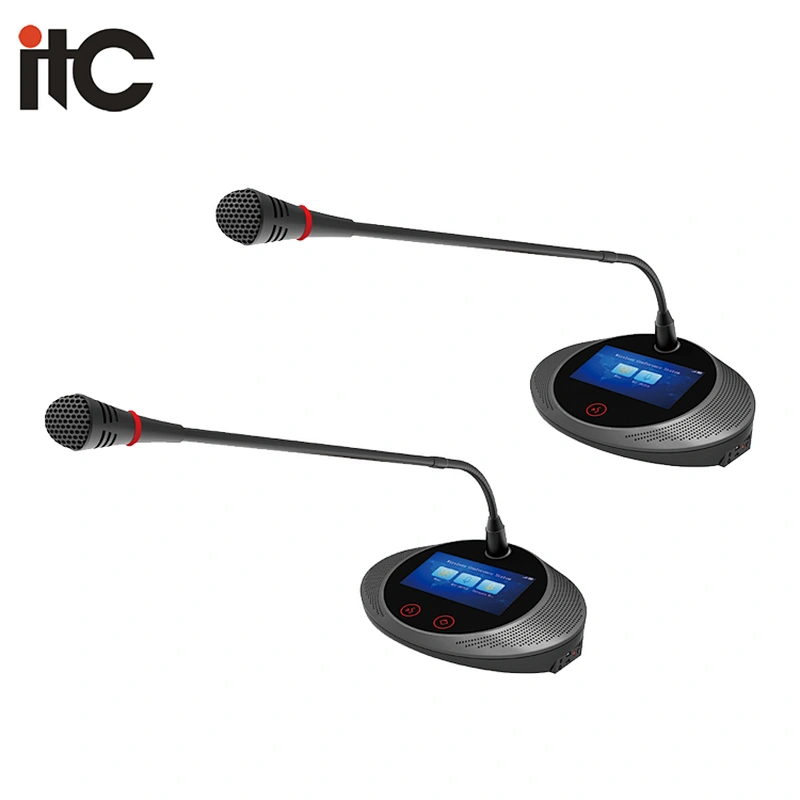

TS-W100 5G New Wireless Audio Conference Microphone System
Your Preferred Choice for Economical conference system
WIFI Conference System Chairman Unit & Delegate Unit
Features:
1. Microphone with 48KHz sampling rate is with the better sound quality than CD’s, which is clear and bright. With DSP audio processing inside, no"puff"low-frequency impact;
2. With speaking time setting and timing speaking function;
3. The representative have the function of making an application and the chairman may approve the applicant's statement;
4. With voice control function, you can adjust the voice sensitivity, smart open the microphone and set the closing time;
5. With 5 EQ adjustment function (adjustable PC software input password), it can be adjusted the different sound effects according to speaker's voice characteristics, to a perfect effect;
6. Support voting, election and rating function. Chairman unit has the function of launching a vote, and sign. Also achieve the data statistics without the PC;
7. Support custom voting, flexibly and conveniently.
Specification:
Model | TS-W101/TS-W101A |
Microphone Type | Heart-oriented directional electret |
Frequency Response | 80Hz~16KHz |
Microphone Input Impedance | 1KΩ |
Sensitivity | -46dBV/Pa |
Maximum SPL | 100dB(THD>3%) |
Sign Alto Noise Ratio | >80dB(A) |
Cross Talk | >70dB |
Dynamic Range | >80dB |
THD | <0.1% |
Maximum Power Consumption | 4W |
Headphone Load | >16Ω |
Headphone Volume | Maximum 40mW |
Headphone Interface | 3.5mm mono jack |
Follow The Specification | IEC60914 |
Power supply | Battery powered |
Color | gray |
Voting Function | Five-button election, three-button vote, a customized vote |
Check-in Function | Press the key to sign in |
Display Screen | 4.3inchcolorscreen |
Size(mm) | 196(L)×134(W)×63(H) |
Installation Method | Desktop style |
Radio Frequency Range | 5GHz |
Battery Capacity | 12936Amh |
Weight | About0.7Kg |
Standby Mode Work Duration | 24hours |
Speech Mode Work Duration | 15hours |
Mixed Mode Working Hours | 14hours |
System Diagram
Product List

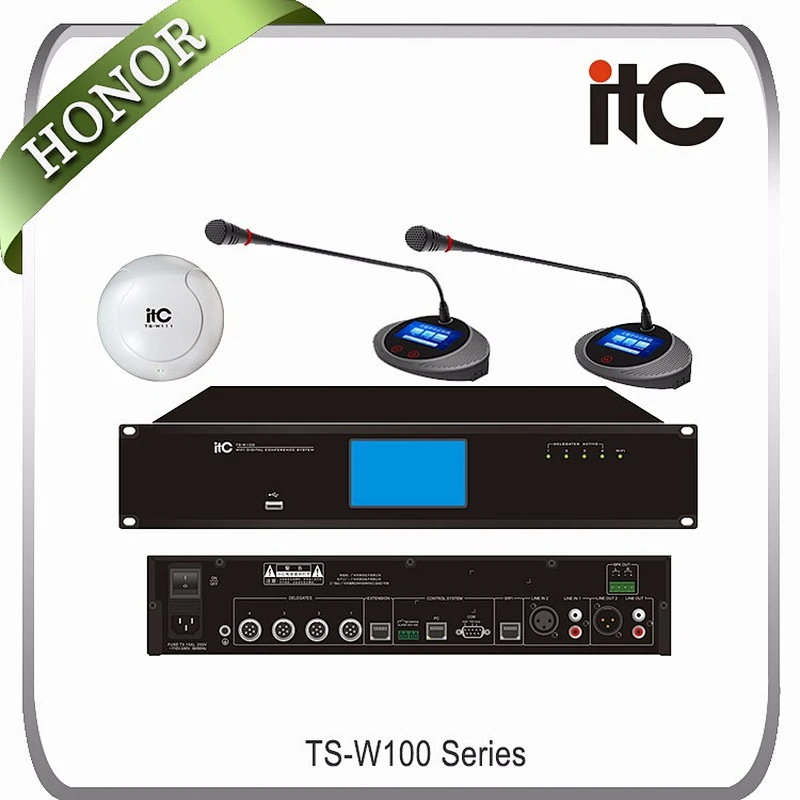

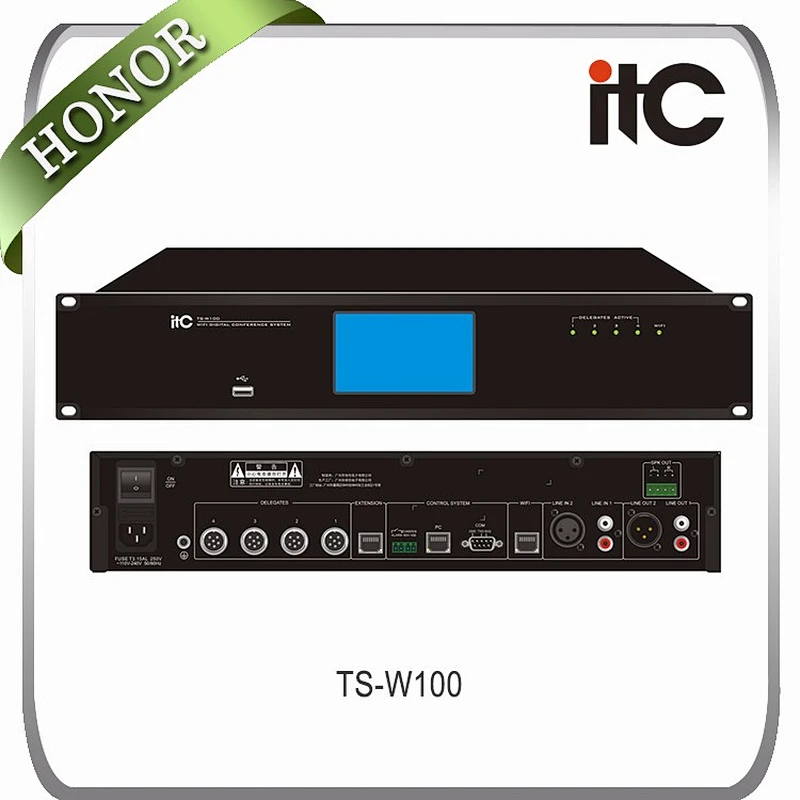

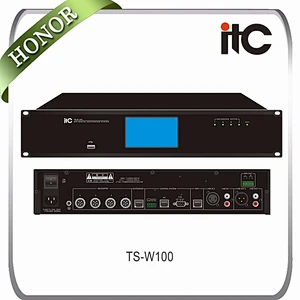

(A)TS-W100 Full Digital WIFI Conference System Controller

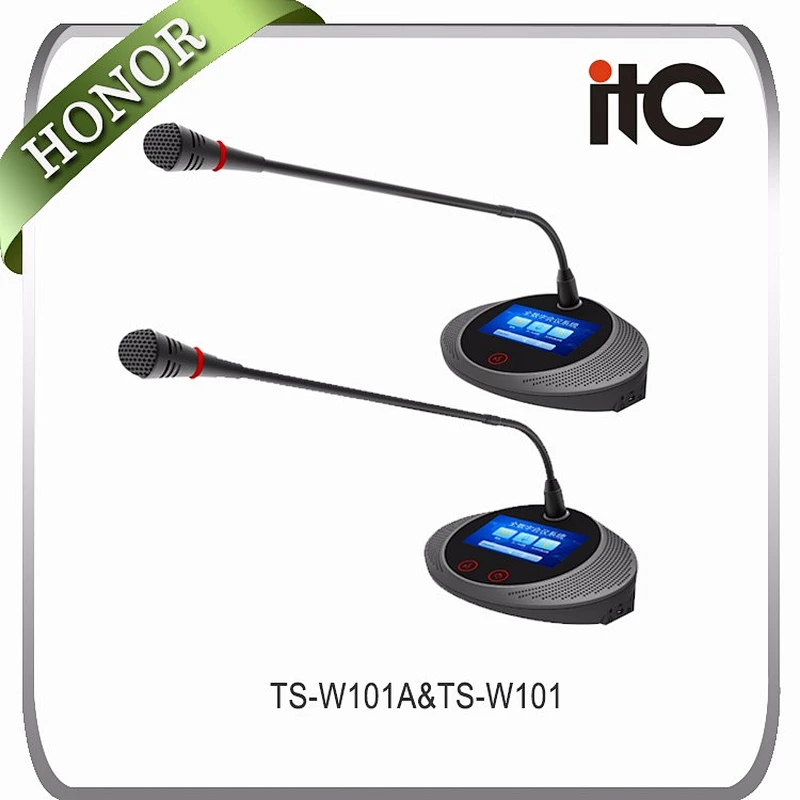

(B) TS-W101 Chairman Unit
(C)TS-W101A Delegate Unit
(D)TS-W111 AP Transmitter

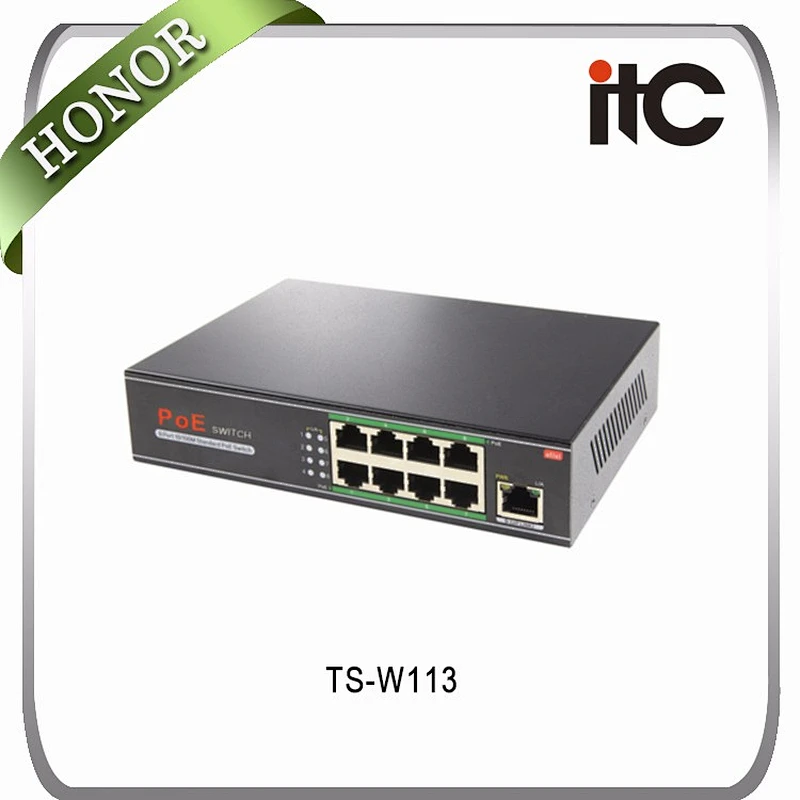

(E) TS-W113 Ethernet switch
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
