- Place of Origin:CN;GUA
- Use:Home Theatre
- Model Number:T-774P/T-774PW/T-775P/T-775PW/T-776P/T-776PW
- Brand Name:ITC
- Type:Passive
- Channels:1
- Use:Public Address
- Rated Power at 100V:3.75W, 7.5W, 15W, 30W
- Rated Power at 70V:1.9W, 3.75W, 7.5W, 15W, 30W
- Max. Power:60W
- Input:70V, 100V or 8 ohm
- Sensitivity:92dB
- Impedance (ohm):2.6K, 1.3K, 670, 330, 165
- Frequency Response:125 to 18KHz
- Speaker Driver:5'' x1 and 1.5'' x1
- Dimension:243*185*186mm
- Weight:2.7Kg

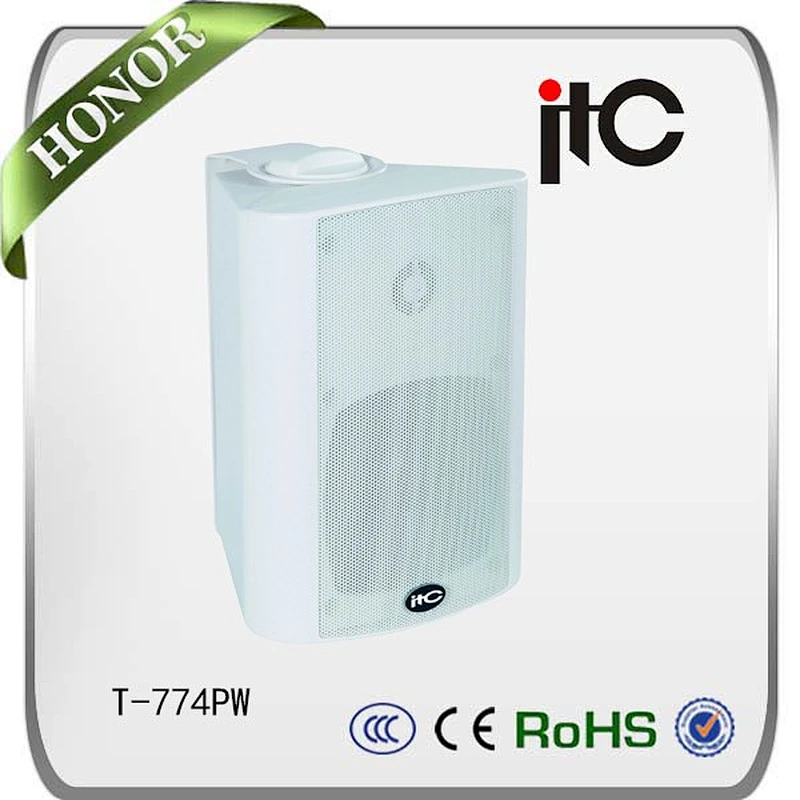

Best Selling Products In-wall Speakers for Home Theater
Feature:
lBuilt-in 100v/70v transformer
lWall mount type loudspeaker
l4” +1.5” two ways speaker unit
lPower taps 2.5w-5w-10w-20w @100V plus 8ohm
lMetal grille, ABS enclosure and stainless mounting bracket
Model | T-774P/T-774PW | T-775P/T-775PW | T-776P/T-776PW |
Rated Power at 100V | 2.5W, 5W, 10W, 20W | 3.75W, 7.5W, 15W, 30W | 5W, 10W, 20W, 40W |
Rated Power at 70V | 1.25W, 2.5W, 5W, 10W, 20W | 1.9W, 3.75W, 7.5W, 15W, 30W | 2.5W, 5W, 10W, 20W, 40W |
Max. Power | 40W | 60W | 80W |
Input | 70V, 100V or 8 ohm | 70V, 100V or 8 ohm | 70V, 100V or 8 ohm |
Sensitivity | 86dB | 92dB | 94dB |
Impedance (ohm) | 4K, 2K, 1K, 500, 245 | 2.6K, 1.3K, 670, 330, 165 | 2K, 1K, 500, 250, 122 |
Frequency Response | 130 to 18KHz | 125 to 18KHz | 120 to 18KHz |
Speaker Driver | 4'' x1 and 1.5'' x1 | 5'' x1 and 1.5'' x1 | 6'' x1 and 1.5'' x1 |

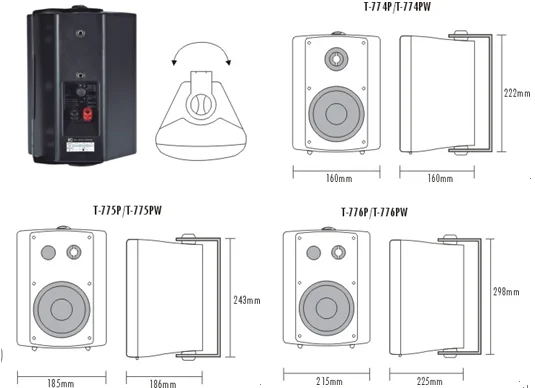

Dimension | 222*160*160mm | 243*185*186mm | 298*215*225mm |
Weight | 2.3Kg | 2.7Kg | 4.1Kg |

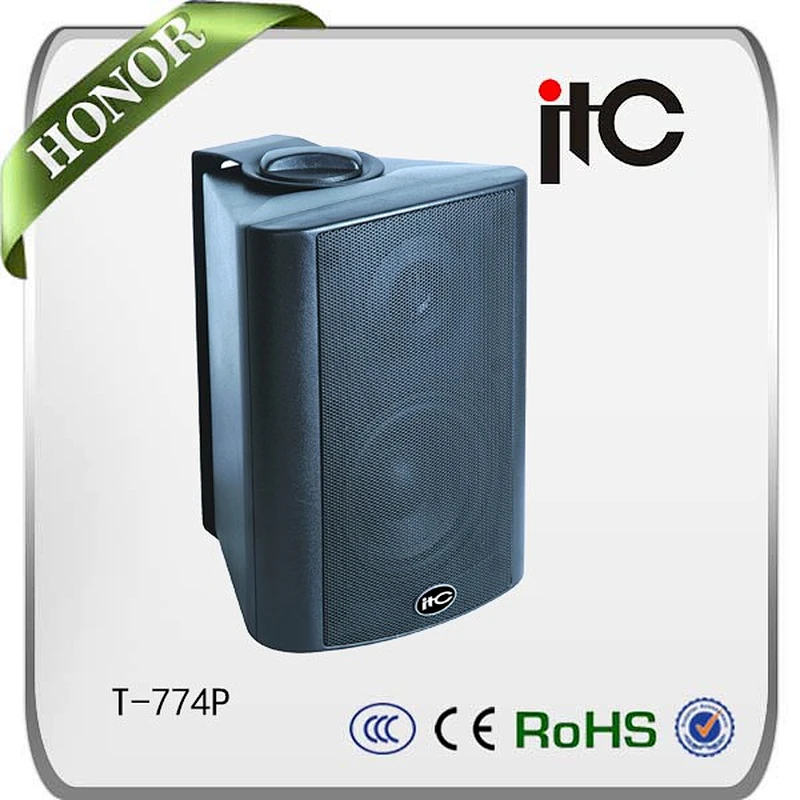

The T-774P is a wall mount speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 4”+1.5” two ways speaker driver is designed of wide frequency response 130-18KHz, the multiple power taps 2.5W, 5W, 10W & 20W are helpful for different applications varies from room size and ambient noise surroundings.
The metal grille, ABS enclosure and stainless mounting bracket are of black color. Easy and secure wall mount installation through the supplied mounting bracket.

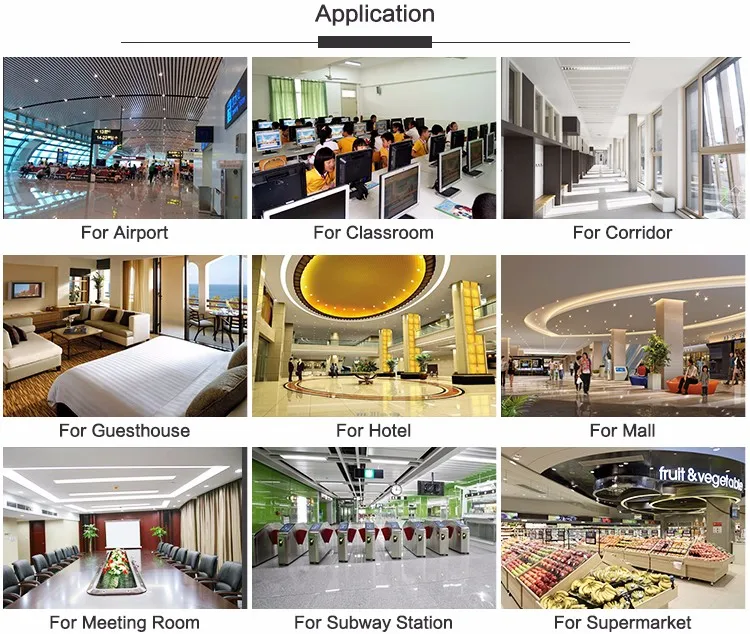

It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our productare complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
