ITC T-612 Favorable 10W 6" and 2.5" Two Way Wall Mount Speaker Sound

Model NO.
T-612
Delivery
FOB
Minimum order quantity
500 units
Supply Ability
1000 units / Week
Country of Origin
Guangzhou, Shenzhen or HK
Quantity:
  • Place of Origin:CN;GUA
  • Use:Home Theatre
  • Model Number:T-612
  • Brand Name:ITC
  • Type:Passive
  • Channels:2 (2.0)
  • Use:Public Address
  • Power Taps @100V:2.5W/5W/10W
  • Power Taps @70V:0.75W/1.5W/3W
  • Impedance:Black: Com Red:6.7 KΩ/3.3 KΩ/1.7KΩ
  • SPL(1W/1M):90dB±3dB
  • Max. SPL (Rated W/1M):98dB
  • Frequency Response (-10dB):90-18KHz
  • Finish:Baffle: ABS, White Grille: Steel, Gray
  • Speaker Driver:5"* 1 2.5"* 1
  • Dimension:285 * 200 * 85mm
  • Weight:1.3kg

ITC T-612 Favorable 10W 6"and 2.5"Two Way Wall Mount Speaker Sound

Product Description

Product Description.jpg

  • Built in 100V/70v transformer
  • 6"+ 2.5"2 ways speaker unit
  • Power taps 2.5W-5W-10W @100V
  • Metal grille and ABS enclosure of white color
  • Easy and fast wall mount installation

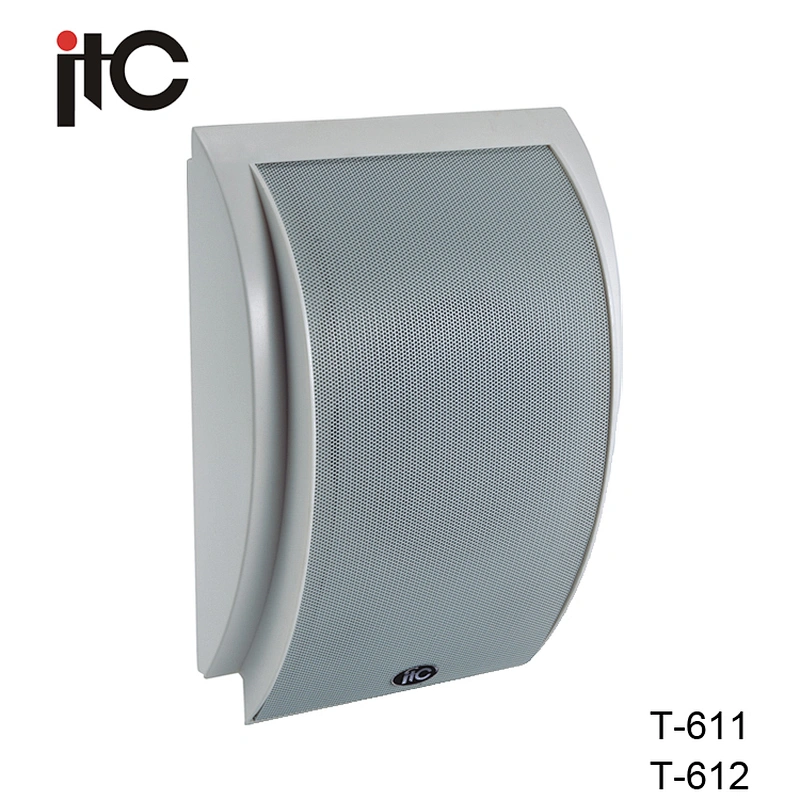

T-611 T-612T-612.jpg

T-612 is a wall mount BGM speaker built in 70V/100V transformer. The transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple speakers.

The internal 6”+2.5"2 ways speaker driver is designed for wide frequency response 90-18kHz, the 2.5W, 5W & 10W three power taps are helpful for different applications varies from room size and ambient noise surroundings.

The metal grille and ABS enclosure are of white color. Easy and secure wall mount installation.

It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.

Specification

Model

T-612

Power Taps @100V

2.5W, 5W, 10W

Power Taps @70V

1.25W, 2.5W, 5W

Impedance

Black: Com Red:4KΩ/2 KΩ/1 KΩ

SPL(1W/1M)

91dB±3dB

Max. SPL (Rated W/1M)

101dB

Frequency Response (-10dB)

90-18KHz

Finish

Baffle: ABS, White Grille: Steel, White

Speaker Driver

6"x 1 2.5"x 1

Dimension

340 x 240 x 100mm

Weight

1.7kg

Mounting

Hook

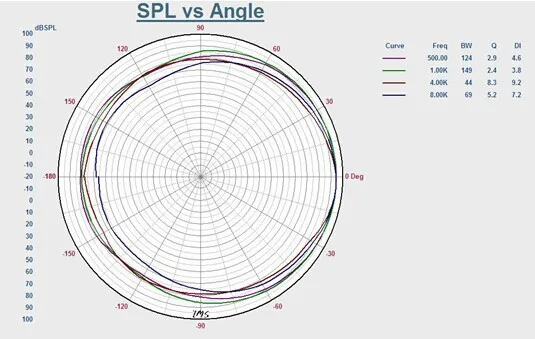

Direction Diagram

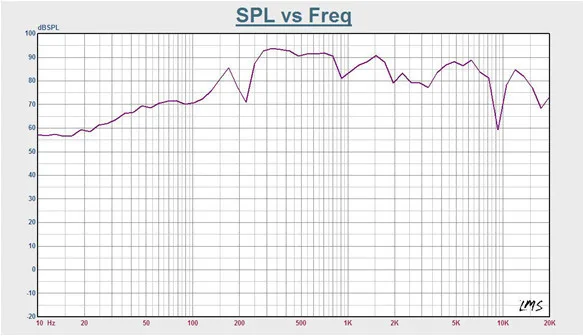

Frequency Response


Company Information


Certifications

_09ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our productare complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
