- Place of Origin:CN;GUA
- Use:Home Theatre
- Use:Karaoke Player
- Model Number:T-774H T-774HW T-775H T-775HW T-776H T-776HW T-778H T-778HW
- Brand Name:ITC
- Type:Passive
- Channels:2 (2.0)
- Use:Public Address
- Certification:CCC CE
- Rated Power at 100V:7.5W, 15W, 30W, 60W
- Rated Power at 70V:3.75W, 7.5W, 15W, 30W, 60W
- Max. Power:120W
- Sensitivity:89dB
- Impedance:1.3KΩ/670Ω/330Ω/165Ω/81Ω
- Frequency Response:100 - 20KHz
- Speaker Driver:8"x1 1.5"x1
- Dimension:450x295x290mm
- Weight:6.5Kg

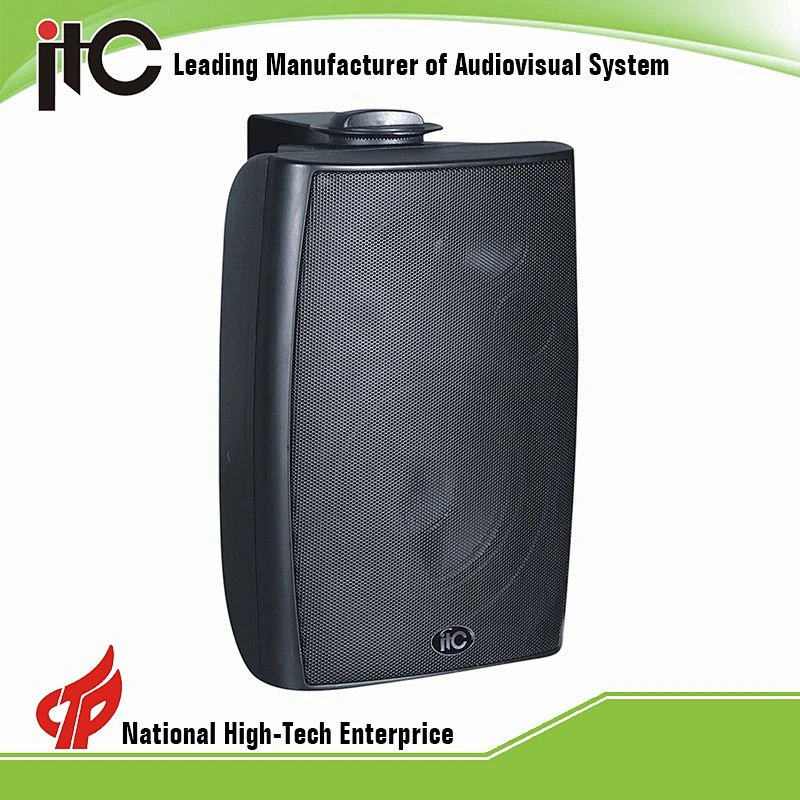

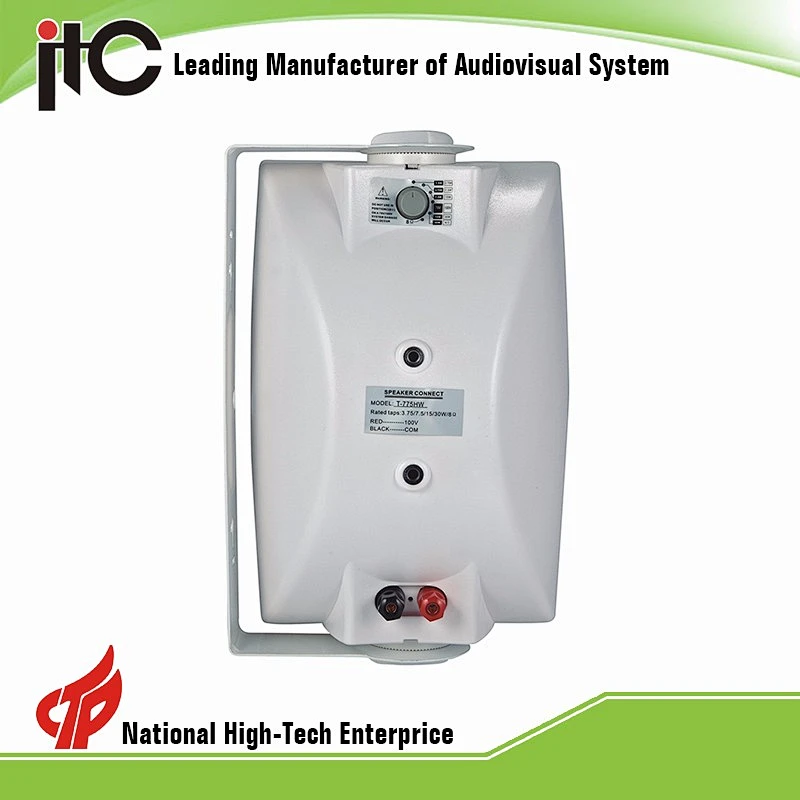

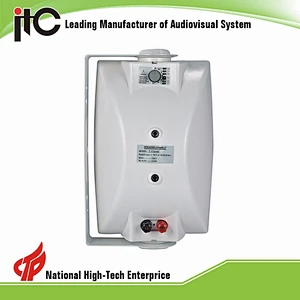

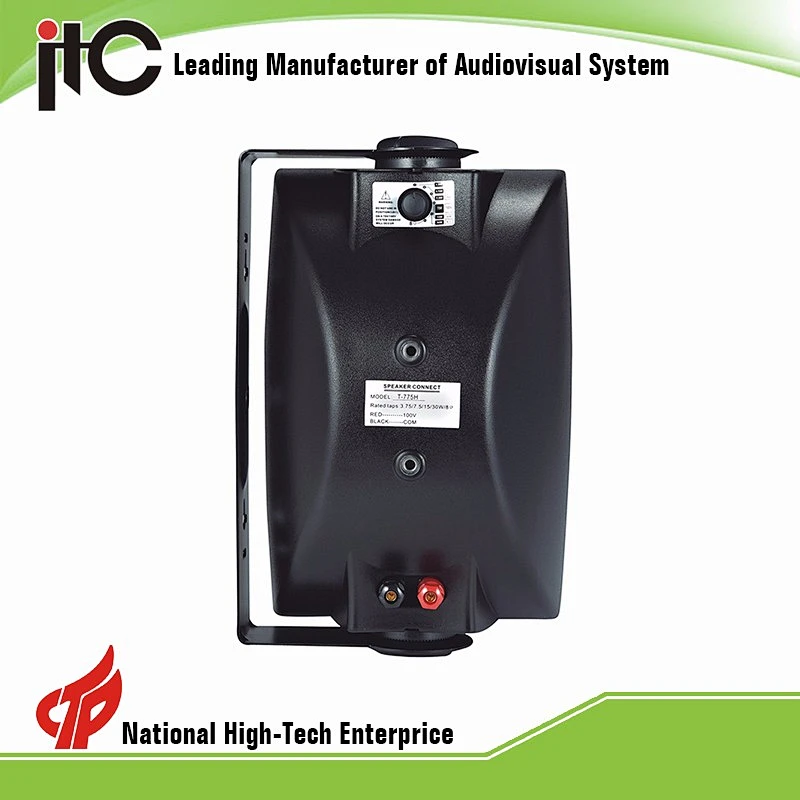

T-774H Series 20W 30W 40W 60W Sub Frequency Design PA Wall Mount Speaker
- Built-in 100V/70V transformer
- Wall mount PA speaker box
- 4"+ 1.5"2.0 speaker unit
- Power taps 2.5w-5w-10w-20w @100V plus 8ohm
- Metal grille, ABS enclosure and stainless mounting bracket
The T-774H/ T-774HW is a wall mount PA speaker box built in 70V/100V transformer. The 70V/100V transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple speakers.
The built-in 4"+ 1.5"2.0 speaker driver is designed for wide frequency response 120-18kHz, the multiple power taps 2.5W, 5W, 10W & 20W are helpful for different applications varies from room size and ambient noise surrounding.

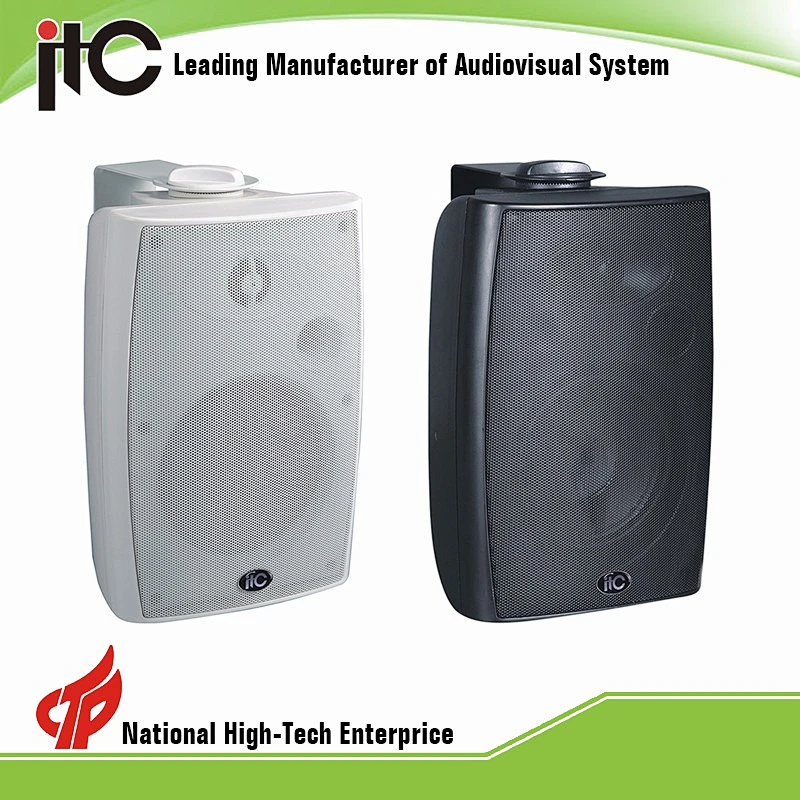

The metal grille, ABS enclosure and stainless mounting bracket are of black/ white color. Easy and secure wall mount installation through the supplied mounting bracket.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
Model | T-774HW |
Power Taps @100V | 2.5W, 5W, 10W, 20W |
Power Taps @70V | 1.25W, 2.5W, 5W, 10W, 20W |
Transformer Impedance | 4KΩ/2KΩ/1KΩ/500Ω/250Ω |
Input | 70V/100V/8Ω |
SPL(1W/1M) | 86dB |
Max. SPL (Rated W/1M) | 99dB |
Frequency Response (-10dB) | 120-18KHz |
Finish | Baffle: ABS, Black/White Grille: Steel, Black/White |
Speaker Driver | 4"x 1 1.5"x 1 |
Dimension | 260 x 170 x 170mm |
Weight | 2.3kg |
Mounting | With mounting bracket fixed by screw |
Dimension
Direction Diagram
Frequency Response
