- Place of Origin:CN;GUA
- Use:Home Theatre
- Use:Karaoke Player
- Model Number:T-774S Series
- Brand Name:ITC
- Type:Passive
- Channels:2 (2.0)
- Use:Public Address
- Rated power(100V):30W
- Maximum power:60W
- Sensitivity:89dB
- Impedance:333Ω
- Frequency response:90-20KHz
- Material:plastic
- Speaker unit:4"* 1 1.5"* 1
- Size:276 * 170 * 170mm
- Weight:2.5Kg

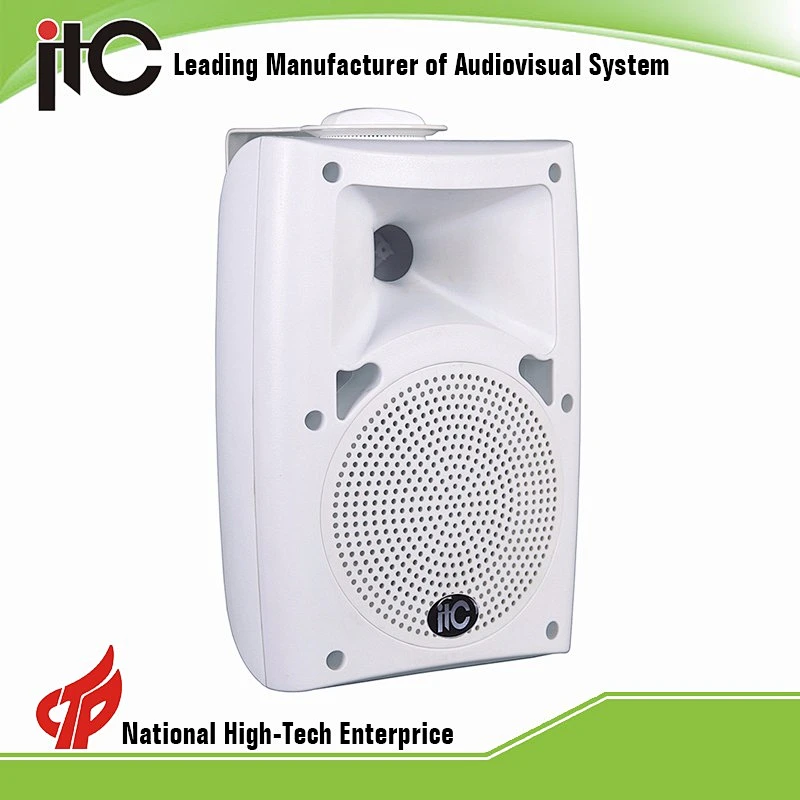

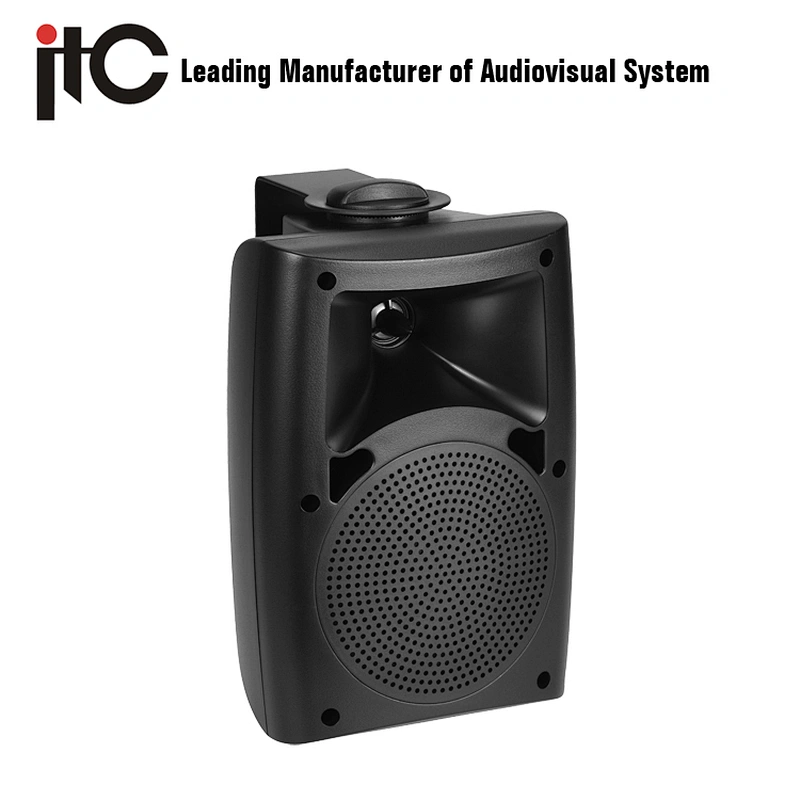

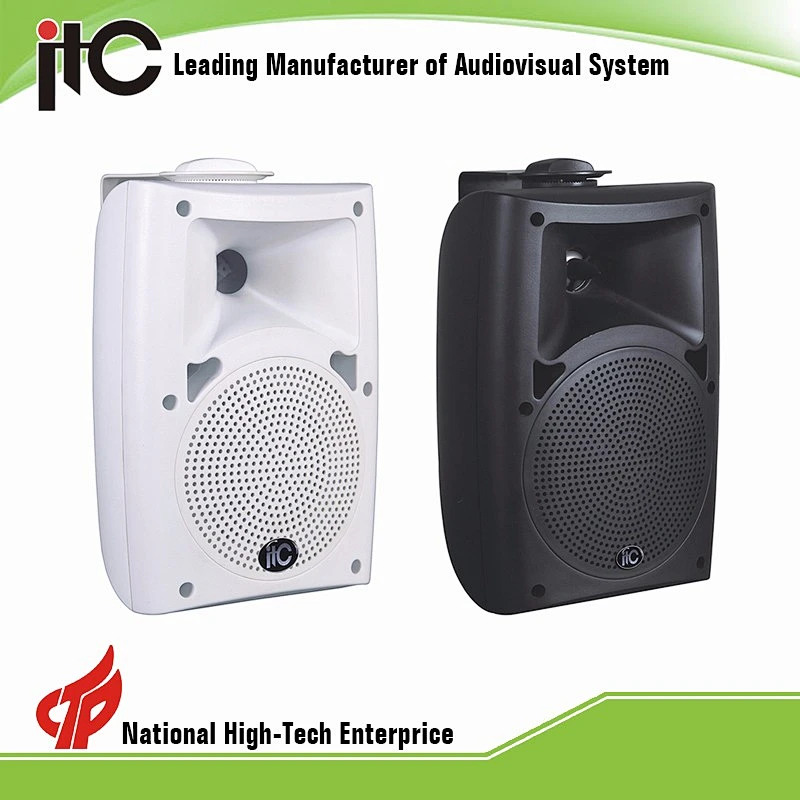

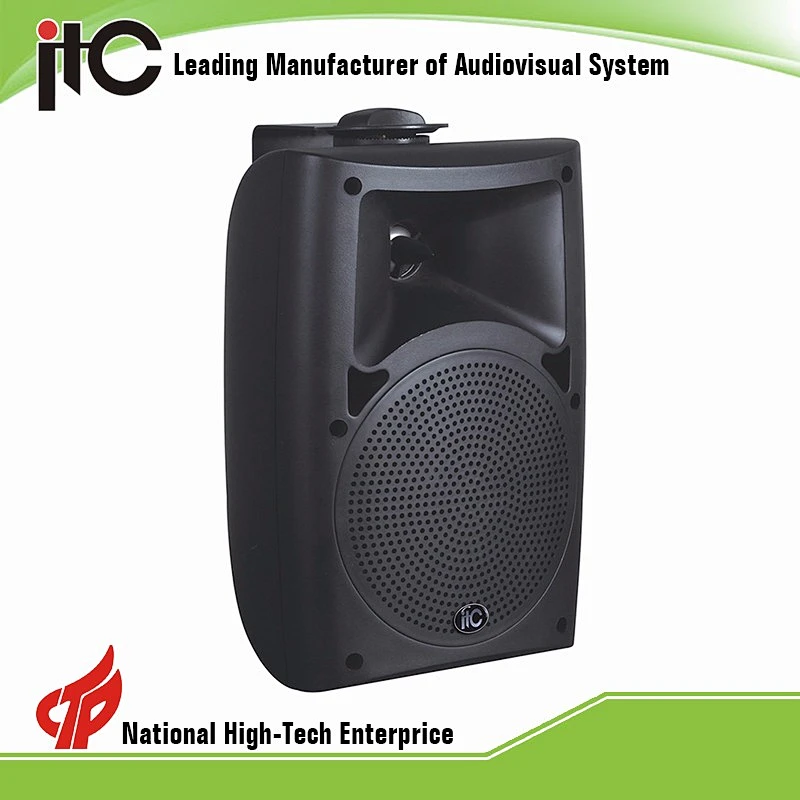

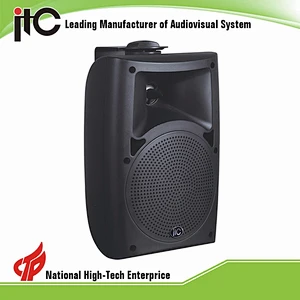

T-774S Series Dual-way PA In Wall Speakers Waterproof
1) Upscale wall mount outdoor speaker;
2) High-power while small sized;
3) Stylish appearance;
4) Horn type tweeter and sub-frequency design;
5) Cost effective and convenient installation;
6) Suitable for various outdoor occasions.
The T-774S/T-774SW is a wall mount loudspeaker box built in 70V/100V transformer. The 70V/100V transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.
The built-in 4"+ 1.5"dual-way loudspeaker driver is designed of wide frequency response 90-20KHz, the RMS 30W power outputs are suitable for most of the applications.
The ABS grille, ABS enclosure and stainless mounting bracket are of black color. Easy and secure wall mount installation through the supplied mounting bracket.
It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
Model | T-774S/T-774SW | T-775S/T-775SW | T-776S/T-776SW |
Rated Power at 100V | 30W | 50W | 60W |
Max. Power | 60W | 100W | 120W |
Sensitivity | 89dB | 90dB | 92dB |
Impedance | 333Ω | 200Ω | 166Ω |
Frequency Response | 90 - 20KHz | 80 - 20KHz | 60 - 20KHz |
Speaker Driver | 4” x1 1” x1 | 5” x1 1.5” x1 | 6” x1 1.5” x1 |
Dimension | 276x170x170mm | 285x180x186mm | 340x220x225mm |
Weight | 2.5Kg | 3Kg | 4.6Kg |
Direction Diagram
Frequency Response
Guangzhou ITC Electronic Technology Limited
* Operate a 30,000sqmfactory
*15years of audiovisual experience
* Integrating research, production, sales and service
* 10 major product series and 1,000+ models
* Support OEM & ODM service
* We have very strict quality control system.
* We promise the electronics yearly failure rate is less than 1%.
* 100% products need to be aged (full loading) at least 24 hours and tested 4 times before delivery.
We have 50 software copyright and 12 patents.
Product complied with certificates:
CE Certificate
ISO9001, ISO14001, IS018001, ISO27001
CCC Certificate: China Compulsory Certification
International Standard Product Making Certificate
Our sound system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou Asian Games and Expo 2016 Antalya. For now, we have up to 300,000 successful cases worldwide.
Buy now, we have been successfully conducting both import and export activities worldwide for 10 years with suppliers and buyers.
