- Place of Origin:CN;GUA
- Model Number:T-6760D T-67120D
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:1
- Network Interface:Standard RJ45 input
- Communication Protocol:TCP/IP, UDP, IGMP
- Audio Format:MP3/MP2
- Sampling Rate:8K~48KHz
- Transmission Speed:100Mbps
- Audio Mode:16 digit stereo CD sound level
- Bit Rate:8K-512Kbps
- Sensitivity:AUX IN: 350mV, MIC IN:5mV
- SNR:AUX: 80dB, MIC: 60dB
- Frequency Response:60HZ-18KHZ +1/-3dB

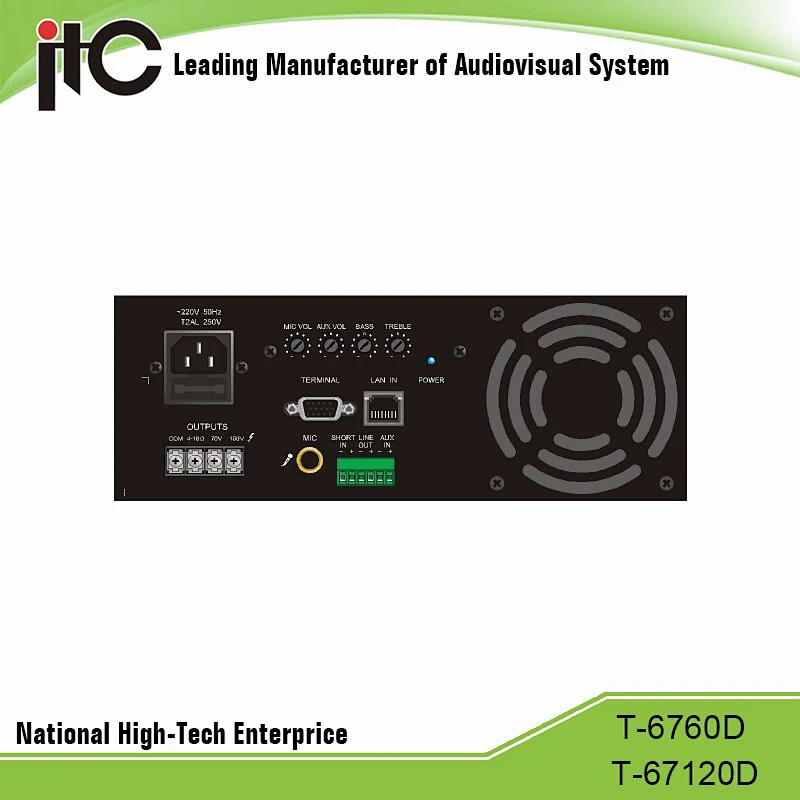

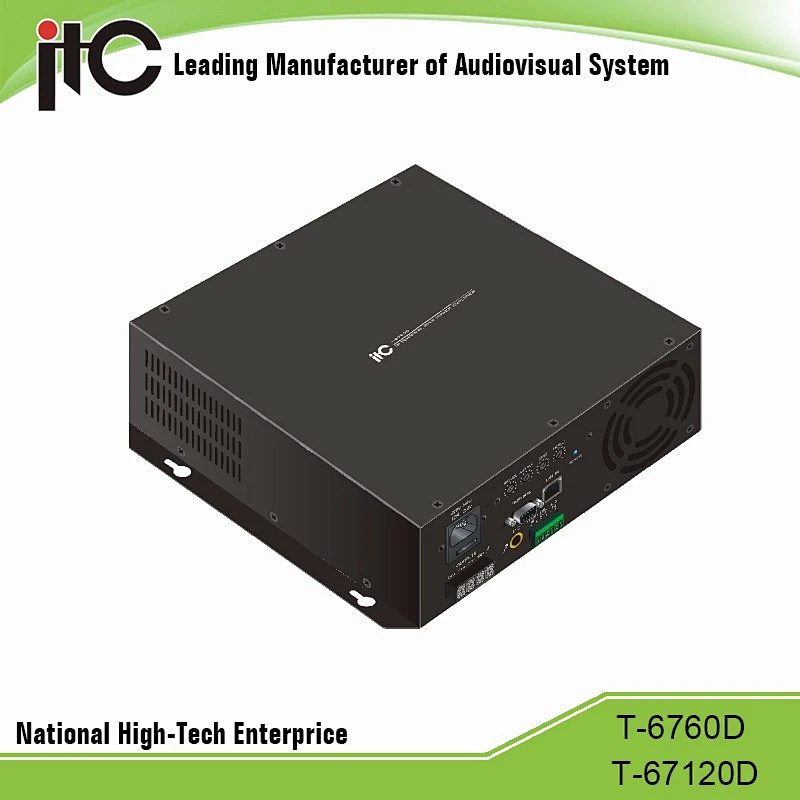

120W Class-D Digital IP Audio Amplifier Wall Mounted for PA System
Professional integrated wall-mounted amplifier with the best network audio decoder function, built-in digital amplifier.
Widely installed in weak-current rooms or Control room , the special place require position control like classroom, media room, meeting room, directly connect with speaker.
1) Wall mount, black aluminum panel, exquisite and high-class design.
2) 3.4 inch screen, show on-demand catalog, current playing.Infrared remote controller to control the playing content, easy control like play / pause, fast forward / rewind, AB repeat.
3) Adopt embedded computer technology and DSP audio processing technology; high-speed chip cut the start-up time less than 1 second.
4) Built-in one channel network hardware audio decoding module that supports TCP / IP, UDP, IGMP, could transmit 16 bits stereo CD audio signal.
5) Built-in digital amplifier, 60W / 120W, 4-16Ω output and 60W / 120W, 70V-100V output.
6) Adopt industrial-grade circuit design, suitable for bad outdoor environment, with short circuit protection, thermal protection, pressure limit function.
7) One AUX and one MIC input, with independent volume control, treble and bass control, support paging without network.
8) 1 SHORT IN port for trigger, short circuit to trigger the emergency public address.
9) Built-in intelligent power management, automatically cut off the amplifier power when no signal input, power amplifier, automatically turn on when there is audio signal input, preset the program to get this function.
10) Built-in audio processing to support multi-channel signal amplification and mixing, support three kinds of audio priority management.
11) Support DHCP, compatible router, switcher, bridges gateway, Modem, Intelnet, 2G, 3G, 4G, multicast, unicast and so on.
12) Support for at least three kinds of high security authorization, the safety factor is higher than the Web remote configuration.
13) Authorized the operation allowance in control center, configure the user name and password.
14) Support digital audio playback breakpoint play, to ensure the synchronization play.
15) Voice prompt when new configuration Sign-in.
16) Support PSTN phone broadcast, support SMS voice broadcast.
17) Support mobile WIFI on-demand, wireless remote controller on-demand.
18) Support serial port expansion on-demand, remote on-demand, program selection, volume control.
19) Support 15KVESD protection, built-in anti-thunder processing circuit.
20) Industrial amplifier circuit design, ensure to work well under to hostile outdoor environment.
21) One channel to download IP address serial port from PC, to modify IP address of decoding module.
22) Digital, easy expansion, no geographical restriction, no additional management equipment, withoutcables construction, easy installation.
23) Standby power less than 3W, Green and meet international standard.

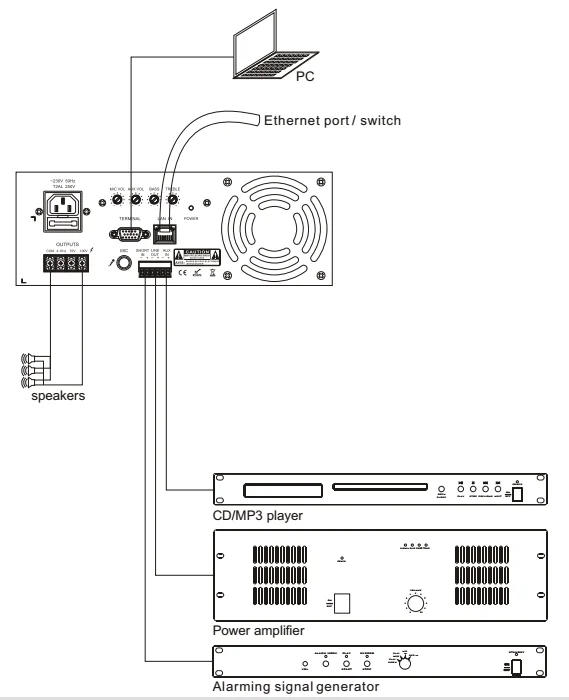

Schematic Diagram
Guangzhou ITC Electronic Technology Limited
* Operate a 30,000sqm factory
* 15 years of audiovisual experience
* Integrating research, production, sales and service
* 10 major product series and 1,000+ models
* Support OEM & ODM service
* We have very strict quality control system.
* We promise the electronics yearly failure rate is less than 1%.
* 100% products need to be aged (full loading) at least 24 hours and tested 4 times before delivery.
We have 50 software copyright and 12 patents
Product complied with certificates:
CE Certificate
ISO9001, ISO14001, IS018001, ISO27001
CCC Certificate: China Compulsory Certification
International Standard Product Making Certificate
Our Sound system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou Asian Games and Expo 2016 Antalya. For now, we have up to 300,000 successful cases worldwide.
Buy now, we have been successfully conducting both import and export activities worldwide for 10 years with suppliers and buyers.
