- Place of Origin:CN;GUA
- Model Number:T-6705A
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:1
- Communication Port:Standard RJ45
- Communication Protocol:TCP/IP, UDP, IGMP
- Transmission Speed:100Mbps
- Audio Mode:16 bit stereo audio in CD level
- Output Frequency Range:80Hz~16KHz
- T.H.D.:≤1%
- S/N Ratio:≥75dB
- AUX Input Level:350mV
- Line Output Level:1000mV
- MIC Input Sensitivity:5mV

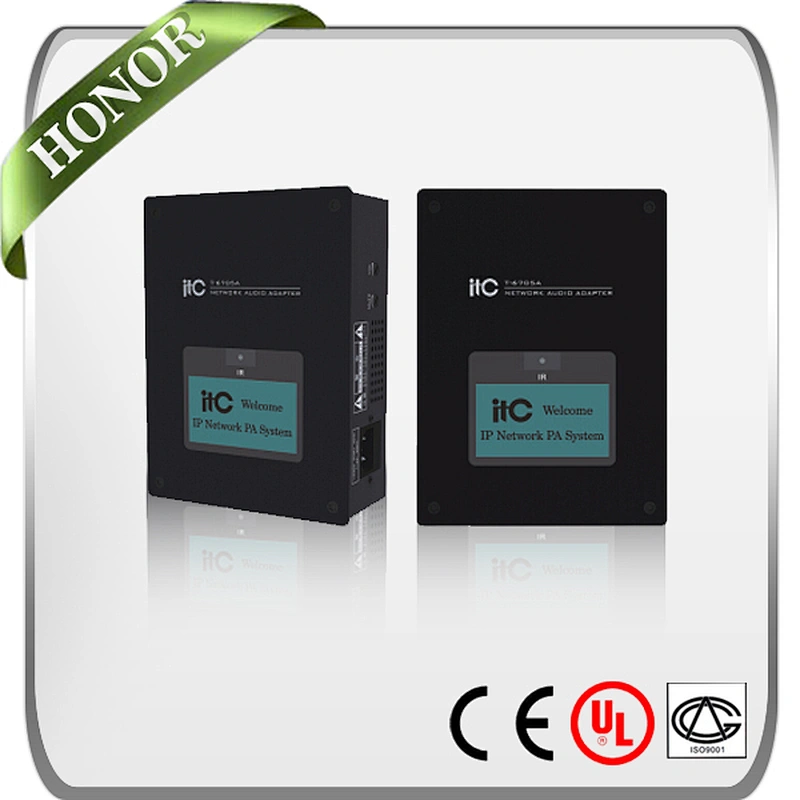

ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier
ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier
ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier
ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier
It’s suitable for normal classroom, multimedia classroom, office, conference room, etc where need program broadcast and local sound broadcast.
ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier
- It’s in rack mount design and its case is in material of brushed aluminum.
- With LCD to display status and it’s with remote controller for music play.
- It’s built in DSP and the start time is less than 1s.
- With network audio codec module, which support protocol of TCP/IP, UDP and IGMP to achieve network transmission for 16 bit stereo audio in CD level.
- With 2*10W(8 ohm) amplifier module.
- 1 AUX output to connect post-class power amplifier.
- 1 Mic input and 1 line input for local sound reinforce.
- With circuit of audio processor to support multiple channel sound reinforce, audio mixer and priority management of 3 level.
- Support the function of on-demand unicast in remote media base.
- Support mute control.
- Support PSTN phone broadcast and SMS voice broadcast.
- Support on-demand unicast by mobile phone via WIFI and support IR remote controller.
- Adopt unified authorization operation management system.
- Support DHCP, and it’s adaptive to multiple network structure, such as router, network switcher, gateway bridge, internet, 2G, 3G, 4G, etc.
- To imitate menu management of iOS.
- With protection circuit for lightning.
- 1 serial port connected to PC for changing the IP address.
- It’s expandable, for it’s digital product and adopt concept of common network.
ITC T-6705A 10W 2 Channel IP Network Public Address System Built in Audio Decoder and Amplifier
Model | T-6705A |
Communication Port | Standard RJ45 |
Communication Protocol | TCP/IP, UDP, IGMP |
Transmission Speed | 100Mbps |
Audio Mode | 16 bit stereo audio in CD level |
Output Frequency Range | 80Hz~16KHz |
T.H.D | ≤1% |
S/N Ratio | ≥75dB |
Output Impedance and power for external speaker | 8Ω, 2 x 10W Industrial standard terminal by crimping |
AUX Input Level | 350mV |
Line Output Level | 1000mV |
MIC Input Sensitivity | 5mV |
Working Temp. | 5℃~40℃ |
Working Humidity | 20%~80% Relative humidity, without dew |
Power Consumption | ≤35W |
Power Supply | ~110V/60Hz or ~230V/50Hz |
Dimension | 187 x 139 x 60mm |
Weight | 1.62Kg |
