- Place of Origin:CN;GUA
- Model Number:T-6700 Series
- Brand Name:ITC
- Communication Protocol:TCP/IP, UDP, IGMP
- Transmission Speed:100Mbps
- Audio Mode:16 bit stereo audio in CD level
- Communication Port:Standard RJ45
- T.H.D.:≤1%
- S/N Ratio:≥75dB
- Power Supply:~110V/60Hz or ~230V/50Hz
- Output Frequency Range:80Hz~16KHz
- Working Temp.:5℃~40℃
- Working Humidity:20%~80%

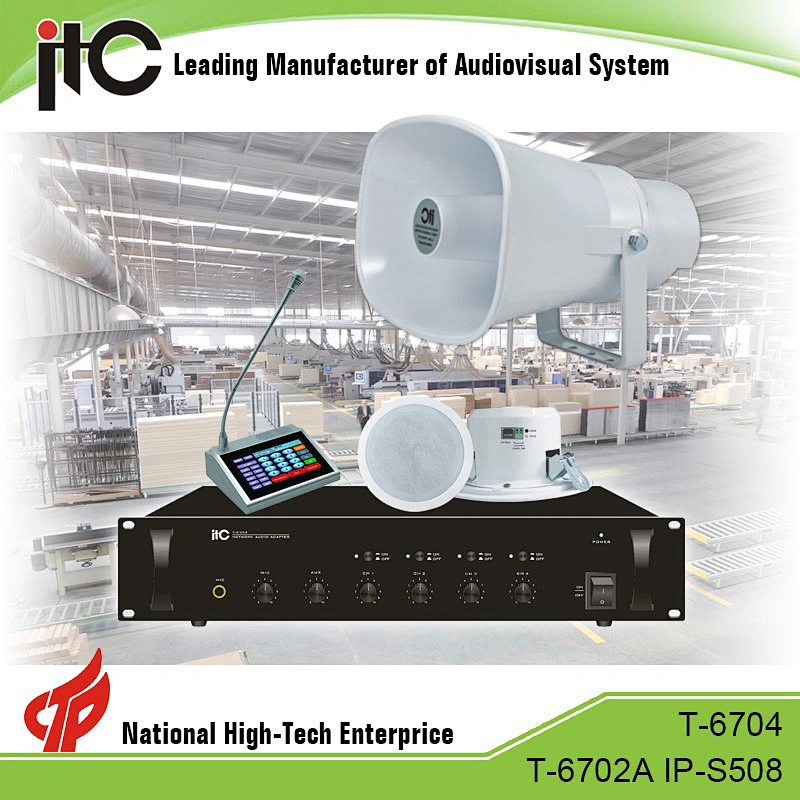

Professional Large Digital Audio Matrix IP PA Paging Equipment IP Audio System
Your Preferred Choice for Economical PA System
ITC Public Address PA System,using modern communication network, apply for differentarea
like:School, Office Building, Bank, Hospital, Square Park, Airport, Station, Terminal, Prison and soon. It completely solves the defects of the traditional broadcasting system like short distance, poor audio quality,complicated maintenance and management, poor interaction and so on.
Function Introduction
IP Public Address & Intercom System is to achieve broadcast, paging, voice alarm and duplex communication over LAN or WAN. It runs on common network.
Selling Points
1. Delay is less than 0.1s
2. Low rate of network occupancy and each channel takes about 0.1Mbps
3. Frequency response is from 20Hz to 16KHz
4. Could work with the third-party system easily, such as CCTV, fire fighting system and so on
5. Strong capacity for load; Support more than 1000 network terminals working at the same time
General System Diagram
Product List
1) T-6702 IP Network Remote Paging Microphone
2) T-6701 Series IP Audio Terminal
3) T-67120 Series IP Amplifier
4) T-6223(A) IP Network Fire Alarm Receiver
5) T-6703 IP Waterproof Intercom Terminal
6) T-6732 IP Vandal Proof Intercom Terminal
Product Detail

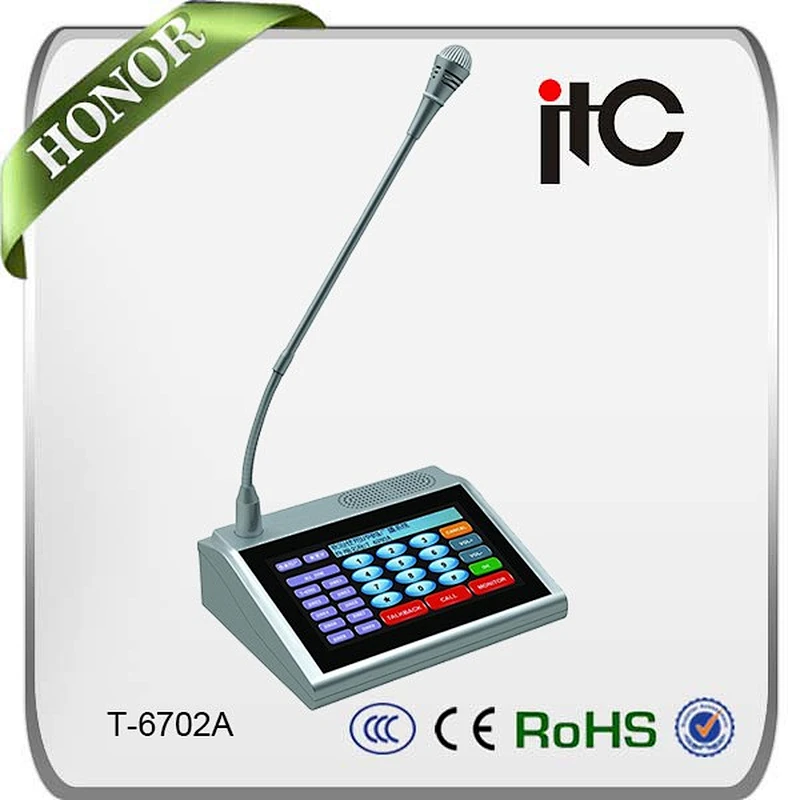

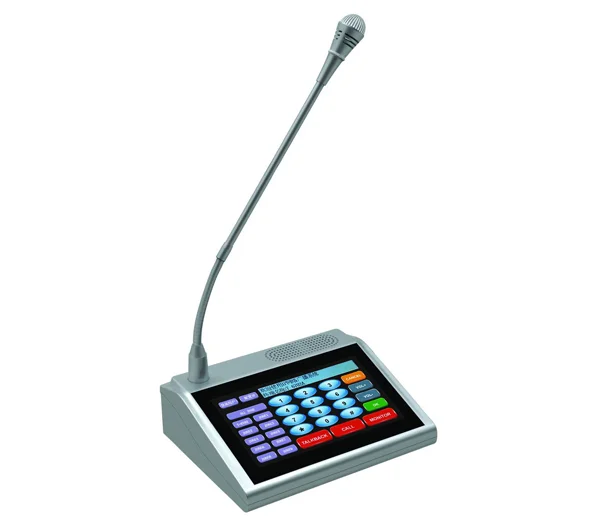

T-6702
Model | T-6702 |
Network Input | Standard RJ45 |
Communication Protocol | TCP/IP, UDP, IGMP |
Audio Format | MP3/MP2 |
Sampling Rate | 8K~48KHz |
Transmission Speed | 100Mbps |
Audio Mode | 16 digit stereo CD sound quality |
Frequency Response | 80Hz~16KHz |
T.H.D. | ≤1% |
S/N Ratio | >70dB |
Built-in monitor speaker | 4Ω, 2W |
Aux Input | 350mV Industry-standard voltage wire terminals |
Aux Output | 1000mV Industry-standard voltage wire terminals |
Aux Output Impedance | 470Ω |
Mic impedance | 10mV |
Working temp | 5℃ ~ 40℃ |
Humidity | 20%~80% Relative humidity, without condensation |
Power Consumption | ≤10W |
Power Supply | DC 24V |
Dimensions | 200x145x48.5mm |
Weight | 1.40Kg |
Other hot sales system
1. T-6600 8*16 Audio Matrix PA System
2. VA-6000 Fire Alarm Voice Evacuation System
3. T-6716 TCP IP Waterproof Emergence Intercom System
4. T-6232 10 Zone Weekly Time with MP3
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
