- Place of Origin:CN;GUA
- Model Number:T-6760/T-67120/T-67240/T-67350/T-67500
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:1
- Power Output:60W/120W/240W/350W
- Speaker Output:70V, 100V & 4-16ohm
- Network Input:Standard RJ45
- Protocol Support:TCP/IP, UDP, IGMP
- Audio Format:MP3/MP2
- Sampling Rate:8K~48KHz
- Bit Rate:8K~512Kbps
- Transmit Speed:10Mbps
- Frequency Response:60-18KHz(+1dB, -3dB)
- THD:THD ≤ 0.1%

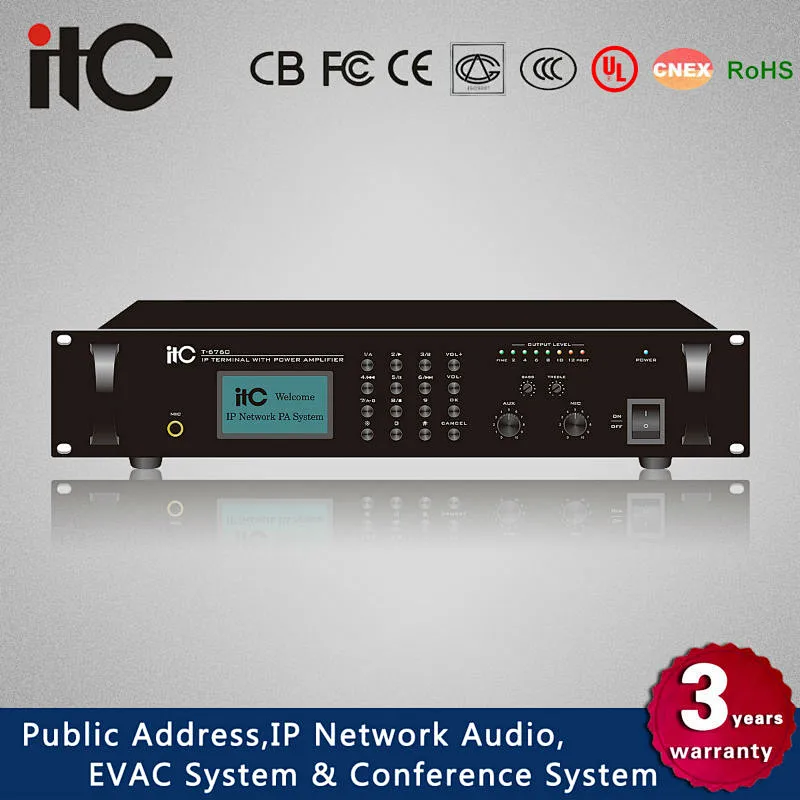

ITC T-6760 Series IP PA Audio Power Amplifier
ITC T-6760 Series IP PA Audio Power Amplifier
ITC T-6760 Series IP PA Audio Power Amplifier
ITC T-6760 Series IP PA Audio Power Amplifier
Suitable to be installed in Public Address System management room. Used to play broadcasts and do paging.
ITC T-6760 Series IP PA Audio Power Amplifier
- Standard rack mount design and it’s in brushed aluminum case.
- It’s with industrial LCD screen in 3.4 inch and it’s anti-IR interference.
- It’s built in DSP so that it could process information quickly and start up less than 1s.
- It’s built in codec module to process network audio and it supports multiple protocol including TCP/IP, UDP, IGMP, which achieve transmitting stereo audio in 16 bit in the network.
- It’s built in hifi analog amplifier(60W/120W/240W/350W/500W) with constant voltage output at 70V or 100V and constant impedance output at 4 to 16 ohm.
- With 1 AUX input and 1 Mic input with individual treble/bass control and volume control.
- With 1 EMC input with highest priority.
- With 1 AUX output to connect external power amplifier.
- With 1 3-wire forced switching output for volume control.
- Built in intelligent power management. When signal is input, it would be turned on automatically. Vice versa. And users could write program to control the power.
- With function to preset the mute depth and the background music.
- Support remotely unicast.
- Support DHCP and it’s compatible to multiple network structure including router, switcher, gateway bridge, moderm, intelnet, 2G, 3G, 4G, multicast, unicast, etc.
- Support at least 3 kinds of safe authorization IP configuration and its safety factor is higher than remote configuration of Web.
- With authorization operation management system.
- Support PSTN phone broadcast and SM voice broadcast.
- Support on demand unicast via Wifi and IR remote controller.
- Support spare line design for power supply at DC 24V
- With indicator to display status, level, protection, standby, etc.
- Support PC to modify its IP address via its serial port.
- This IP PA system adopt common network design so that the installation is convenient.
- Standby power is less than 3W.
ITC T-6760 Series IP PA Audio Power Amplifier
Model | T-6760 | T-67120 | T-67240 | T-67350 | T-67500 | |
Power Supply | AC 220V | |||||
Network Interface | RJ45 | |||||
Transmission Speed | 100Mbps | |||||
Communication Protocol | TCP/IP, UDP, IGMP | |||||
Audio Format | MP3/MP2 | |||||
Audio Mode | Stereo audio in 16 bit | |||||
Sampling Rate | 8K~48KHz | |||||
Bit Rate | 8K-512Kbps | |||||
EMC Input Sensitivity | 775mV (Unbalance) | |||||
AUX Input Sensitivity | 350mV (Unbalance) | |||||
MIC Input Sensitivity | 5mV (Unbalance) | |||||
Treble | ±10.5dB | |||||
Bass | ±10.5dB | |||||
S/N Ratio | ≥65dB | |||||
THD | ≤1% | |||||
Speaker Output | 70V, 100V & 4-16ohm | |||||
Protection | Short, over-heat, overload, etc | |||||
Rated Power Output | 60W | 120W | 240W | 350W | 500W | |
Power Consumption | 90W | 180W | 370W | 540W | 750W | |
Working Temp. | 5℃~40℃ | |||||
Standby Power | <3W | |||||
Humidity | 20%~80% | |||||
Frequency Response | 60HZ-18KHZ +1/-3dB | |||||
Power Supply | ~110V/60Hz or ~230V/50Hz | |||||
Dimension | 484 x 303 x 88mm | 484 x 359 x 132mm | ||||
Weight | 8.02Kg | 9.70Kg | 13.66Kg | 15.52Kg | 18Kg | |
