- Place of Origin:CN;GUA
- Model Number:T-7702A
- Brand Name:ITC
- Certificate:CCC CE
- Network Interface:RJ45
- Supported protocol:TCP/IP, UDP, IGMP (Multicast)
- Audio type:MP3/MP2
- Sampling rate:8K~48KHz
- Transmission speed:100Mbps
- Audio module:16 stereo CD sound quality
- Output frequency:80Hz~16KHz
- THD:≤1%
- Dimension (WxDxH):215 x 145 x 63mm

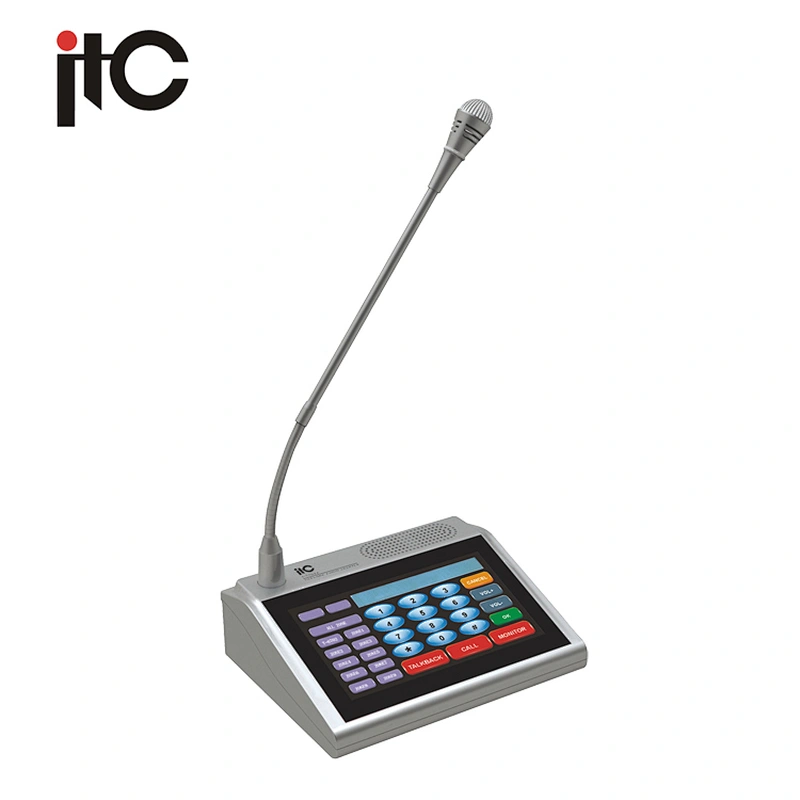

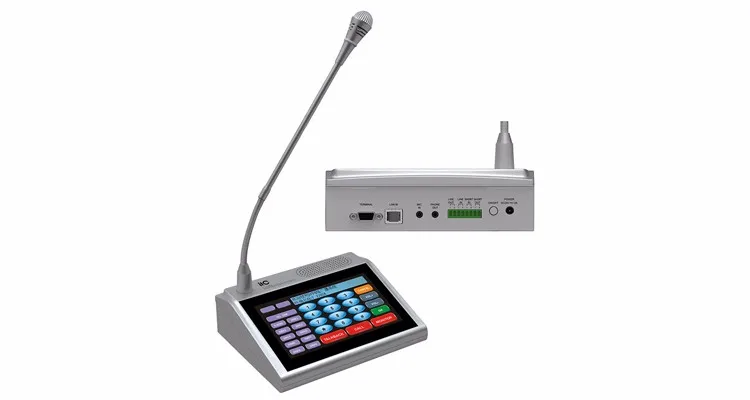

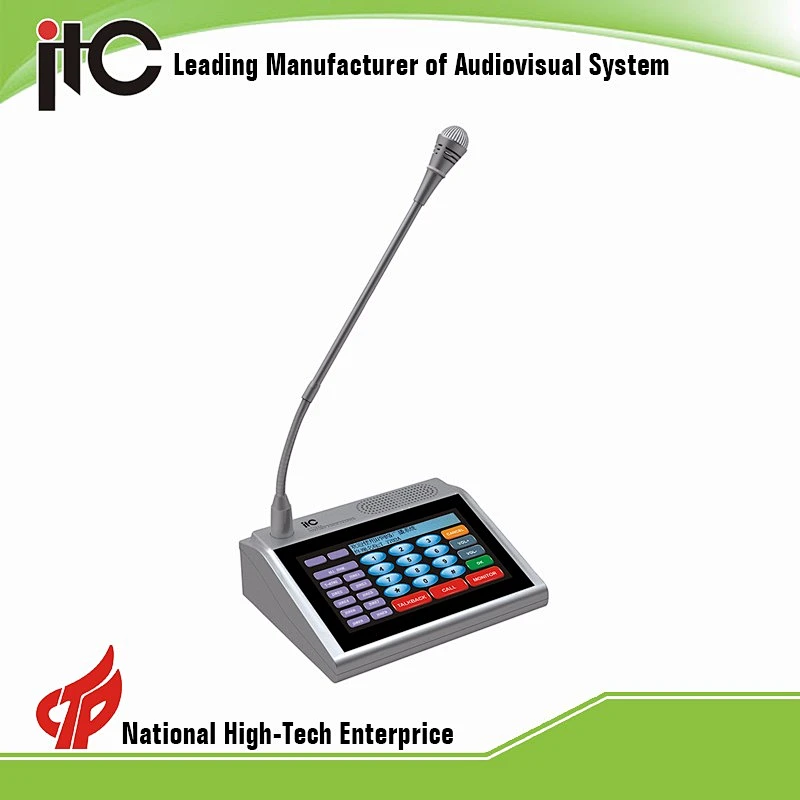

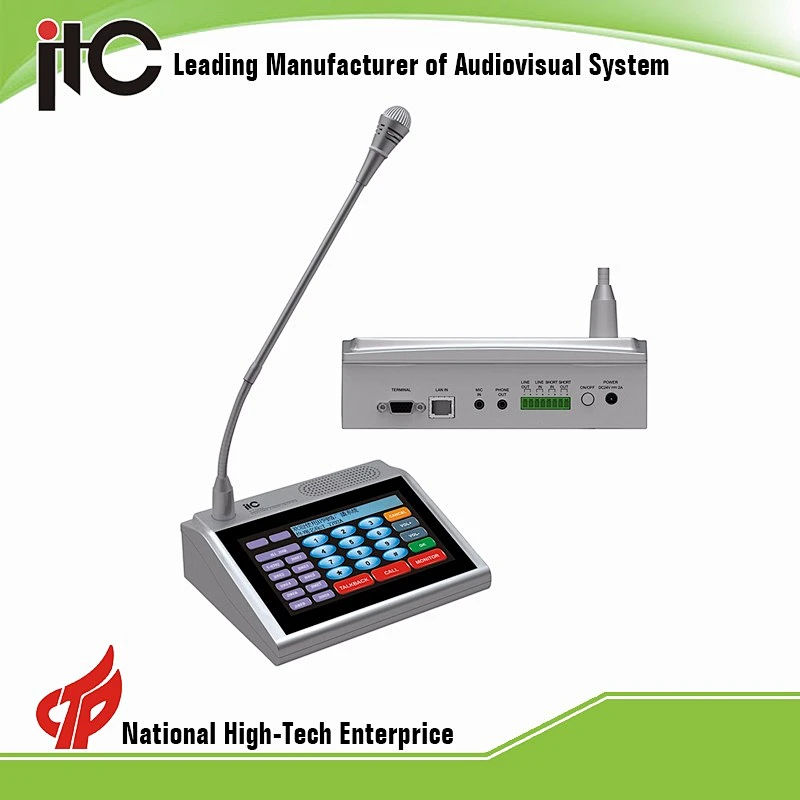

Internal Touch Screen Desktop Communication Intercom Paging Microphone
Your Preferred Choice for Economical PA System
Installed in the main controlling room, duty room or leader office, you can proceed the one-way
broadcast (to point, partition or all zones), and full intercom.
Features
* Desktop design, black aluminum oxide wiredrawing panel, delicacy and beautiful, exquisite
technique with perfect modern sense.
* It has industrial grade 3.4 inch LCD display, 21 industrial grade metal buttons, and has super-strong anti-disturbance performance to avoid IR operation un-stability.
* It is built-in computer technique and DSP audio processing technique, it is adopted high-speed industrial grade chip with less than 1s run-up time.
* It is built-in network hardware audio decoding module, supports TCP/IP, UDP, IGMP (multicast) protocol, it can realize the audio signal of the networking transmission 16 bit stereo CD sound quality.
* It supports full duplex and full intercom functions with network echo cancellation module. The network delayed time is less than 100ms. The network. echo cancellation howling is completely restrained.
* It built-in a 2W full frequency monitoring speakers with clear and loud sound.
* It built-in hands-free call function and supports user-defined answer ways.
Model | T-7702 |
Network Interface | RJ45 |
Network Protocol | TCP/IP, UDP, IGMP (Grouping Public Address) |
Audio Format | MP3/MP2 |
Sampling Rate | 8K to 48KHz |
Transmission Speed | 100Mbps |
Audio Type | 16 Bit Stereo Sound in CD Level |
Screen Size | 7” |
Screen Resolution | 800x480 Pix |
Screen Type | DGUS Screen of 64K Color |
Button Type | Virtualization QWERTY |
Impedance & Rated Power of the Internal Speaker | 4Ω, 2W |
THD | ≤1% |
Frequency Response | 80Hz to 16KHz, +1dB/-3dB |
SNR | >68dB |
Impedance & Rated Power of Headset Output | 32Ω, 20mW |
Line Output Level | 1000mV, industrial standard press line connector |
Line Output Impedance | 470Ω |
Line Input Sensitivity | 350mV, industrial standard press line connector |
Mic Input Sensitivity (Unbalanced) | 10mV |
Short Input | Dry Connector |
Short Output | Dry Connector of 3A/120V |
Working Temp. | 5℃ to 40℃ |
Working Relative Humidity | 20% to 80%, no condensing |
Power Consumption | ≤10W |
Standard Power Supply | DC 24V |
Normal Working Power Supply | DC 12V to 24.5V |
Dimension | 215x145x63mm |
Weight | 1.25Kg |
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our product are complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
