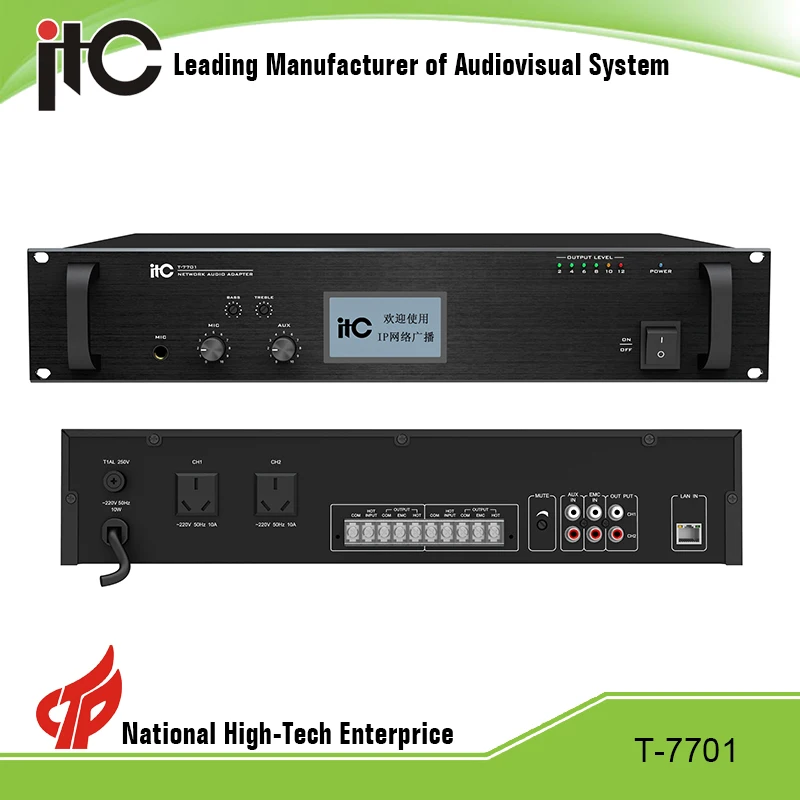

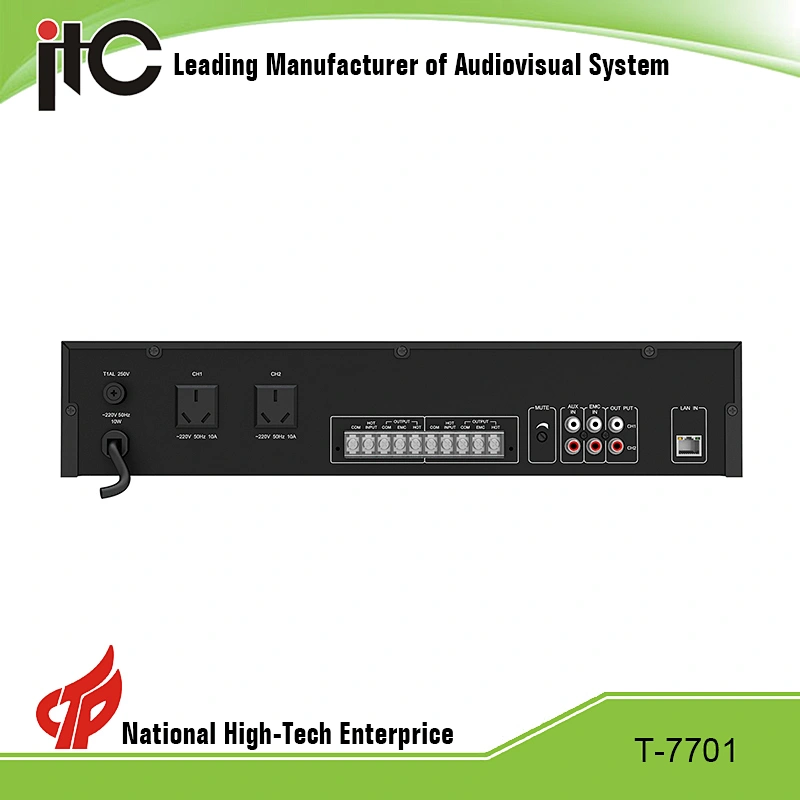

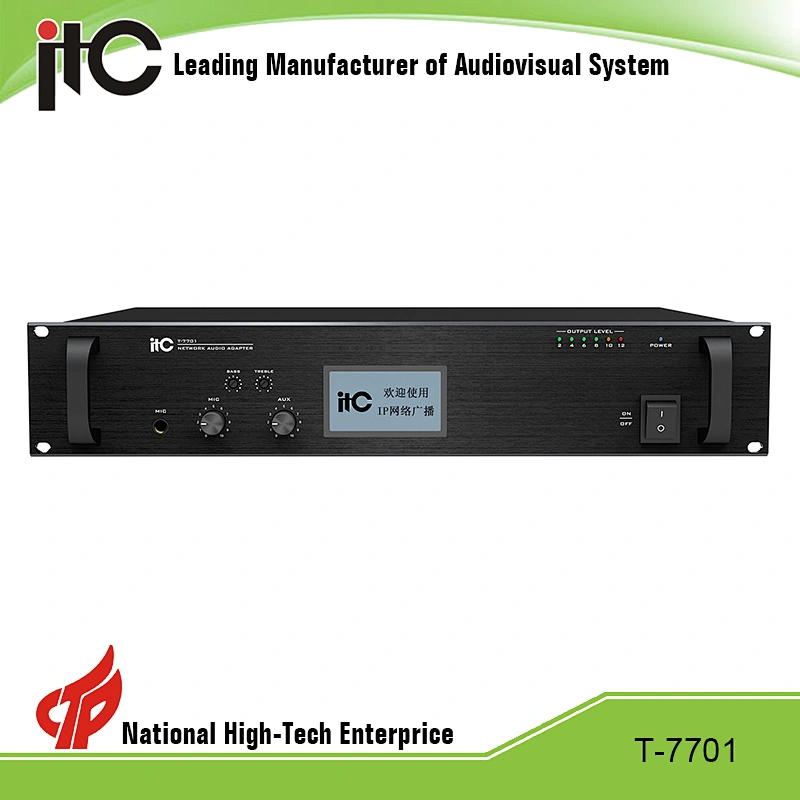

ITC T-7701 Economic Rack Mount 100Mbps IP Network Audio Adapter

It could be installed in weak inter or sub-control room of public address management area. It could be connected to 2 sets of external power amplifier to do broadcast or local broadcast in multiple occasions, such as hall, passage, outdoor area, etc.

1) In standard 19’’ rack design; the black panel is in the material of alumina; sturdy handle; professional mechanical assembly process; the appearance looks really upscale;
2) With industrial 3.4’’ LCD to display the working state;
3) Using technique of embedded MCU and DSP sound processing; high speed industrial level microcontroller; the boost time is less than 1s;
4) With internal 1 channel IP network audio decoder module, which supports protocol of TCP/IP, UDP, IGMP (Grouping Protocol) to realize 16 bit stereo audio transmission on IP network;
5) With 1 AUX and 1 Mic input; they have independent volume control and treble/bass control; support function of offline local paging;
6) With 1 EMC input, which has highest priority;
7) With 2 audio AUX output to connect external power amplifier; in type of standard RCA; the connection is really convenient;
8) 1 3-wire forced switching output, no need forced switching power; adaptive to 4-wire fire alarm forced switching output, which need external forced switching power at DC 24V;
9) With internal intelligent power management system; when no music signal or paging signal, the power of output is cut off automatically; when the signal input, it turns on the power of output according to the program written in the software;
10) Built-in 3 level priority setting:
11) EMC signal has the highest priority;
12) Mic, AUX and IP network music signal have the second priority;
13) The priority of Mic is higher than AUX and IP network music signal;
14) Support the pre-reduce function for the mute; support the preset function for the background music; with state indicators to display the electrical level, protection, standby, etc; support the function of authorized operation management and the account is set and managed by the server uniformly;
15) Support DHCP; adaptive to multiple network structure, such as router, switcher, bridge & gateway, modem, internet, 2G, 3G, 4G, grouping broadcasting, unicast, etc;
16) Using the design concept of common network; it’s easy to be expanded without geographical location limit and it could be installed conveniently.

ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
