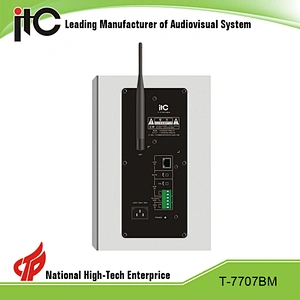

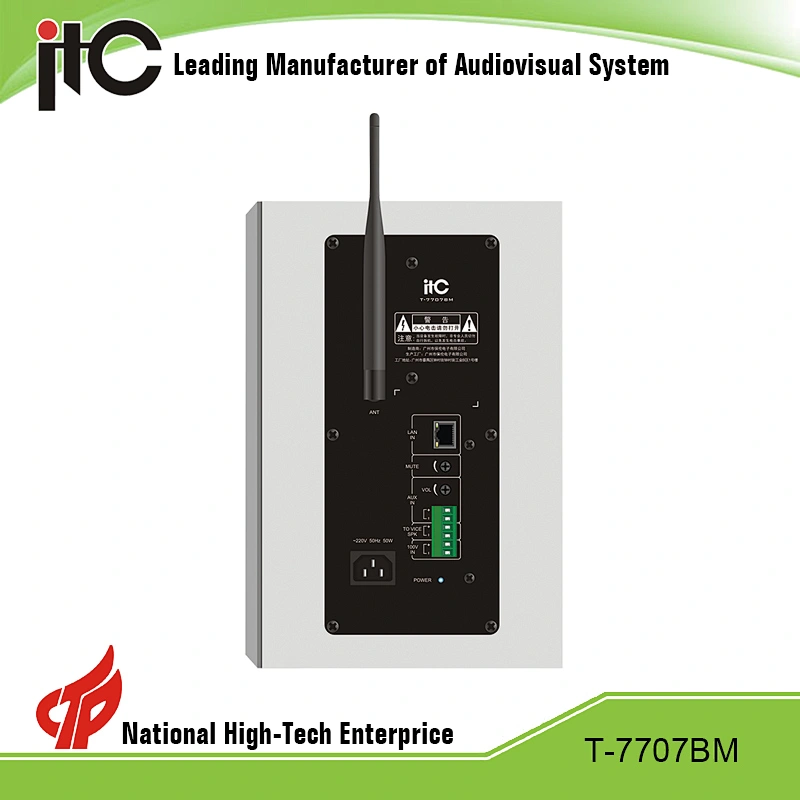

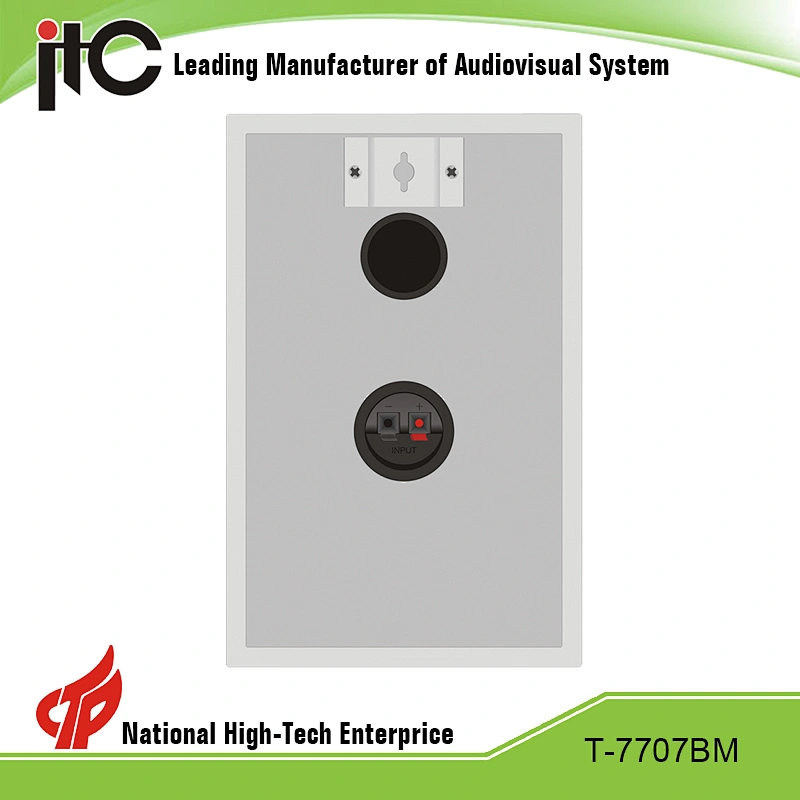

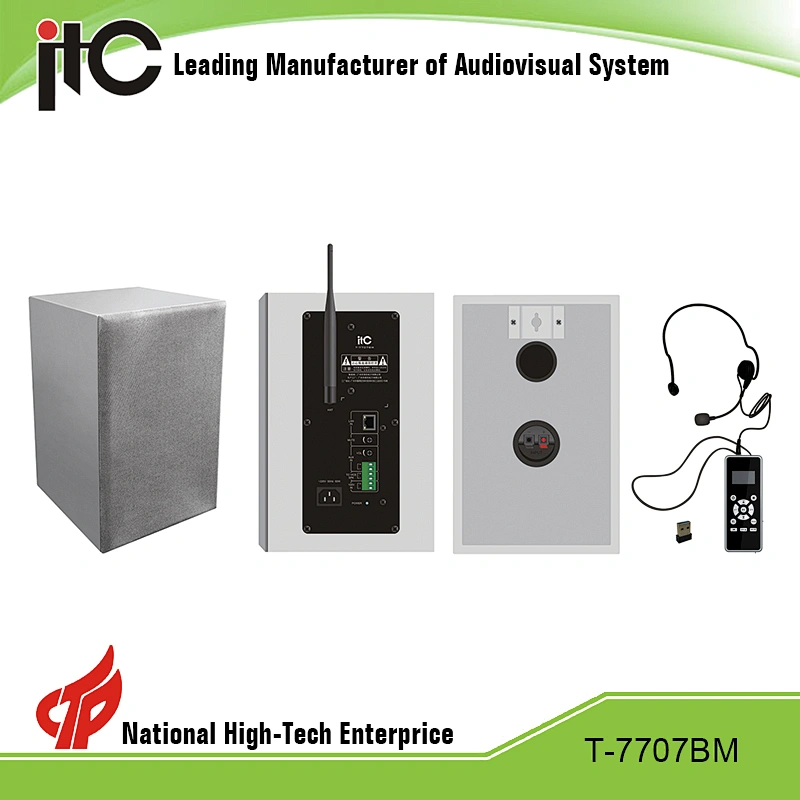

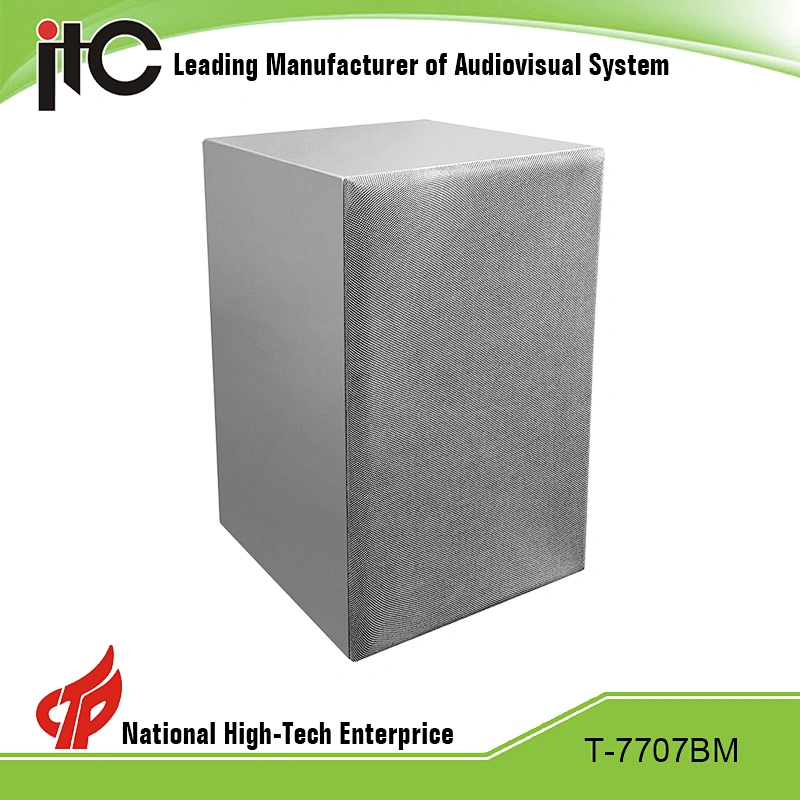

ITC T-7707BM 20W 8ohm Internal TF Card Recording IP PoE Speaker with Wireless Mic
ITC T-7707BM 20W 8ohm Internal TF Card Recording IP PoE Speaker with Wireless Mic
ITC T-7707BM 20W 8ohm Internal TF Card Recording IP PoE Speaker with Wireless Mic
ITC T-7707BM 20W 8ohm Internal TF Card Recording IP PoE Speaker with Wireless Mic
ITC T-7707BM 20W 8ohm Internal TF Card Recording IP PoE Speaker with Wireless Mic
ITC T-7707BM 20W 8ohm Internal TF Card Recording IP PoE Speaker with Wireless Mic
ITC T-7707BM 20W 8ohm Internal TF Card Recording IP PoE Speaker with Wireless Mic
ITC T-7707BM 20W 8ohm Internal TF Card Recording IP PoE Speaker with Wireless Mic
ITC T-7707BM 20W 8ohm Internal TF Card Recording IP PoE Speaker with Wireless Mic

ITC T-7707BM 20W 8ohm Internal TF Card Recording IP PoE Speaker with Wireless Mic

Model NO.
T-7707BM
Delivery
FOB
Minimum order quantity
1 piece
Supply Ability
50 piece / Week
Country of Origin
Guangzhou, Shenzhen and HK
Quantity:
  • Place of Origin:CN;GUA
  • Model Number:T-7707BM
  • Brand Name:ITC
  • Network Interface:Standard RJ45
  • Supported Protocol:TCP/IP, UDP, IGMP (multicast)
  • Audio Format:MP3/MP2
  • Sampling Rate:8K to 48KHz
  • Transmission Speed:100Mbps
  • Audio Type:16Bit CD Level
  • Impedance:8Ω
  • Rated Power:20W x2
  • THD:≤1%
  • Frequency Response:80Hz to 16KHz +1dB/-3dB
Application

Suitable for network program play and local public address in various occasion, such as normal classroom, multimedia room, conference room, office, etc. Via network digital transmission, it realizes functions of scheduled BGM playing, selected time ringing, etc.

Feature

1) Support 15 intelligent frequency hopping; powerful anti-interference;

2) 3Mbps GFSK modulation mode;

3) Auto paring when it's turned on; the speaker in the close distance is preferred, while far and near identification distance is from 2m to 3m; prompt tone when paired; when indoor, the paring distance is up to 30m in straight and without obstacle;

4) Equipped 2.4G microphone with the function of charging management; support charging and working at the same time; charging port uses Micro USB; and the screen displays the electricity and charging status;

5) The 2.4G microphone could be connected with external microphone; MP3 and microphone have independent volume control;

6) The 2.4G microphone is with recharging lithium battery of 3.7V/960mAH. When fully charged, it works continuously for 6 hours;

7) The microphone is with TF slot to read MP3; it is also with laser pen and with the function of page turning for PPT;

8) With recording function for MIC signal and to store it into TF card which could be playback selectively;

9) All in 1 design; integrated with network signal decoder, digital power amplifier and speaker;

10) With Hifi speaker and 20W x2 power amplifier with output at 8Ω

11) With audio-on-demand collection module to realize real time signal collection function;

12) Support stereo Line input with volume control;

13) With output to be connected with external 20W speaker at constant impedance;

14) Connected to the Ethernet directly;

Technical Parameters
Model
T-7707BM
Network Interface
Standard RJ45
Supported Protocol
TCP/IP, UDP, IGMP (multicast)
Audio Format
MP3/MP2
Sampling Rate
8K to 48KHz
Transmission Speed
100Mbps
Audio Type
16Bit CD Level
Impedance & Rated Power of Internal Speaker
8Ω, 20W x2
THD
≤1%
Frequency Response
80Hz to 16KHz +1dB/-3dB
SNR
>65dB
Working Temp.
5℃ to 40℃
Working Relative Humidity
20% to 80%, no condensing
Power Consumption
≤50W
Power Supply
AC 110V/60Hz to AC 230V/50Hz
Dimension
280x180x180mm
NW
6Kg
