- Place of Origin:CN;GUA
- Use:Home Theatre
- Model Number:T-7707
- Brand Name:ITC
- Type:Active
- Channels:2 (2.0)
- Special Feature:Portable
- Use:Public Address
- Network Interface:Standard RJ45
- Supported Protocol:TCP/IP, UDP, IGMP (multicast)
- Audio Format:MP3/MP2
- Sampling Rate:8K to 48KHz
- Transmission Speed:100Mbps
- Audio Type:16Bit CD Level
- Impedance:8Ω
- Rated Power:20W x2
- THD:≤1%
- Frequency Response:80Hz to 16KHz +1dB/-3dB

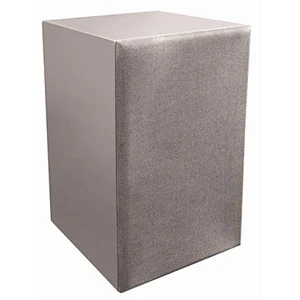

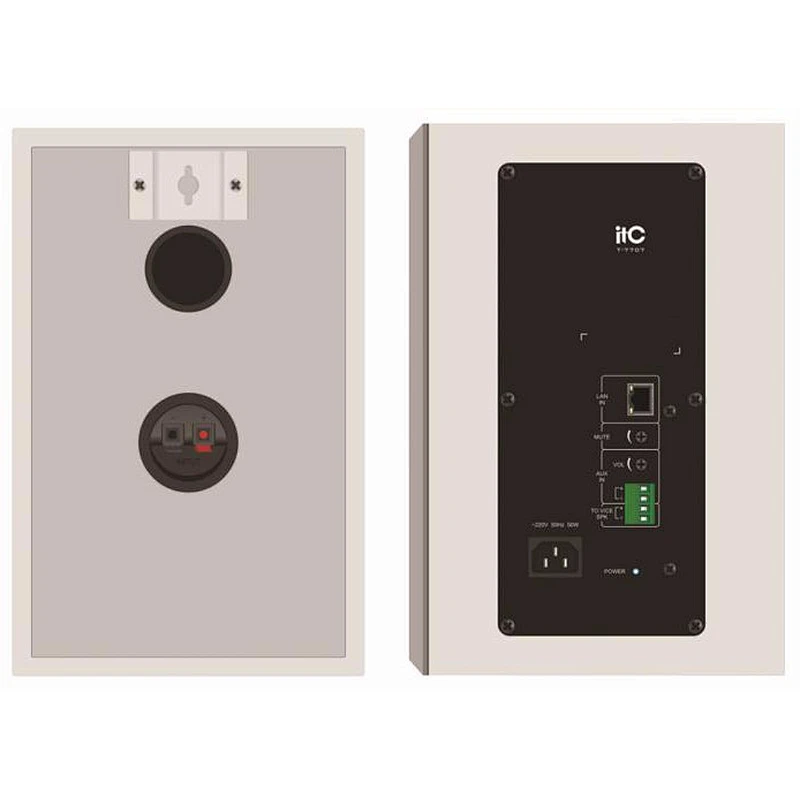

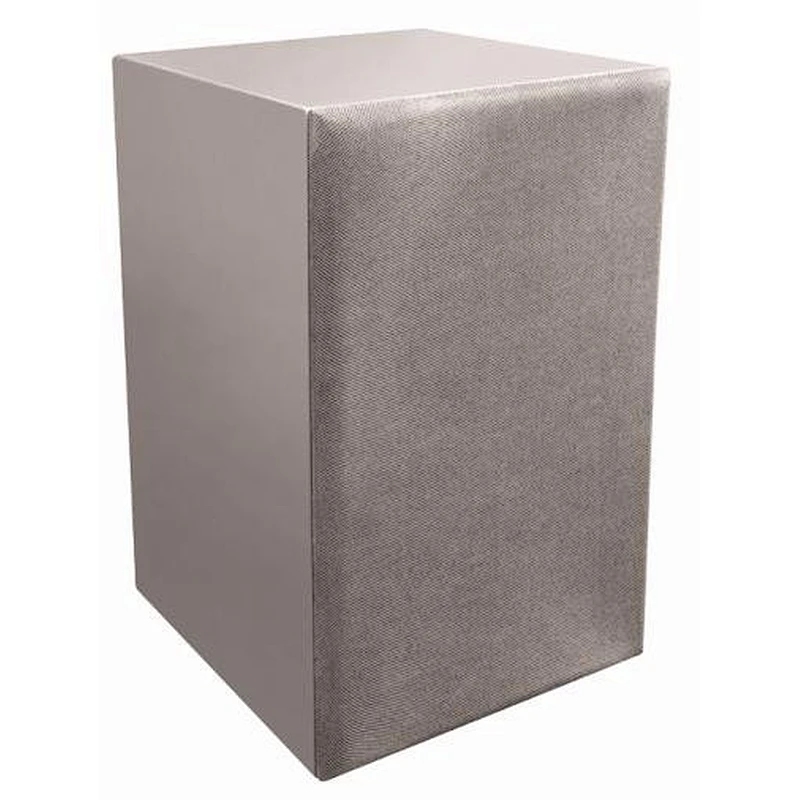

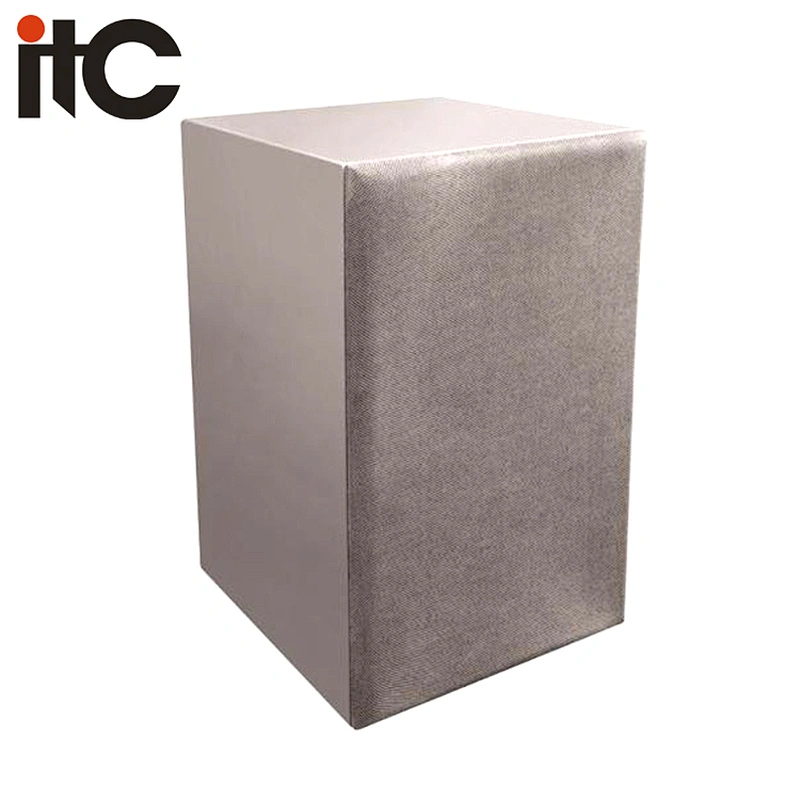

ITC T-7707 IP Multimedia Subwoofer Speaker System PA Wall Mount IP Active Speaker
Your Preferred Choice for Economical PA System
Features
* Professional integration wall mounted design, the speaker case meet sound resonance principle design, with elegant and beautiful appearance.
* Adopt embedded computer and DSP audio processing technology, high speed industrial SCM
system chips, to ensure the start-up time is less than 1 second.
* Build-in one network hardware audio decoding module, it supports TCP/IP, UDP, IGMP(multicast protocol), to realize the network transfer audio signal of 16-bit CD quality.
* Build-in 2 channel digital amplifier 2x10W, 1 channel to connect main speaker, the other connect assistant speaker to fulfill smooth and strong sound quality, with network volume setting.
* With 1 AUX input, independent volume control, support offline local paging function. Support mute volume preset and background music mix output preset.
* Build-in 2 priority settings:
1) Network voice alarm is prior to AUX and Network BGM.
2) AUX is prior to Network BGM.
* Support DHCP, compatible with Router, PABX, bridge gateway, modem, intelnet,2G,3G,4G, multicast, unicast and any other network construction.
* Easy extension, no limit for geographical location, no need additional management equipment, share public network to avoid extra cabling for easy installation.
Model | T-7707 |
Network Interface | Standard RJ45 input |
Transmission Speed | 100Mbps |
Protocol Support | TCP/IP,UDP,IGMP(Multicast) |
Audio Format | MP3 |
Audio Mode | 16 bit CD quality |
Sampling Rate | 8K~48KHz |
AUX input sensitivity | 350mV (unbalanced) |
Frequency Response | 80Hz~16KHz +1/-3dB |
Rated Power | 2x20W |
THD | ≤1% |
SNR | >65dB |
Power Consumption | <50W |
Circuit Protection | Overload, short circuit protection |
Operating Temperature | 5℃~40℃ |
Operating Humidity | 20%~80% relative humidity, no condensation |
Operating Power Supply | ~190-240V 50/60Hz |
Dimension | 190x180x280mm |
Net Weight | 3Kg |
System Diagram
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
