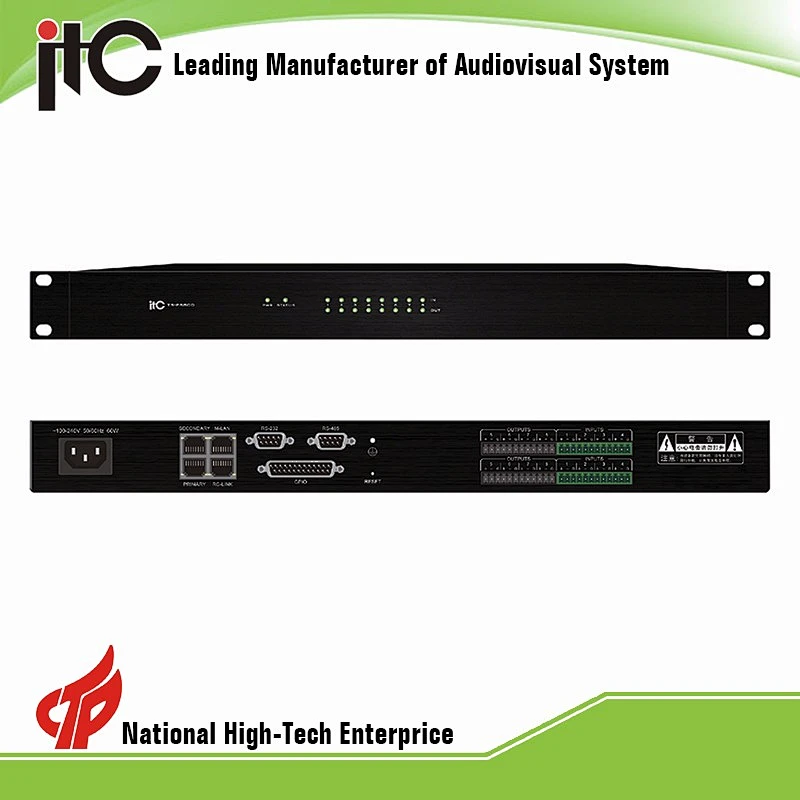

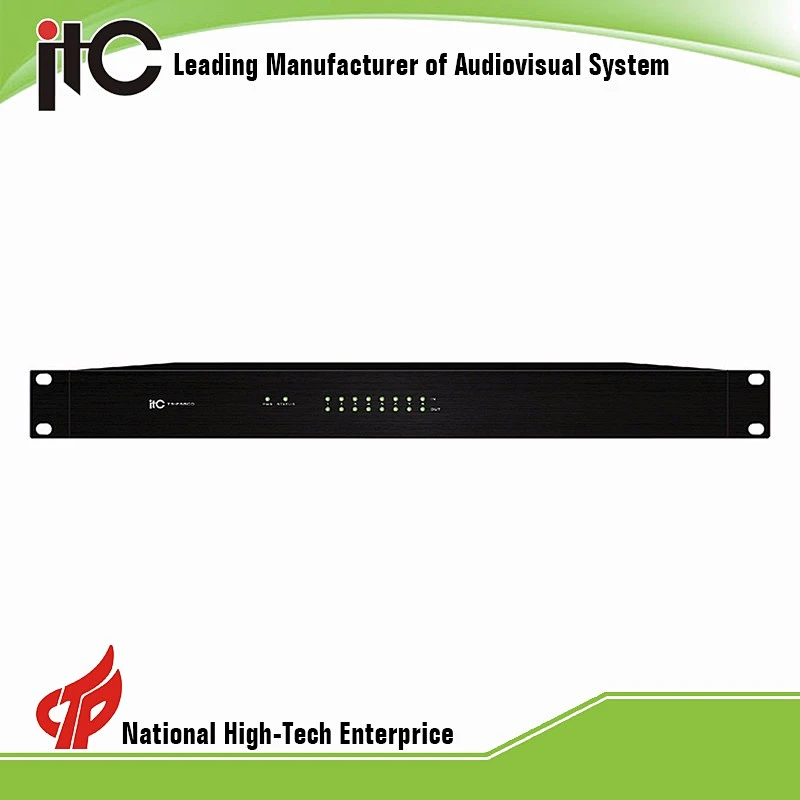

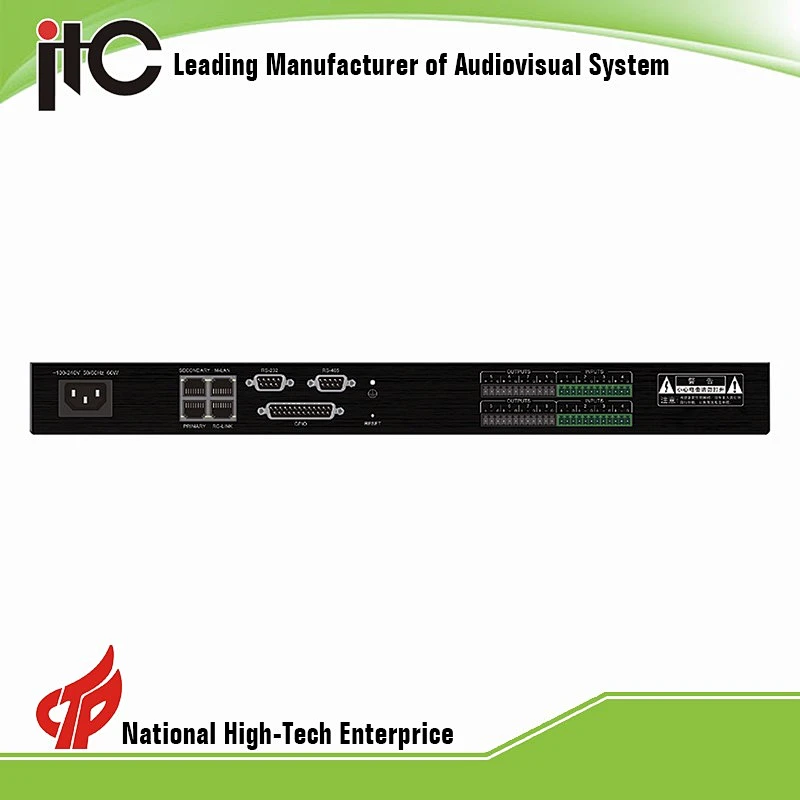

TS-P880D 8 Input 8 Output DANTE Network Digital Sound Processor DSP

TS-P880D 8 Input 8 Output DANTE Network Digital Sound Processor DSP

Model NO.: TS-P880D
Delivery: FOB
Minimum order quantity: 10 units
Supply Ability: 20 units / Week
Country of Origin: Guangzhou, Shenzhen and HK

Quantity:

Product Description

Place of Origin:CN;GUA
Model Number:TS-P880D
Brand Name:ITC
Function of Input Channel:preamp, signal generator, expander, compressor, 5 band parametric eq
Function of Output Channel:8 band parametric eq, delayer, frequency divider, HP & LP, limiter
Input Impedance:20KΩ balanced, 10KΩ balanced
Input Quantization:48KHz/24bit
A/D Dynamic Range:114dB
D/A Dynamic Range:114dB
Phantom Power:DC 48V
Frequency Response:20~20KHz (±0.5dB)
Dynamic Range:103dB THD<1% @ 1KHz
Input CMRR:105dBu@+20dBu, 60Hz

TS-P880D 8 Input and 8 Output DANTE Network Digital Sound Processor DSP

Feature

1) Built-in 2 high speed 64bit DSP TI L138 3648MIPS/2746MFLOPS, 48KHz A/D converter and D/A converter, sampling rate is up to 96KHz;

2) 8 channels balanced Mic/Line input, using organic thrum; 8 channels balanced output, using using organic thrum;
3) Support low delay DANTE network transmission protocol; 16 output and 16 input that are expandable;

4)Built- in adaptive feedback eliminate module for Mic (AFC), digital matrix Auto-mix module, and auto audio mixer module;

5)Support functions of grouping control, 8 group scene preset, SNMP/SMTP remote management and channel copy/paste/combined control;

6)Adaptive PoE interface for external control panel;

7GPIO programmable control interface, 8 channel logic input and 8 channel logic output;

8)RS-485 for camera control to realize auto tracking camera;

9)RS-232 is for external RS-232 devices, like video matrix or is for being controlled by the third-party RS-232 devices, such as AMX, Crestron, etc;

10)Operating software in English and Chinese that uses GUI, which could run on WindowsNT4.0/2000/XP/Windows7.

TS-P880D

Specifications

Model	TS-P880D
Function of Input Channel	preamp, signal generator, expander, compressor, 5 band parametric eq
Function of Output Channel	8 band parametric eq, delayer, frequency divider, HP & LP, limiter
Input Impedance	20KΩ balanced, 10KΩ balanced
Input Quantization	48KHz/24bit
A/D Dynamic Range	114dB
D/A Dynamic Range	114dB
Phantom Power	DC 48V
Frequency Response	20~20KHz (±0.5dB)
Dynamic Range	103dB THD<1% @ 1KHz
Input CMRR	105dBu@+20dBu, 60Hz
THD	≤0.0056% @1KHz, +4dBu
Channel Isolation	112dB
Background Noise	-80dBA
SNR	103.7dB
Max. Input Gain	54dB
Output Impedance	100 ohm
Max Output Level	20dBu
Output Quantization	40KHz/24bit
Power Supply	AC 110V/60Hz to AC 230V/50Hz
Working Temp.	0℃~40℃
Power Consumption	60W
Dimension (LxMxH)		484x260x44mm
N.W.		3Kg
