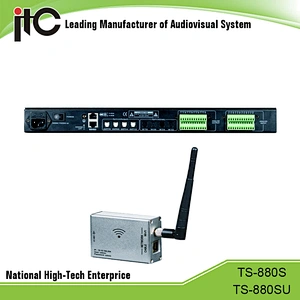

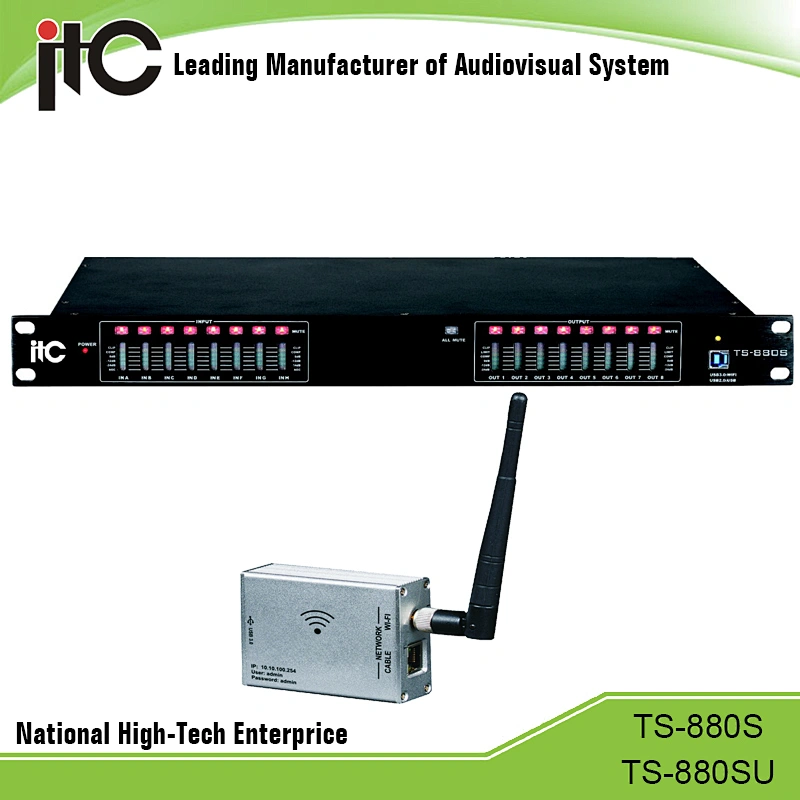

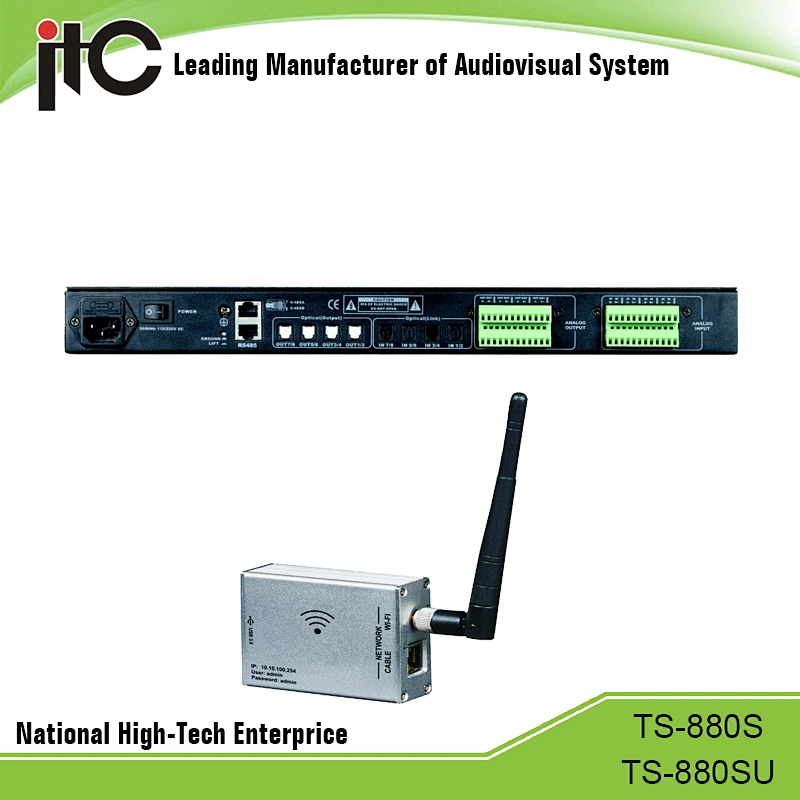

ITC TS-880S Series 96KHz 32Bit DSP Support Optical Fiber Audio Matrixs Switcher

ITC TS-880S Series 96KHz 32Bit DSP Support Optical Fiber Audio Matrixs Switcher

1) 96KHz sampling frequency, 32-bit DPS processor, 24-bit A/D converter and D A converter;

2) 8 channel hot swapping input, 4 channel stereo optical fiber input (each group of digital port transmits 2 channel audio signal);

3) 8 channel hot swapping output, 4 channel stereo optical fiber output (each group of digital port transmits 2 channel audio signal);

4) Each input/output has settings for delay, phase and mute, the input distance is up to 1Km;

5) Each output channel could select different input channel or any combination of input channels;

6) Input has 8 band full parametric equalizer (optional parameter, treble, bass), output has 9 band full parametric equalizer (optional parameter, treble, bass), 1 high-pass filter, 1 low-pass filter, and they have 7 kinds of slope and 3 different modes;

7) Each input channel could be set the compression ratio independently, each output channel could be set the limiter independently;

8) The device could be connected with the computer or mobile computer via USB, WIFI, RS485 and Internet;

9) One machine provides with 30 sets of equipment data storage, and the devices data can be copy/paste between devices via software on the computer;

10) Connected with central controller via RS-485 to realize main parameter modify and call;

11)Cascade via optical fiber interface to expand input channel.

Converter to Network

It is the communication tool suitable for audio Processor. Media Matrix and other machines connected to the network.
