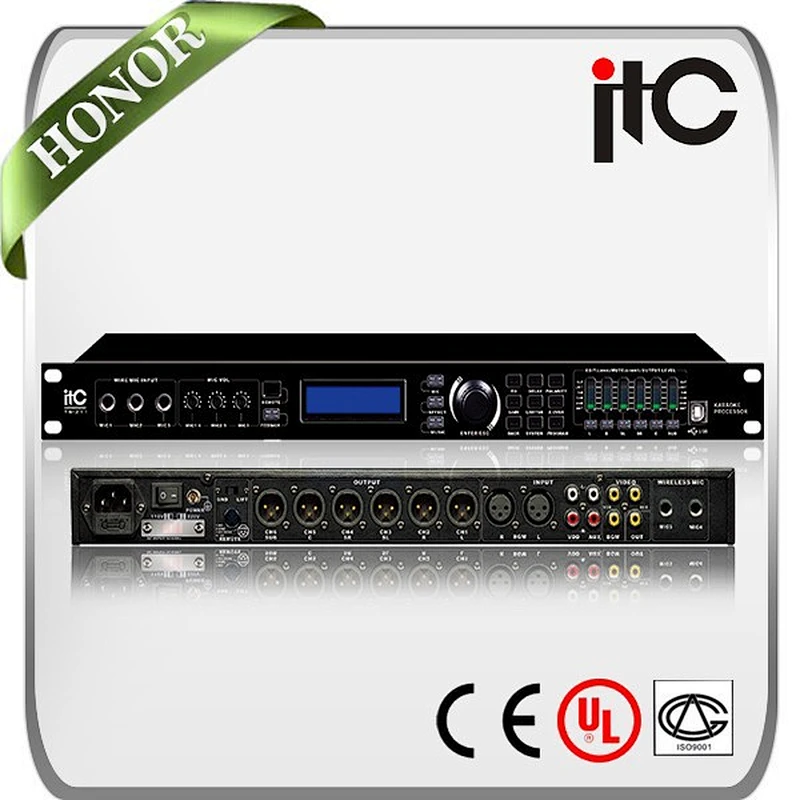

TS-211 5.1 Channel Built-in DSP Digital Sound Processor

Model NO.: TS-211
Delivery: FOB
Minimum order quantity: 100 units
Supply Ability: 1000 units / Week
Country of Origin: Guangzhou, Shenzhen & HK

Quantity:

Product Description

Place of Origin:CN;GUA
Model Number:TS-211
Brand Name:ITC
Input impedance:20K ohm
Output impedance:100 ohm
PC port:One USB Com Port on front panel
CMRR:>70dB(1KHz)
Input range:≤+25db
Frequency response:20Hz-20KHz(-0.5db)
SNR:>110db
THD:<0.01% O
Crosstalk of channels:>80db(1KHz)
Type:Active

TS-211 5.1 Channel Built-in DSP Digital Sound Processor

Product Description

Product Description.jpg TS-211

Model	TS-211
Input channel jacks	3 front 1 /4"phono inputs, 2 pairs of RCA inputs , 1 pair of female XLR, 1 against 3 RCA Video Inputs, 3 groups with 5 channel mic input.
Output channel jacks	Kp23+: 3.1 channel male-output; Kp24: 4 channel male-output: KP25+: 5.1 channel male output.
Input impedance	Balanced: 20KΩ.
Output impedance	Balanced: 100Ω.
PC port	One USB Com Port on front panel
CMRR	>70dB(1KHz)
Input range	≤+25db
Frequency response	20Hz-20KHz(-0.5db)
S/N R	>110db
THD	<0.01% OUTPUT=0db/1KHz
Crosstalk of channels	>80db(1KHz)
Functions of input channels
Input mute	Each channel has independent mute control.
Input delay Input polarity	Each channel has independent delay control; range: 0—30ms, step-over @1ms.
Input delay Input polarity	Same phase (+/+) or reversed phase (+/-).
Input EQ	Music and mic inputs come with 9 bands of individuals parametric EQ. Central frequency point: 20Hz to 20KHz, Bandwidth: 0.01oct to 3oct, Step-over is 0.01oct.
Input gain	Default frequency: EQ140Hz, EQ280Hz, EQ3160Hz, EQ4317Hz, EQ5632Hz, EQ6126Hz, EQ72515Hz, EQ85018Hz, EQ910KHz. Also, High-cut and Low Cut Filter is added.
Input gain	Both music and mic have independent gain control from 0% -100%.
Limiter	Both music and mic have independent limiter control, -30db to +20dB, stepover,0.1db.
Feedback	Mic comes with 4-levels anti-feedback function
Functions of output channels
Output mute	Each channel has independent mute control.
Output gain	Each channel has independent gain control. Adjustable range 0%-100%, step-over 1% 0.5dB.
Output delay	Each channel has independent delay control, range: 0—1000ms,step-over 21us@<10ms; step-over 84us@10-20ms; step-over:0.5ms@>20ms.
Output polarity	Same phase (+/+) or reversed phase (+/-).
Crossover	Each channel can set up LPF and HPF independently, with adjustable parameters: Filter types: Linkwitz-Riley/Besse/Butterworth.Frequency turning point: 20Hz-20KHz,
Crossover	239 total frequency points, decay of slope: 12db/oct, 18db/oct, 24db/oct, 48dB/oct.
Limiter	Each channel can set up limiters independently (all with adjustable parameters): Threshold value: -20db to +20db. Step-over: 0.5dBu@starting time: 0.3ms-100ms,
Limiter	step-over<1ms @0.1ms, Step-over>1ms@1ms.
Output EQ	Each output channel can be set up with 7 bands of individual EQ. PEQ and GEQ modes are both present . Under PEQ, the adjustable parameters are :LO-EQ1 (bass
	boost or low cut), H1-EQ15 (high boost or high damp) are the frequency points, all adjustable. Slope options are 12dB/oct, 24dB/oct, 36dB/oct and 48Db/oct. Others
	option are: 13-bands of parametric EQ. There are total of 239 frequency points. Bandwidth: 0.01oct-3oct, step-over is 0.05oct. Gain: -40db to +20db, step-ver is
	0.1dB. When set as GEQ, the functions are the same as when set as PEQ.
Effects processor	1M of Memory, includes 3 bands of parametric EQ.
Processor	96KHz sampling frequency, 32-bit floating-point DSP.
Display	Resolution of 144x32 character LCD and 6-segment LED display for accurate digital input and output level meter, mute and edit status
Power	≤25W.
Power supply	AC110V/220V 50/60Hz.
Product dimension(W×D×H)	482×200×44mm.
Net weight	3.75kg.
Shipping dimension(W×D×H)	1 piece: 562x294x98mm/0.0162m3 6 pieces: 576X308X612mm/0.1123m3
Gross weight	1 piece: 4.7(kg) 1 piece: 4.7(kg)

Feature

* 96k Hz sampling frequency, 24-bit A/D and D/A converter, 32-bit DSP processor.

* 3 1/ 4"inputs with automatic audio signal detection, providing groups of five mic input, standard and 5.1 channel output.

* USB cable provided for connection to PC. Also provided is a remote control (infrared).

* Directly to use the function keys on front panel or Connecting with PC to operate the device.

* 10 typed of storable user programs are present (with 10 factory-presets downloaded from the factory).

* Included is a parameter lock function (with password) in order to avoid unwanted ot unauthorized changes to settings.

* Each output channel comes with 7 bands of individual parametric EQ (including a high-pass and low-pass filter, 4 kinds of slopes and an adjustable gain (-30db to +15db).

* LCD screen and a 7 band-LED digital level meter (shows status of input, output, mute and edit).

* Delay ,phase-control and mute adjusting are available for each input and output channel. The delay offer a maximum of 60ms.

* An adjustable effects channel, microphone-volume, background-music volume are present.

* Microphone channels come with 4 levels of anti-feedback functions. Both microphone and music signals include a noise gate.

* Special-effects come with 3-bands parametric EQ .The ratios between echo & reverb can be adjusted.
