- Place of Origin:CN;GUA
- Model Number:TS-P881D
- Brand Name:ITC
- Programmable LED:17
- Programmable buttons:13
- Control Interface:2
- MIC Interface:1
- Control protocol:TCP/IP
- Address setting mode:TCP/IP
- Interface:RJ45
- Color:Silver, black
- Material:Metal sandblasting
- Dimension:202 x 114mm

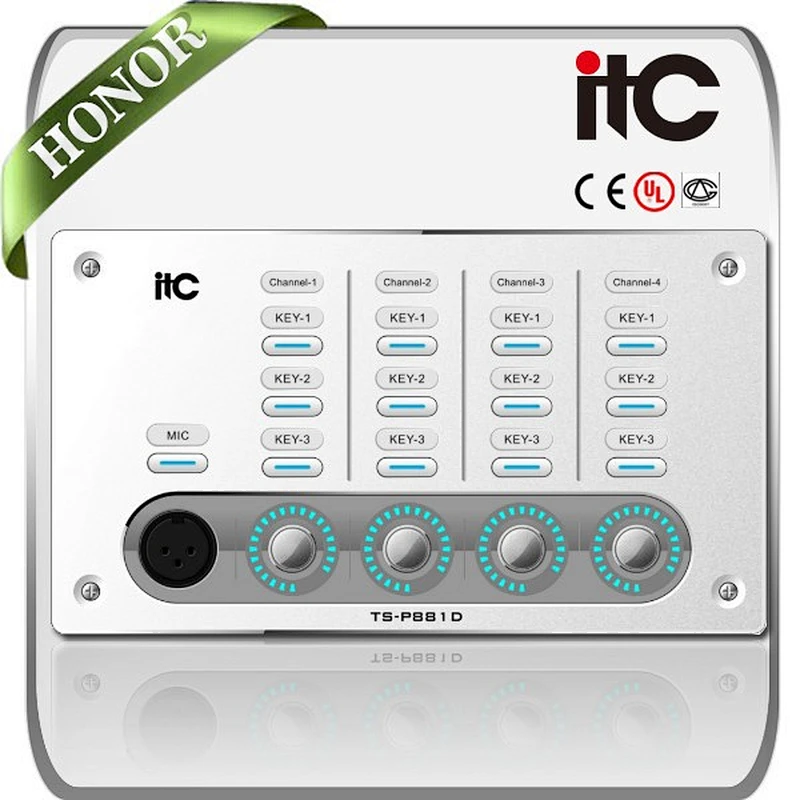

ITC TS-P881D IP Network Professional Audio System Programmable Audio Control Panel
ITC TS-P881D IP Network Professional Audio System Programmable Audio Control Panel
Control panel adopts standard TCP / IP Network Control Protocol and advanced POE power supply or an external power supply, support multiple control panel like"daisy chain"and"star"connection way. Software operation platform adopts a personalized graphical programming module, wizard -style programming, available automatic define the control function of any control parts (LED, knobs, faders, buttons, etc.) On board, greatly increase the flexibility of the use of panel. It will make the system more cost-effective through the control panel.
ITC TS-P881D IP Network Professional Audio System Programmable Audio Control Panel
* Comes with 1 XLR MIC jack, can input balanced MIC signal, can customize the processor to any output channel.
* Comes with 13 programming buttons can custom the button's control function automatically.
* Comes with 4 programming buttons can custom any channel's volume control function automatically.
* Adopt standard TCP / IP Network Control Protocol,can set any qty of panel.
* Adopt standard CAT 5 cable connection, multiple control panel like"daisy chain"and "star"connection way.
* Support POE power supply or an external DC48V power supply.
ITC TS-P881D IP Network Professional Audio System Programmable Audio Control Panel
Model | TS-P881D |
Programmable LED | 17(12 x double color LED+4 group single circle+single color LED) |
Programmable buttons | 13 |
Control Interface | 2 |
MIC Interface | 1 |
Control protocol | Standard TCP/IP |
Address setting mode | TCP/IP |
Interface type | Standard RJ45 network connector (CAT5 cable) |
Color | Silver, black |
Material | Metal sandblasting |
Dimension | 202 x 114mm |
Hole dimension | 186 x 97mm |
Power supply | POE(according to IEEE802.3AF-2003) or an external |
DC48V power supply |
