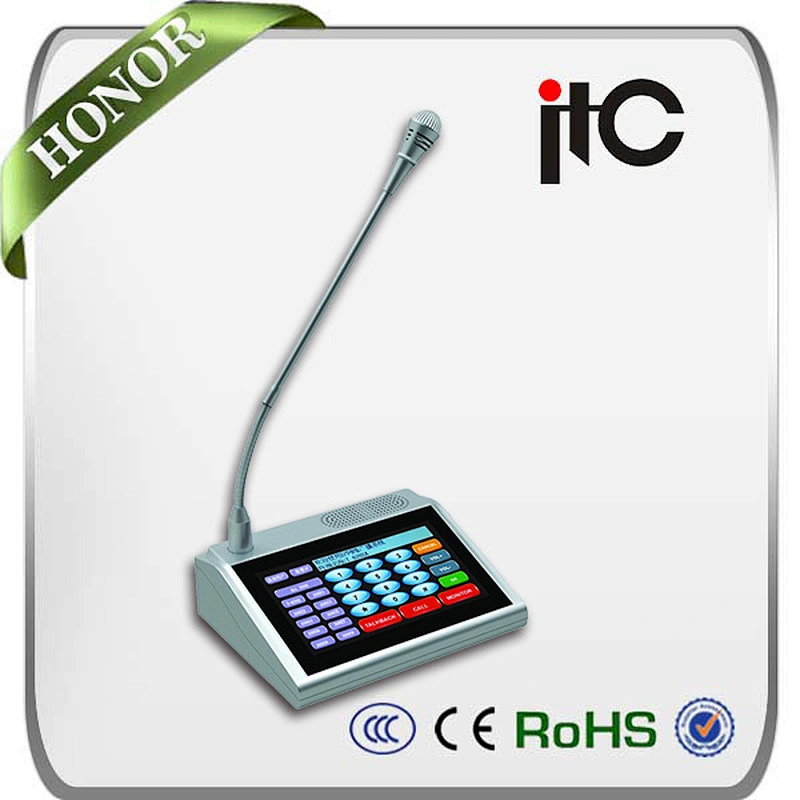

ITC T-6702A PA System TCP IP Microphone for Paging

Quantity:

ITC T-6702A PA System TCP IP Microphone for Paging

Your Preferred Choice for Economical PA System

Descriptions

ITC 67 Series IP Intercom System for Building

Mainly used in Bank, Prison, Mining, etc

System Introduction:

IP Public Address & Intercom System is to achieve broadcast, paging, voice alarm and duplex communication over LAN or WAN. It runs on common network.

Product List

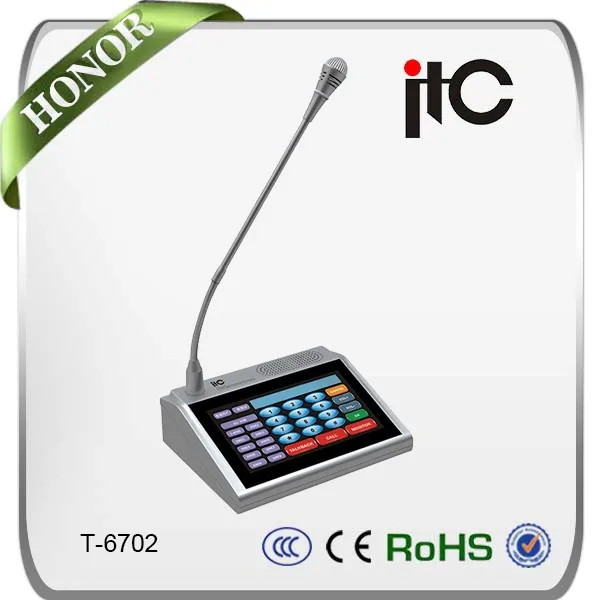

1)T-6702 IP Network Remote Paging Microphone

2)T-6701 Series IP Audio Terminal

3)T-67120 Series IP Amplifier

4) T-6223(A) IP Network Fire Alarm Receiver

5)T-6703 IP Waterproof Intercom Terminal

6)T-6732 IP Vandal Proof Intercom Terminal

Selling Points:

1. Delay is less than 0.1s

2. Low rate of network occupancy and each channel takes about 0.1Mbps

3. Frequency response is from 20Hz to 16KHz

4. Could work with the third-party system easily, such as CCTV, fire fighting system and so on

5. Strong capacity for load; Support more than 1000 network terminals working at the same time

General System Diagram

Specifications

Installed in the main controlling room, duty room or leader office, you can proceed the one-way

broadcast (to point, partition or all zones), and full intercom.

Model	T-6702
Network Input	Standard RJ45
Communication Protocol	TCP/IP, UDP, IGMP
Audio Format	MP3/MP2
Sampling Rate	8K~48KHz
Transmission Speed	100Mbps
Audio Mode	16 digit stereo CD sound quality
Frequency Response	80Hz~16KHz
T.H.D.	≤1%
S/N Ratio	>70dB
Built-in monitor speaker	4Ω, 2W
Aux Input	350mV Industry-standard voltage wire terminals
Aux Output	1000mV Industry-standard voltage wire terminals
Aux Output Impedance	470Ω
Mic impedance	10mV
Working temp	5℃ ~ 40℃
Humidity	20%~80% Relative humidity, without condensation
Power Consumption	≤10W
Power Supply	DC 24V
Dimensions	200x145x48.5mm
Weight	1.40Kg
