- Place of Origin:CN;GUA
- Model Number:T-6705(D)
- Brand Name:ITC
- Network Interface:Standard RJ45 input
- Audio Format:TCP/IP, UPP, IGMP
- Sampling Rate:8K~48KHz
- Transfer Rate:10/100Mbps
- Audio Mode:16-bit stereo CD sound quality
- Output Frequency:20Hz~16KHz
- Harmonic Distortion:≤3%
- S/N Ratio:>70dB
- Auxiliary Line Input Level:400mV industry-standard voltage wire terminals
- Audio Output Level:775mV industry-standard voltage wire terminals

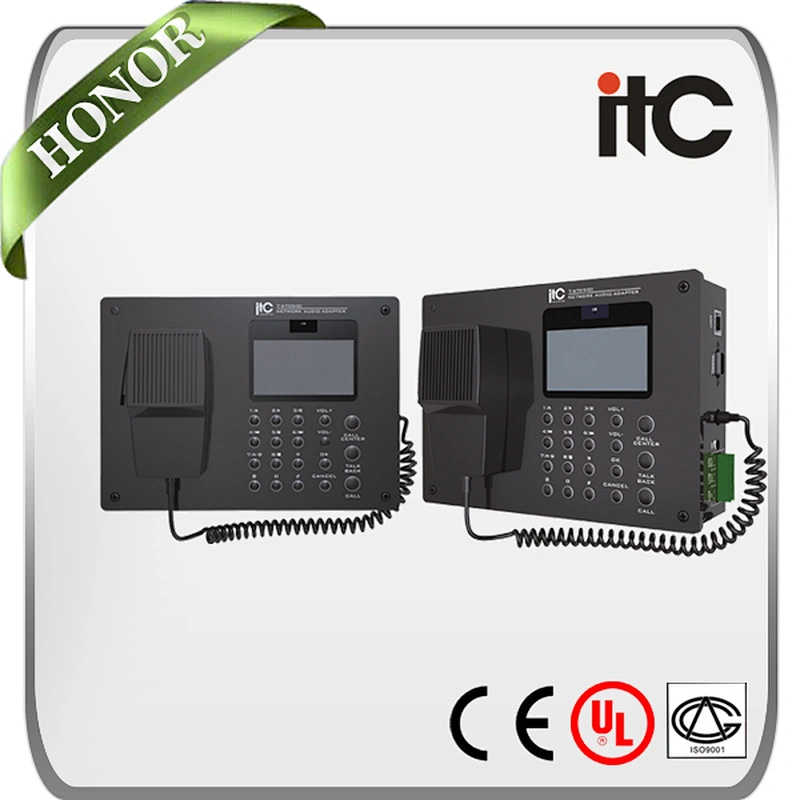

ITC T-6705(D) IP Network Intercom and PA with Encoder and Decoder
ITC T-6705(D) IP Network Intercom and PA with Encoder and Decoder
Control room where intercom and sound system is both required, it can be take as a intercom station tocall any zone, receive intercom call from intercom panel and serve as one IP amplifier to receive andbroadcast network sources. Moreover, it also have the basic PA system features: background musicsystem, zone paging system and voice alarm system highest priority broadcast.
ITC T-6705(D) IP Network Intercom and PA with Encoder and Decoder
* Wall-mount design with emergency intercom hand-clip microphone
* 3.4 inch LCD with user-friendly English display
* With numeric keys, function keys to call any terminal, easy and quick to operate.
* With two-way intercom, realizing 2-way intercom from IP terminals and IP terminal.
* Built-in 10W low impedance power amplifier for loading 4 loudspeaker
* Support hands-free calls and broadcast receiving.
* Support local microphone, line input, volume adjustment.
* Audio auxiliary output, external power amplifier expansion.
* With AC220V 10% AC power interface.
Model | T-6705(D) |
Network Interface | Standard RJ45 input |
Audio Format | TCP/IP, UPP, IGMP |
Audio Format | MP3/MP2 |
Sampling Rate | 8K~48KHz |
Transfer Rate | 10/100Mbps |
Audio Mode | 16-bit stereo CD sound quality |
Output Frequency | 20Hz~16KHz |
Harmonic Distortion | ≤3% |
S/N Ratio | >70dB |
Speaker Output Impedance and The Rated Power | 4 ohm, 1x10W industry-standard compression terminals |
Auxiliary Line Input Level | 400mV industry-standard voltage wire terminals |
Audio Output Level | 775mV industry-standard voltage wire terminals |
Audio Output Impedance | 1000ohm |
Mic Input | 10mV |
Operating Temperature | 5 °C~+40°C |
Operating Humidity | 10%~90% |
Power Consumption | ≤18W |
Power Supply | ~110V/60Hz or ~230V/50Hz |
Dimensions | 220x157x37mm |
Weight | 1.25Kg |
Quality?
Our products're applied to important event like Olympic Game Peking 2008, Asian Game Guangzhou 2010, etc.
Trustworthy?
We're not only popular supplier in China but has good reputation in the world.
In time?
We have the ability and we'll try our best to fulfill your demand.
Factory?
Welcome to NO.1 Building B Block Zhongcun Street Panyu Guangzhou China.
